The Strattos S2 is built around a light and responsive frame with a carbon fiber fork. It is the perfect bike for avid road cyclists, sportive regulars and everyday commuters. Ride all day, experience more.
Bike Archive

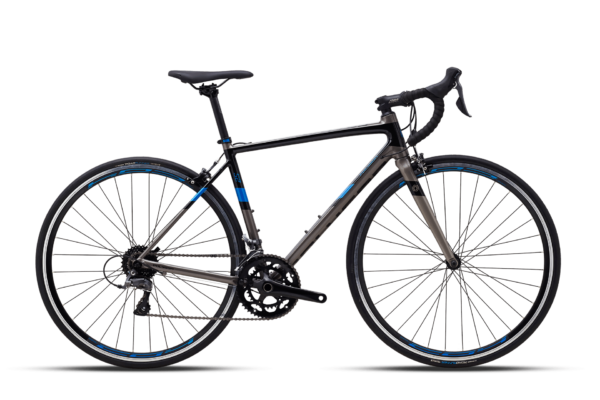

STRATTOS S2
STRATTOS S2 2020
-
502675
Specification
*Specifications, colors, and product availability are subject to change without prior notice.
-
Frameset
FramesetForkRear Shock
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTire
-
Brake
Brake Lever
-
Other
Frame Weight
Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 162-170 | 168-176 | 174-181 | 180-187 |
| Seat Tube Length (A) | 460 18.11 | 490 19.29 | 520 20.47 | 550 21.65 |
| Seat Tube Angle (B) | 74.5 2.93 | 74 2.91 | 73.5 2.89 | 73.5 2.89 |
| Effective Seat Tube Angle (C) | 74.5 2.93 | 74 2.91 | 73.5 2.89 | 73.5 2.89 |
| Head Tube Length (D) | 120 4.72 | 140 5.51 | 160 6.3 | 180 7.09 |
| Head Tube Angle (E) | 70.5 2.78 | 71 2.8 | 72 2.83 | 72 2.83 |
| Effective Top Tube (F) | 525 20.67 | 540 21.26 | 555.7 21.88 | 566.7 22.31 |
| Bb Height (G) | 268 10.55 | 268 10.55 | 268 10.55 | 268 10.55 |
| Bb Offset (H) | 75 2.95 | 75 2.95 | 75 2.95 | 75 2.95 |
| Chainstay Length (I) | 415 16.34 | 415 16.34 | 415 16.34 | 415 16.34 |
| Wheelbase (J) | 994.3 39.15 | 1001.1 39.41 | 1003.1 39.49 | 1014.6 39.94 |
| Frame Reach (K) | 381 15 | 385 15.16 | 389 15.31 | 394.3 15.52 |
| Frame Stack (L) | 520 20.47 | 540.5 21.28 | 563.1 22.17 | 582.1 22.92 |
| Standover Height (M) | 708 27.87 | 736 28.98 | 764 30.08 | 791 31.14 |
