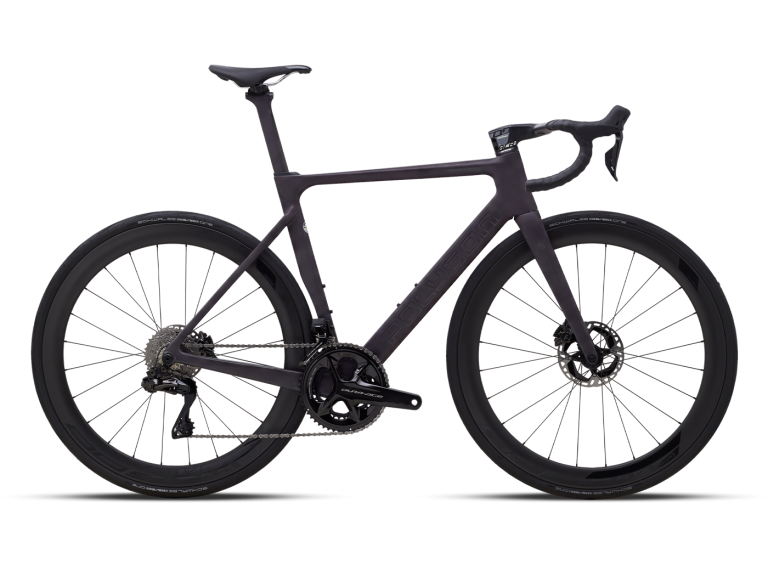

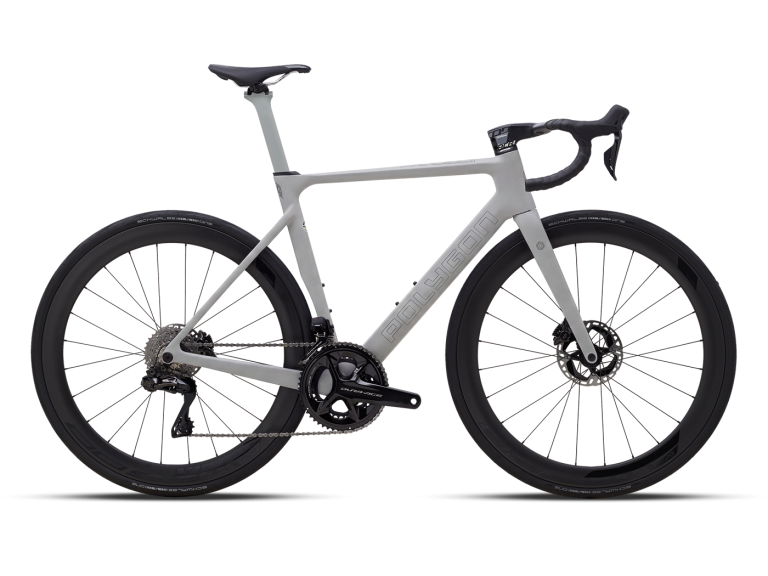

HELIOS A
HELIOS A: Built for Speed and Performance
Aero Road Race | ACX Carbon Frame | 12 Available Builds
The all-new Polygon HELIOS A is a UCI-approved carbon aero road bike designed for maximum speed and performance.
Developed with the UCI Continental Team, TSG, we've re-engineered the HELIOS to be 5.2 seconds faster than previous generations but also 150g lighter - offering the perfect balance of aerodynamics and climbing agility for a competitive edge on the road.
Our products:
- HELIOS A0 AXS
- HELIOS A9 Di2 POWERMETER
- HELIOS A9X ENTITY WR5 2025
- See more...
- HELIOS A9 Di2
- HELIOS A8 Di2 POWERMETER
- HELIOS A8 Di2
- HELIOS A8X 2025
- HELIOS A7 Di2
- HELIOS A7X 2025
- HELIOS A8 2025
- HELIOS A7 2025
- FRAMESET HELIOS A
PERFORMANCE ?
PERFORMANCE ?
Chasing for speed and against the wind, or fun Sunday club ride with friends around town; all you need is here. See more...
Features
-
Ultra-Lightweight 800g ACX Carbon Frame
The HELIOS A features a UCI-Approved ACX carbon layup, weighing a mere 800g. Engineered for competitive road racing, the frame utilizes truncated airfoil tube profiles to deliver a 31% reduction in drag compared to previous generations, ensuring you cut through the wind without the weight penalty of traditional aero bikes.
-
Aerospace-Inspired Truncated Airfoil Profiles
The HELIOS A taps into aerospace engineering by shaping the down tube, seatpost, and head tube into truncated airfoils. This design provides the aerodynamic efficiency of a full teardrop profile while remaining stable in unpredictable crosswinds and significantly lighter.
-
34mm Tyre Clearance
The HELIOS A has clearance for up to 34mm tyres. Running wider tyres at lower pressures increases your contact patch and lowers rolling resistance, providing a smoother, faster experience on rough or imperfect roads.
-
LINC Semi-Integrated Carbon Cockpit
The LINC component line offers the perfect middle ground: the aerodynamic gains of internal routing with the mechanical adjustability of a semi-integrated handlebar and stem. The frame is also versatile and is dual seatpost compatible. Use the included aero seatpost for racing or a standard 27.2mm round post (via adapter) for training and endurance rides.
Choose your series
Build Specs
| Kit |
HELIOS A0 AXS
|
HELIOS A9 Di2 POWERMETER
|
HELIOS A9X ENTITY WR5 2025
|
HELIOS A9 Di2
|
HELIOS A8 Di2 POWERMETER
|
HELIOS A8 Di2
|
HELIOS A8X 2025
|
HELIOS A7 Di2
|
HELIOS A7X 2025
|
HELIOS A8 2025
|
HELIOS A7 2025
|
FRAMESET HELIOS A
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Frame | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED |
| Fork | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED, TAPER 1-1/8" TO 1-1/2" | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED | ACX PERFORMANCE UCI APPROVED, TAPER 1-1/8" TO 1-1/2" | ACX PERFORMANCE UCI APPROVED, TAPER 1-1/8" TO 1-1/2" | ACX PERFORMANCE UCI APPROVED |
| Shifter | SRAM RED AXS E1, 2x12-SPEED | SHIMANO DURA-ACE Di2 ST-R9270, 2x12-SPEED | Shimano Dura Ace ST-R9270 Di2 12-Speed | SHIMANO DURA-ACE Di2 ST-R9270, 2x12-SPEED | SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED | SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED | SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED DCL | SHIMANO 105 Di2 ST-R7170, 2x12 SPEED | SHIMANO 105 Di2 ST-R7170, 2x12 SPEED BRIFTER | SHIMANO ULTEGRA ST-R8020, 2x11-SPEED DCL | SHIMANO 105 ST-R7020, 2x11-SPEED DCL | |
| Crank Set | SRAM RED E1 48/35T POWER METER | SHIMANO DURA-ACE FC-R9200P 52/36T POWER METER | Shimano Dura Ace FC-R9200-P 52-36t 170mm (XS,S,M) 172.5mm (L,XL) | SHIMANO DURA-ACE FC-R9200P 52/36T | SHIMANO ULTEGRA FC-R8100-P 52/36T POWERMETER | SHIMANO ULTEGRA FC-R8100 52/36T | SHIMANO ULTEGRA FC-R8100 52/36T, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL) | SHIMANO 105 FC-R7100 52/36T | SHIMANO FC-R7100, 50/34T CRANK ARM 170MM (XXS, XS, S, M) / 172.5MM (L, XL) | SHIMANO ULTEGRA FC-R8000 52/36T, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL) | SHIMANO 52/36T, CRANK ARM: 170mm (XXS, XS ,S,M) / 172.5mm (L,XL) | |
| Cassette | SRAM RED XG-1290 E1 10-33T XDR | SHIMANO DURA-ACE CS-R9200-12 11-34T | Shimano Dura Ace CS-R9200 12-Speed 11-34T | SHIMANO DURA-ACE CS-R9200-12 11-34T | SHIMANO ULTEGRA CS-R8101-12 11-34T | SHIMANO ULTEGRA CS-R8101-12 11-34T | SHIMANO ULTEGRA CS-R8100-12 11-34T | SHIMANO 105 CS-R7101-12 12-SPEED 11-34T | SHIMANO 105 CS-R7100-12 11-34T | SHIMANO ULTEGRA CS-R8000-11 11-34T | SHIMANO 105 CS-R7000-11 11-30T | |
| Rear Derailleur | SRAM RED AXS E1 DIRECT ATTACH | SHIMANO DURA-ACE Di2 RD-R9250 DIRECT ATTACH | Shimano Dura Ace Di2 RD-R9250 12-Speed DA | SHIMANO DURA-ACE Di2 RD-R9250 DIRECT ATTACH | SHIMANO ULTEGRA Di2 RD-R8150 DIRECT ATTACH | SHIMANO ULTEGRA Di2 RD-R8150 DIRECT ATTACH | SHIMANO ULTEGRA Di2 RD-R8150 DIRECT ATTACH | SHIMANO 105 Di2 RD-R7150 | SHIMANO 105 Di2 RD-R7150 | SHIMANO ULTEGRA RD-R8000-GS | SHIMANO 105 RD-R7000-SS DIRECT ATTACH | |
| Wheel Set | ZIPP 303 SW TUBELESS DISC | LINC ALPHA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED | ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED | LINC BETA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED | LINC BETA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED | LINC BETA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED | ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED | LINC BETA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED | ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED | ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED | ENTITY WR3 DISC (30mm) W/ TUBELESS TAPE INSTALLED | |
| Tire | GOODYEAR VECTOR R SW 700x30C | PIRELLI PZERO ROAD TLR 700x28C | SCHWALBE ONE ADDIX TLE 700x28C | PIRELLI PZERO ROAD TLR 700x28C | PIRELLI PZERO ROAD TLR 700x28C | PIRELLI PZERO ROAD TLR 700x28C | SCHWALBE ONE ADDIX TLE 700x28C | PIRELLI PZERO ROAD TLR 700x28C | SCHWALBE ONE ADDIX TLE 700x28C | SCHWALBE ONE ADDIX TLE 700x28C | SCHWALBE ONE ADDIX 700x28C | |
| Brake Lever | SRAM RED | SHIMANO DURA-ACE ST-R9270 | SHIMANO DURA-ACE ST-R9270 | SHIMANO DURA-ACE ST-R9270 | SHIMANO ULTEGRA ST-R8170 | SHIMANO ULTEGRA ST-R8170 | SHIMANO ULTEGRA HYDRAULIC DISC | SHIMANO 105 ST-R7170 | SHIMANO 105 ST-R7170 | SHIMANO ULTEGRA ST-R8020 | SHIMANO 105 ST-R7020 | |
| Brake Caliper | SRAM RED HYDRAULIC DISC | SHIMANO DURA-ACE HYDRAULIC DISC | SHIMANO DURA-ACE BR-R9270 | SHIMANO DURA-ACE HYDRAULIC DISC | SHIMANO ULTEGRA HYDRAULIC DISC | SHIMANO ULTEGRA HYDRAULIC DISC | SHIMANO ULTEGRA HYDRAULIC DISC | SHIMANO 105 HYDRAULIC DISC | SHIMANO 105 BR-R7170 | SHIMANO ULTEGRA BR-R8070 FLAT | SHIMANO 105 BR-R7070 FLAT | |
| Rotor | SRAM PACELINE X F:160mm / R:140mm CENTER LOCK | SHIMANO DURA-ACE CL900 F:160mm / R:140mm CENTER LOCK | SHIMANO DURA-ACE RT-MT900 F:160mm / R:140mm CENTER LOCK | SHIMANO DURA-ACE CL900 F:160mm / R:140mm CENTER LOCK | SHIMANO ULTEGRA CL800 F:160mm / R:140mm CENTER LOCK | SHIMANO ULTEGRA CL800 F:160mm / R:140mm CENTER LOCK | SHIMANO ULTEGRA HYDRAULIC DISC | SHIMANO SM-RT70 F:160mm / R:140mm CENTER LOCK | SHIMANO SM-RT70 F:160mm / R:140mm CL | SHIMANO SM-RT70 F:160mm / R:140mm CENTER LOCK | SHIMANO SM-RT70 F:160mm / R:140mm CENTER LOCK |
*Specifications, colors, and product availability are subject to change without prior notice.
