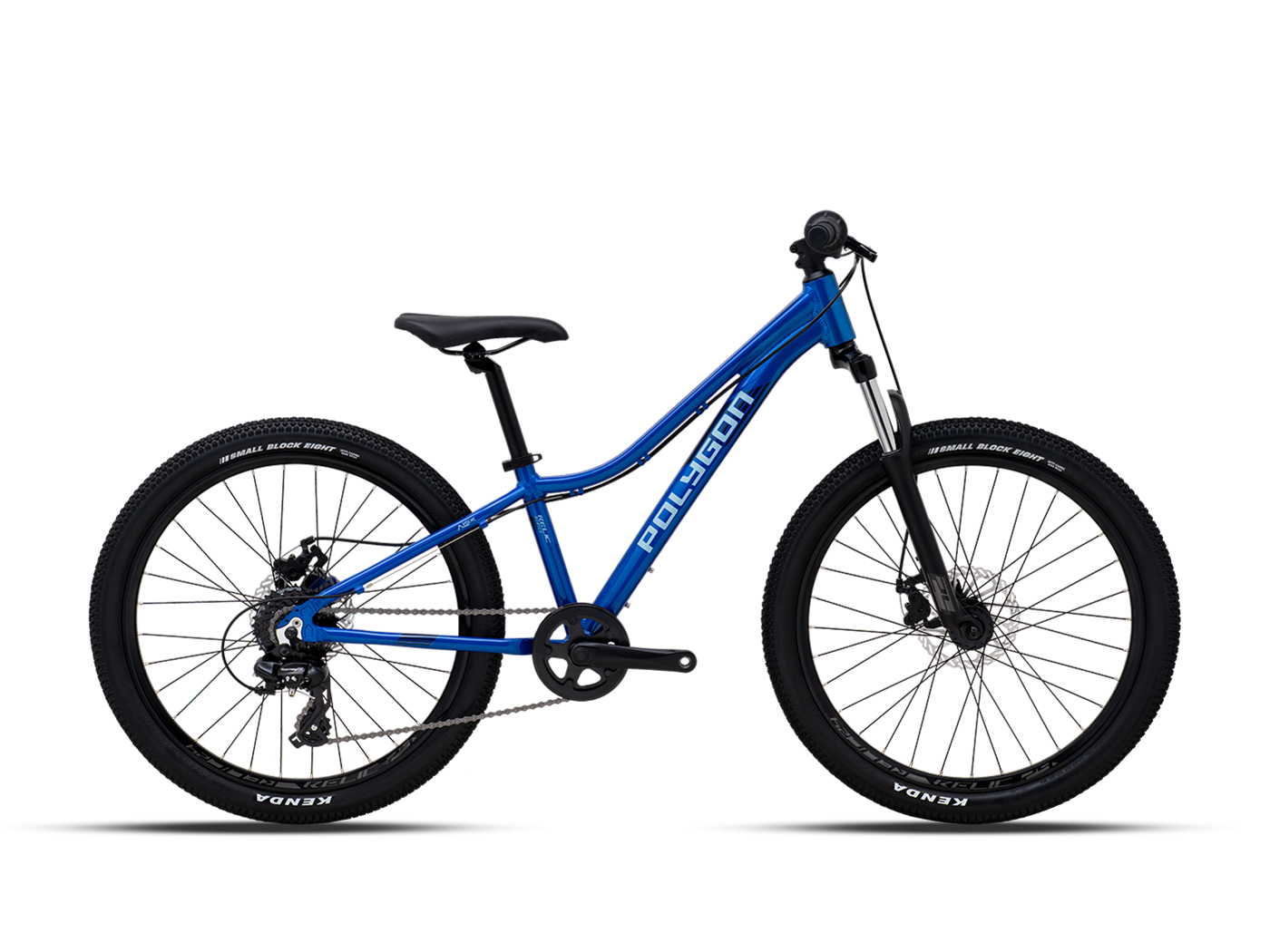

RELIC 24: Ride Everywhere
RELIC 24
Features
-
Proportional Youth Components
We’ve curated every detail, from shorter crank arms for easier pedaling to a narrower handlebar and reach-adjustable brake levers, ensuring that smaller hands and legs have total, effortless control.
-
Lightweight ALX Frame
Built with a low stand-over height and lightweight alloy, this frame is easy to hop on and off and even easier to carry by hand.
-
Simplified 1x Drivetrain
The 1x gear system is intuitive and easy to master, providing a wide range of gears while keeping the chain secure and the shifting crisp.
Specification
-
Frameset
FramesetForkSizeFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| All Sie | |
|---|---|
| Height (cm) | 127-142 |
| Seat Tube Length (A) | 300 11.81 |
| Seat Tube Angle (B) | 72 2.83 |
| Effective Seat Tube Angle (C) | 72 2.83 |
| Head Tube Length (D) | 100 3.94 |
| Head Tube Angle (E) | 70 2.76 |
| Effective Top Tube (F) | 526 20.71 |
| Bb Height (G) | 271 10.67 |
| Bb Offset (H) | 40 1.57 |
| Chainstay Length (I) | 425 16.73 |
| Wheelbase (J) | 998 39.29 |
| Frame Reach (K) | 343 13.5 |
| Frame Stack (L) | 555 21.85 |
| Standover Height (M) | 538 21.18 |
