XTRADA
Cross-Country | 120mm Travel | ALX Alloy | 29" or 27.5" Wheels
Features
-

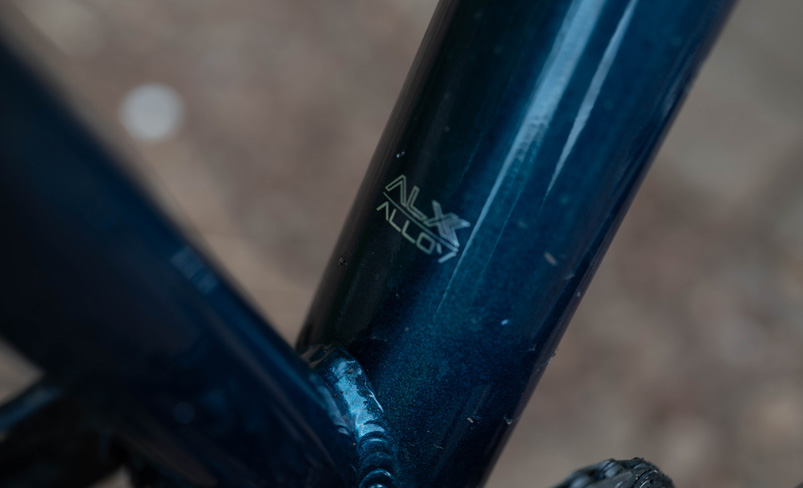

ALX frame
Lightweight hydroformed ALX frame, manufactured in-house at Polygon's factory.
-

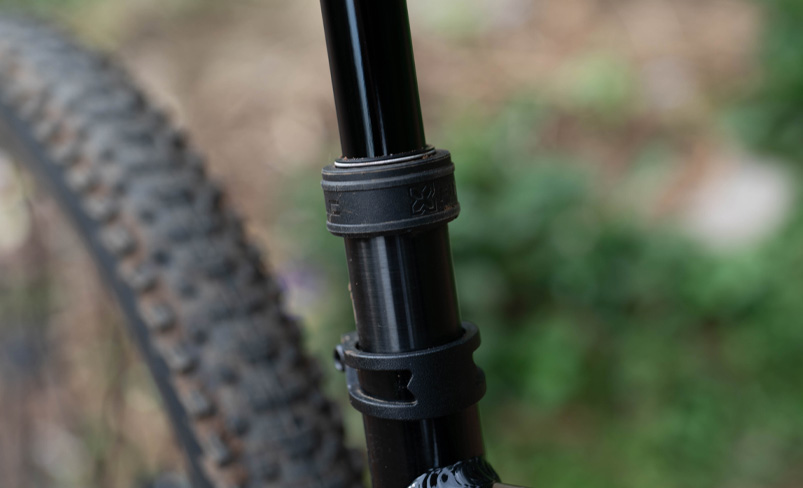

Dropper Post
Essential for modern mountain biking. The TranzX dropper provides up to 170mm drop for greatly increased confidence descending.
Choose your series
To place an order, please choose size and color first. This item is now available. Learn more.
To place an order, please choose size and color first. This item is now available. Learn more.
To place an order, please choose size and color first. This item is now available. Learn more.
Build Specs
| Kit |
XTRADA 7
|
XTRADA 6
|
XTRADA 5
|
|---|---|---|---|
| Frame | ALX XC 29 | ALX XC 29 | ALX XC 29" |
| Fork | X-FUSION MIGO RC DAMPER 32 120mm TRAVEL BOOST THRU AXLE | X-FUSION MIGO LO DAMPER 32 120mm TRAVEL BOOST THRU AXLE | SUNTOUR XCM 32 120MM TRAVEL BOOST THRU AXLE |
| Shifter | SRAM SL-70-A1 1x12-SPEED TRIGGER | SHIMANO DEORE SL-M6100 1x12-SPEED TRIGGER | SHIMANO CUES SL-U6000 1x10-SPEED TRIGGER |
| Crank Set | SRAM EAGLE 70 T-TYPE 32T | SAMOX RAC61C-018S-C55 32T | PROWHEEL RMZ-MD25S-TT 32T 170mm |
| Cassette | SRAM CS-XS-1270-A1 12-SPEED 10-52T | SHIMANO CS-M6100 12-SPEED 10-51T | SHIMANO CS-LG300 10-SPEED 11-48T |
| Rear Derailleur | SRAM RD-70-A1 T-TYPE | SHIMANO DEORE RD-M6100 DIRECT ATTACH | SHIMANO CUES RD-U6000 DIRECT ATTACH |
| Wheel Set | ALLOY WHEELS | ALLOY WHEELS | ALLOY WHEELS |
| Tire | MAXXIS REKON 29"X2.25" TLR | WTB TRAIL BOSS 29"X2.25" | WTB TRAIL BOSS 29"X2.25" |
| Brake Lever | SHIMANO BL-MT200 | SHIMANO BL-MT200 | SHIMANO BL-MT200 |
| Brake Caliper | SHIMANO MT200 HYDRAULIC DISC BRAKE | SHIMANO MT200 HYDRAULIC DISC BRAKE | SHIMANO MT200 HYDRAULIC DISC BRAKE |
| Rotor | SHIMANO SM-RT10 F: 180mm R: 160mm CENTERLOCK | SHIMANO SM-RT10 F: 180mm R: 160mm CENTERLOCK | SHIMANO SM-RT10 F: 180mm R: 160mm CENTERLOCK |
FAQ
-
What is it made of?
Alloy with ALX technology with 6061 triple butted tubing and heat treated for strength and durability
-
What is the widest tire configuration for this bike?
2.25 tire is the optimum specification of the tire width
-
Is it safe to add more travel to the bike?
120mm is the peak specification of the bike, adding more will put the frame on a stress
-
What is XC Trail MTB Bike
Bicycle that is designed for more hill climbing and decline yet still comfortably ridden across the country. It can be found on both hardtail and full suspension configuration
-
Where can I ride XC Trail MTB Bike
As it names implies, the mountain bike could conquer local single track to mountainous range
-
How long the travel on XC Trail MTB Bike
You can find the mountain bike with mostly 120mm travel fork
