RELIC 20: Adventure Starts Here
RELIC 20
Features
-

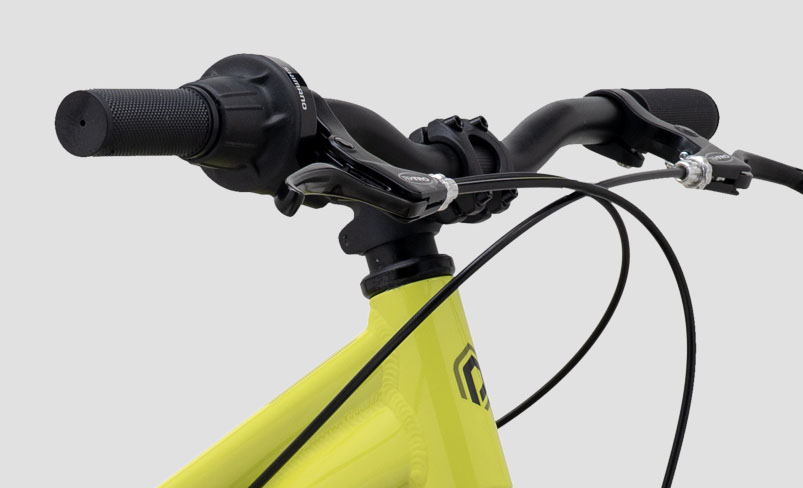

Proportional Youth Components
We’ve curated every detail, from shorter crank arms for easier pedaling to a narrower handlebar and reach-adjustable brake levers, ensuring that smaller hands and legs have total, effortless control.
-

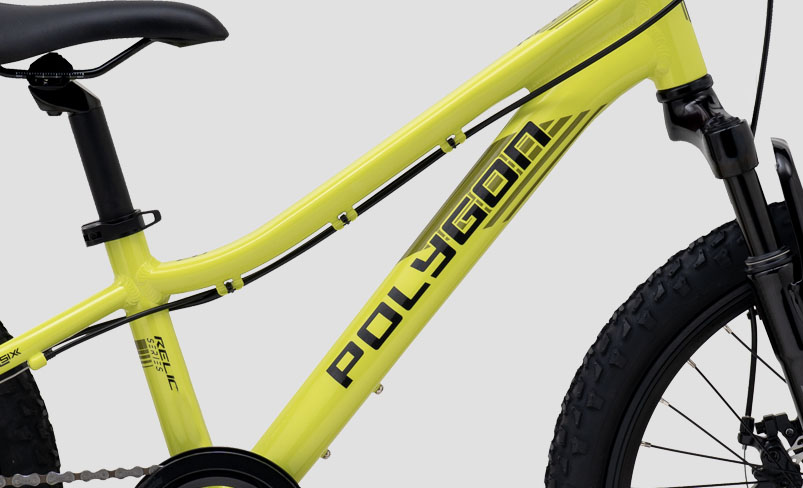

Lightweight ALX Frame
Built with a low stand-over height and lightweight alloy, this frame is easy to hop on and off and even easier to carry by hand.
-

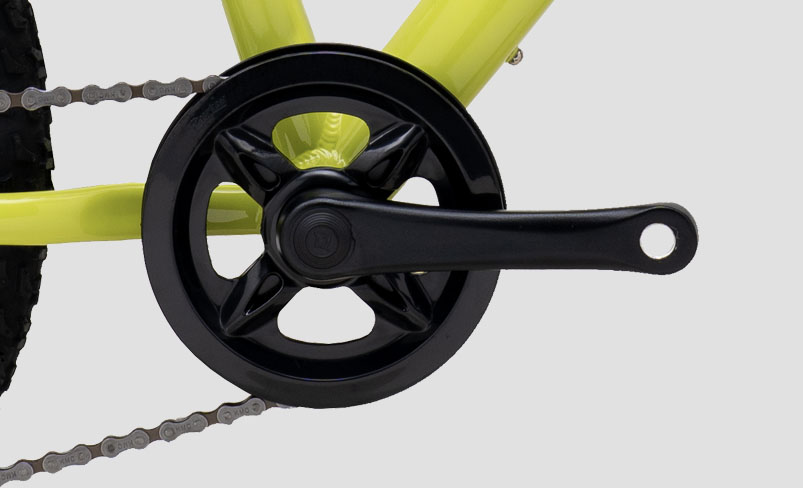

Simplified 1x Drivetrain
The 1x gear system is intuitive and easy to master, providing a wide range of gears while keeping the chain secure and the shifting crisp.
Specification
-
Frameset
FramesetForkSizeFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor

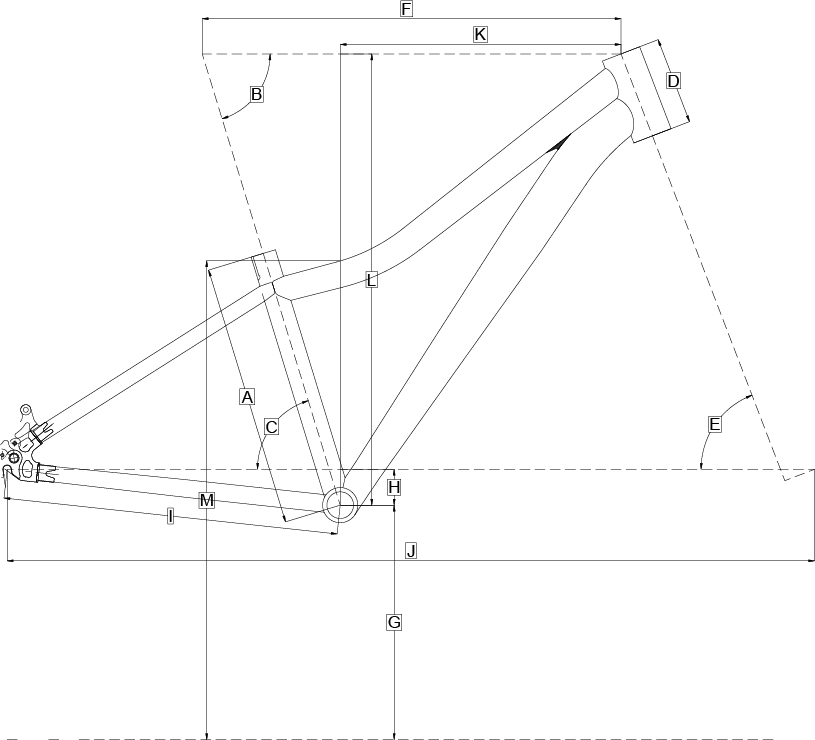

Geometry & Size
| All Size | |
|---|---|
| Height (cm) | 120-130 |
| Seat Tube Length (A) | 254 10 |
| Seat Tube Angle (B) | 72 2.83 |
| Effective Seat Tube Angle (C) | 72 2.83 |
| Head Tube Length (D) | 100 3.94 |
| Head Tube Angle (E) | 70 2.76 |
| Effective Top Tube (F) | 450 17.72 |
| Bb Height (G) | 237 9.33 |
| Bb Offset (H) | 20 0.79 |
| Chainstay Length (I) | 370 14.57 |
| Wheelbase (J) | 864.7 34.04 |
| Frame Reach (K) | 304.9 12 |
| Frame Stack (L) | 446.6 17.58 |
| Standover Height (M) | 475.5 18.72 |
