KALOSI: Power Your City Riding

Electric Hybrid | ALX Alloy frame | 7 Available Builds

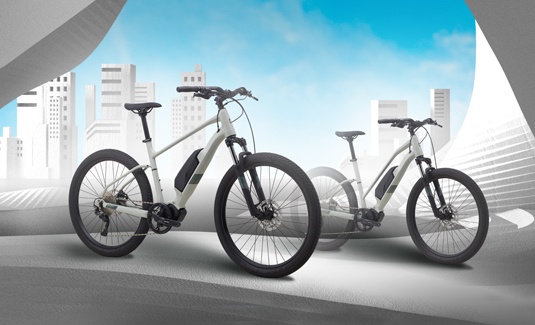

Elevate your daily commute and weekend escapes with the Polygon Kalosi. Built for those who want to move through the city with effortless speed and modern style, this pedal-assist electric bike is designed to be the ultimate smart urban commuter With its sleek integration and rider-focused geometry, the Kalosi turns every steep hill into a flat road and every long distance into a quick trip.

Bike type:

Polygon Kalosi Lanes Gent Electric Hybrid Bike

Polygon Kalosi Lanes Gent Electric Hybrid Bike Green

KALOSI LANES EVO HIGH STEP

$2,699.00

Color

Size

Clear

Find my size

To place an order, please choose size and color first. This item is now available. Learn more.

FIND DEALER

[yith_wcwl_add_to_wishlist] Wishlist
Compare
Share

SKU : 503298

Features

Powerful Electric Motor

Equipped with a high-torque electric motor, the Kalosi delivers smooth, intuitive power that responds to your pedaling. It's center-weighted placement ensures a natural ride feel and superior balance.

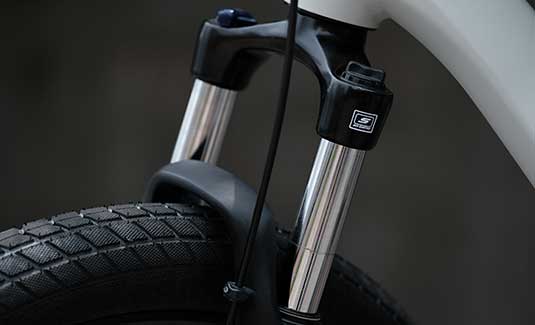

Smooth-Riding Suspension & High-Volume Tires

Urban streets can be unpredictable, but the Kalosi stays composed. The front suspension fork paired with plush, large-volume tires smooth out potholes, tram tracks, and cobblestones.
Precision Hydraulic Disc Brakes

Safety meets performance with high-performance hydraulic disc brakes. Massive stopping power and consistent modulation in all weather conditions, giving you total confidence and control.

Specification

Frameset

Frameset

ALX TREKKING FRAME

Fork

SUNTOUR XCM32 HLO 100mm TRAVEL

Size

S, M, L

Frame Color

BLACK / GREEN

Decal Color

BRONZE / GREEN
Drivetrain

Shifter

SHIMANO CUES SL-U6000 1x10-SPEED TRIGGER

Crank

SHIMANO FC-E5010 W/ SM-CRE50 44T CL:46.5mm W/ DOUBLE CG

Cassette

SHIMANO CS-LG300-10 11-48T

Rear Derailleur

SHIMANO CUES RD-U6000-GS DIRECT ATTACH

BB

SHIMANO DU-E5000 DRIVE UNIT

Chain

SHIMANO CN-LG500

Pedal

PP PEDALS W/ REFLECTOR
Cockpit

Saddle

LINC EASE, STEEL ø7mm

Seatpost

POLYGON EXPERT ALLOY, DxL: 30.9 x 300mm

Handlebar

POLYGON EXPERT ALLOY, W: 700mm, BB: 31.8mm, R/D: 25mm, B: 18degree

Handlestem

POLYGON XPERT ALLOY, EXT: 60mm (S) / 80mm (M, L), BB: 31.8mm, R/D: 7degree

Headset

ZERO STACK (ZS) SEMI INTEGRATED SEALED BEARING FOR TAPER H/T, ZS 44/28.6 | ZS 56/30
Wheel & Tire

Wheel Set

ALLOY DOUBLE WALL FOR DISC BRAKE

Wheel Size

27.5"

Tire

SCHWALBE SUPER MOTO-X 27.5"x2.40" (584-62)

Rim

ALLOY DOUBLE WALL 584x30C DEPTH:23mm 32H FOR TYRE 584-54/76

Hub

F: JOYTECH D761DSE QRx100mm 32H CENTERLOCK / R: JOYTECH D762DSE QRx135mm 32H CENTERLOCK

Spokes

F: STAINLESS J-BEND 14G NDS:270mm DS:270mm / R: STAINLESS J-BEND 14G NDS:270mm DS:270mm
Brake

Brake Lever

SHIMANO BR-MT201 HYDRAULIC DISC BRAKE

Brake Caliper

SHIMANO BR-MT201 HYDRAULIC DISC BRAKE

Rotor

SHIMANO F:SM-RT10 R:RT-EM600 180mm CENTER LOCK
Electric Parts

Motor

SHIMANO DU-E5000 MID MOTOR, CONTINUOUS RATED POWER 250Watt, MAXIMUM TORQUE 40Nm

Sensor

SHIMANO SM-DUE11 FOR REAR ROTOR WITH MAGNET BRACKET

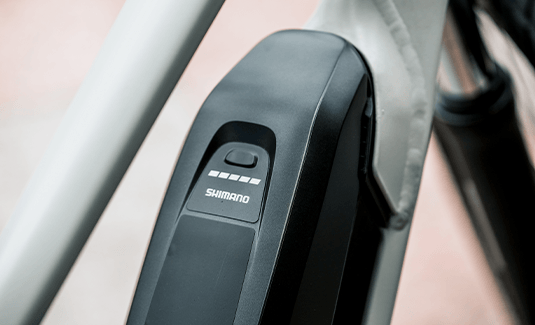

Battery

SHIMANO BT-E8010 FOR DOWN TUBE - 504Wh (36V, 14Ah)

Geometry & Size

mm inch

Find your size

	S	M	L
Height (cm)	150-160	160-170	170-180
Seat Tube Length (A)	460 18.11	490 19.29	520 20.47
Seat Tube Angle (B)	74.5 2.93	74 2.91	73.5 2.89
Effective Seat Tube Angle (C)	74.5 2.93	74 2.91	73.5 2.89
Head Tube Length (D)	139 5.47	170 6.69	200 7.87
Head Tube Angle (E)	71 2.8	71.5 2.81	71.5 2.81
Effective Top Tube (F)	546 21.5	570 22.44	594 23.39
Bb Height (G)	287 11.3	287 11.3	287 11.3
Bb Offset (H)	70 2.76	70 2.76	70 2.76
Chainstay Length (I)	460 18.11	460 18.11	460 18.11
Wheelbase (J)	1067 42.01	1082 42.6	1101 43.35
Frame Reach (K)	390 15.35	400 15.75	410 16.14
Frame Stack (L)	561 22.09	592 23.31	620 24.41
Standover Height (M)	704 27.72	736 28.98	766 30.16
