SISKIU D24 EVO: For the Next Generation
SISKIU D24 EVO
Features
-

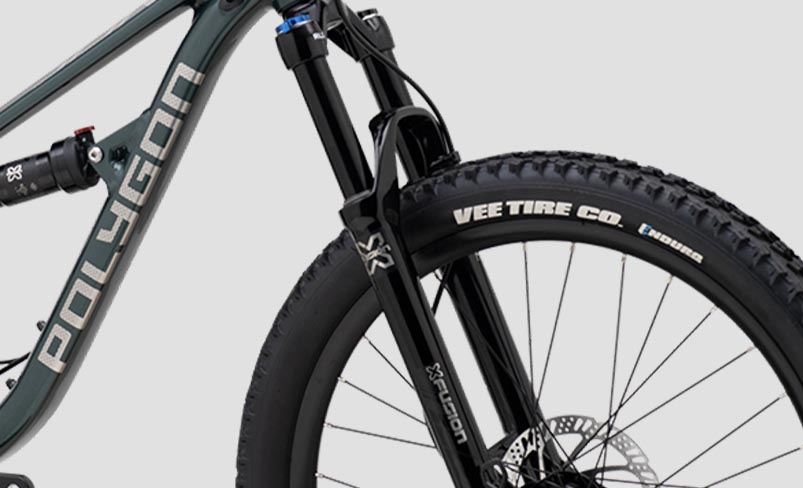

X-Fusion Velvet Fork
The X-Fusion Velvet fork and 02 PRO R rear shock are custom tuned for young shredders light weight, allowing them to get the most out of the 120mm of travel. The air springs can be easily adjusted with a shock pump to match your child's weight and riding style.
-

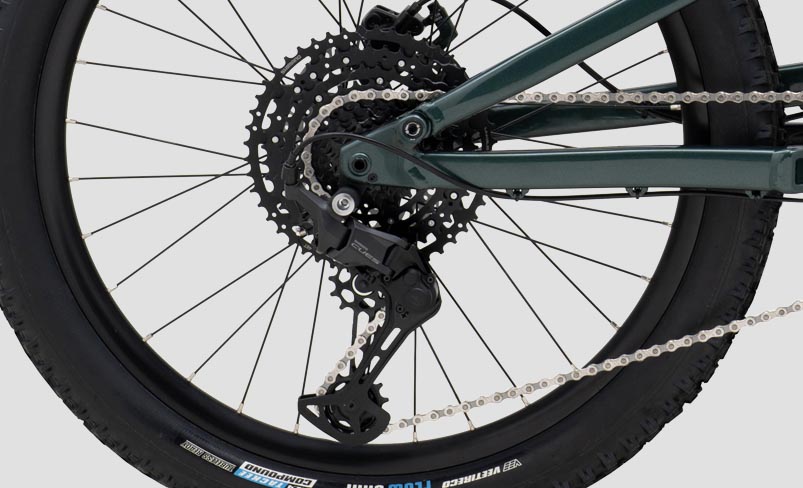

Shimano 1x10 Drivetrain
The Shimano Cues 1x10 drivetrain delivers smooth, reliable shifting and the 11-48t cassette offers plenty of range to get up steep climbs. Thanks to the clutch rear derailleur, there is no clunking or rattling from the drivetrain and less dropped chains!
-
Hydraulic Disc Brakes
Tektro hydraulic brakes provide tonnes of power and all weather performance. Levers specifically designed for small hands are easy to reach and will save any rider in a sticky situation.
-
Dropper Post
The Tranz dropper post allows for quick and easy saddle height adjustment on the fly, improving your child's control and confidence on descents and technical sections.
-

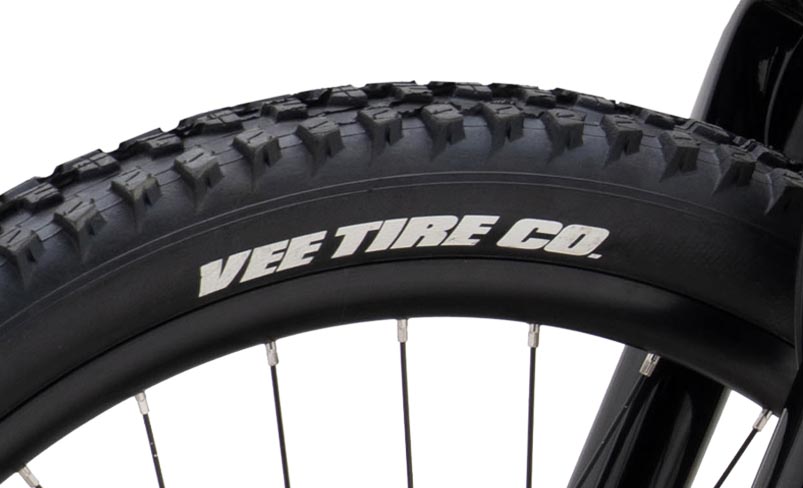

Wheels & Tyres
Entity X15 Disc wheels are lightweight and durable, and come pre-taped for easy tubeless setup. The stock Vee Tyres off loads of grip and puncture protection! For a full tubeless setup, you will need valves, sealant and tubeless ready tyres.
Specification
-
Frameset
FramesetForkRear ShockFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| ALL SIZE | |
|---|---|
| Height (cm) | 127-142 |
| Seat Tube Length (A) | 317 12.48 |
| Seat Tube Angle (B) | 73.5 2.89 |
| Effective Seat Tube Angle (C) | 75 2.95 |
| Head Tube Length (D) | 90 3.54 |
| Head Tube Angle (E) | 66 2.6 |
| Effective Top Tube (F) | 493 19.41 |
| Bb Height (G) | 338 13.31 |
| Bb Offset (H) | 10 0.39 |
| Chainstay Length (I) | 425 16.73 |
| Wheelbase (J) | 1053 41.46 |
| Frame Reach (K) | 350 13.78 |
| Frame Stack (L) | 534 21.02 |
| Standover Height (M) | 633 24.92 |
