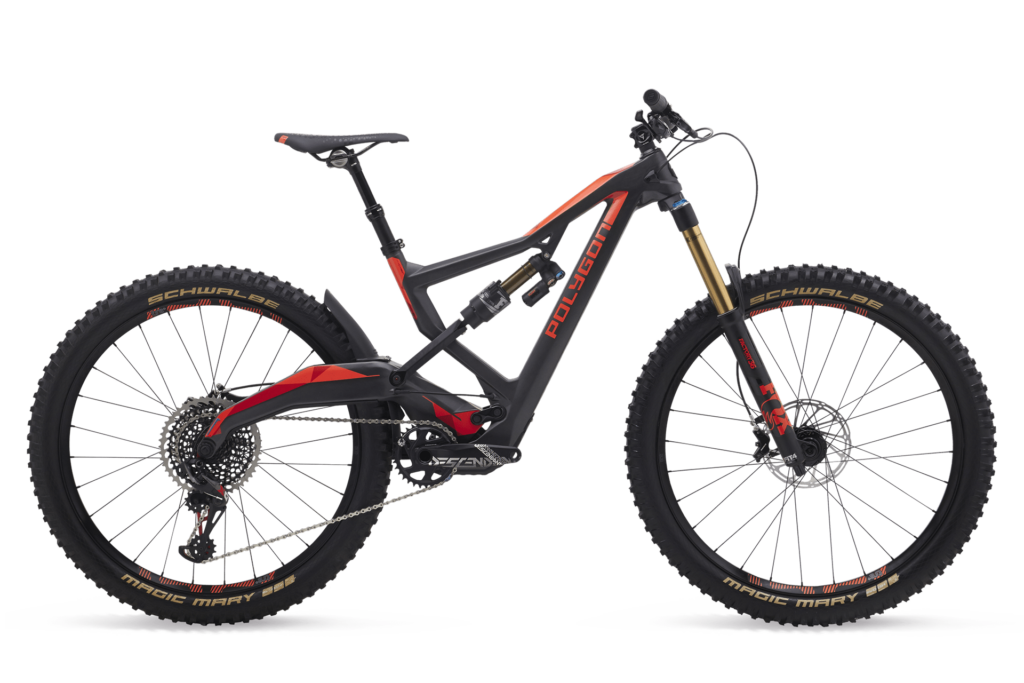

The XQUARONE EX8 is a departure from the old way of classifying bikes and creates a new paradigm where travel no long determines discipline. The NAILD suspension design works in conjunction with Polygon’s frame construction to give a ride unlike anything else. The bike is designed to have a short rear end for tackling technical terrain and to provide quick cornering. Equipped with the elevated chainstay that is unique to the NAILD R3ACT- 2Play Suspension System, XQUARONE EX 8 acts as an extension of rider’s movement. XQUARONE EX helps riders get more speed and extends their riding range. XQUARONE bikes are able to move over obstacles quicker which improves lap times, reduces rider fatigue and increases on trail confidence. The XQUARONE EX9 is built around 27.5 wheels and features a full ACX carbon frame with 180mm suspension travel.
The specifications, colors, parts, and availability of the products can be subjects to alter without prior notification.
FramesetForkRear ShockFrame Color
Wheel & Tire
Wheel SetWheel SizeTire
Brake LeverBrake CaliperRotor
Geometry & Size
Find your size
|Seat Tube Length (A)||485 19.09|
|Seat Tube Angle (B)||67 2.64|
|Effective Seat Tube Angle (C)||73.5 2.89|
|Head Tube Length (D)||125 4.92|
|Head Tube Angle (E)||66 2.6|
|Effective Top Tube (F)||665 26.18|
|Bb Height (G)||354 13.94|
|Bb Offset (H)||3 0.12|
|Chainstay Length (I)||425 16.73|
|Wheelbase (J)||1219.2 48|
|Frame Reach (K)||471.4 18.56|
|Frame Stack (L)||619.9 24.41|
|Standover Height (M)||776 30.55|
Find My Size
Your best fit for
Note : This result is based on your height, please do a more accurate bike fitting at the bike dealer to get the right bike size.
