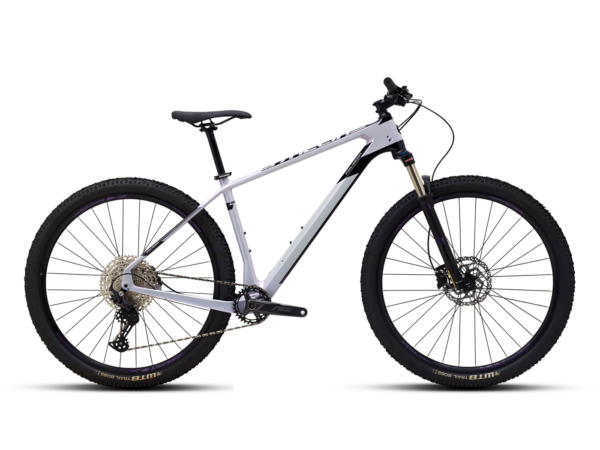

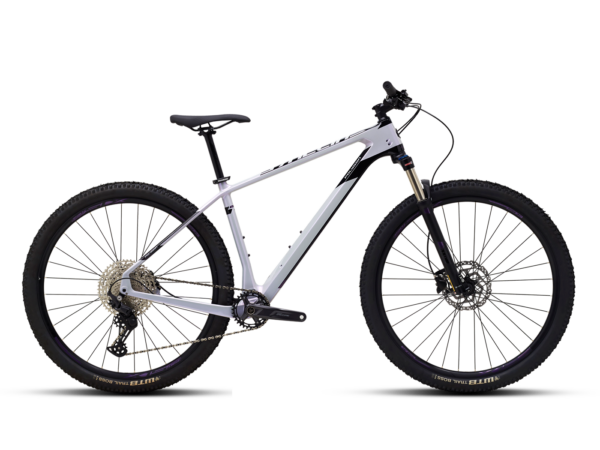

SYNCLINE C2
SYNCLINE C2 2022
-
502636
-
CROSS COUNTRY ?CROSS COUNTRY ?We understand how mesmerizing mountains are and everything in it; the scents through the wind, the rocky climbs and descents, and the singletracks. So we built you bikes that keep you rolling on cross country to technical tracks. Faster to feel the wind and smoother to beat trails. Are you ready to be mesmerized more? See more...
Designed as a top performing XC trail machine with modern geometry. Featuring an ultra light and stiff carbon frame designed around 27.5” and 29″ wheels, this bike will keep you rolling on cross country to technical tracks smoothly with style. This is for you, trail seeker. Whether you are looking for fun off-road riding or cross-country enthusiast striving for podiums, get ready to cross every boundary and seize your own journey.
Specification
*Specifications, colors, and product availability are subject to change without prior notice.
-
Frameset
FramesetForkRear Shock
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChain
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRim
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
A brief explanation of geometry is placed here. The geometry image below will stay / freeze.
| S (27.5”) | M (27.5”) | M (29”) | L (29”) | XL (29”) | |
|---|---|---|---|---|---|
| Height (cm) | 155-165 | 165-175 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 380 14.96 | 420 16.54 | 420 16.54 | 460 18.11 | 500 19.69 |
| Seat Tube Angle (B) | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 |
| Effective Seat Tube Angle (C) | 75.3 2.96 | 75.3 2.96 | 75.3 2.96 | 75.3 2.96 | 75.3 2.96 |
| Head Tube Length (D) | 100 3.94 | 120 4.72 | 100 3.94 | 120 4.72 | 140 5.51 |
| Head Tube Angle (E) | 67 2.64 | 67 2.64 | 67 2.64 | 67 2.64 | 67 2.64 |
| Effective Top Tube (F) | 569 22.4 | 594.6 23.41 | 597.7 23.53 | 621 24.45 | 649.15 25.56 |
| Bb Height (G) | 308.5 12.15 | 308.5 12.15 | 307.5 12.11 | 307.5 12.11 | 307.5 12.11 |
| Bb Offset (H) | 45 1.77 | 45 1.77 | 65 2.56 | 65 2.56 | 65 2.56 |
| Chainstay Length (I) | 425 16.73 | 425 16.73 | 435 17.13 | 435 17.13 | 435 17.13 |
| Wheelbase (J) | 1106.94 43.58 | 1134.8 44.68 | 1149.5 45.26 | 1176.9 46.33 | 1204.76 47.43 |
| Frame Reach (K) | 410 16.14 | 430 16.93 | 430 16.93 | 450 17.72 | 470 18.5 |
| Frame Stack (L) | 596.6 23.49 | 615 24.21 | 633.2 24.93 | 651.6 25.65 | 670 26.38 |
| Standover Height (M) | 690.9 27.2 | 729.2 28.71 | 730.8 28.77 | 763.7 30.07 | 779.2 30.68 |
