YOUR E-COMMUTING PARTNER
Path E5 is offering a convenient, silent and smooth ride. Path E5 is created for everyone and enables riders of different abilities and fitness to ride together. With the help of the attached electric pedal-assist system, riders don’t need to pedal nearly as hard as riding a conventional bike – but still can ride anywhere around the city.Rider is still doing most of the legwork but will beat any steep climbs and reach greater distances effortlessly.
ELECTRIC PEDAL ASSIST SYSTEM
Using Shimano STEPS E5000 drive unit offering powerful and quiet assist system. Providing easy to read computer display controlling the battery, assist mode, current speed and ranges indicators.
Path E5 is available in two version: Path E5 Gent and Path E5 Lady. Designed with perfect geometry specifically for man and woman while offering same fun, freedom and easier city riding.
FUNCTIONAL SUPPORTING PARTS
Path E5 is equipped with fender, rear carrier & front light for long distance city riding

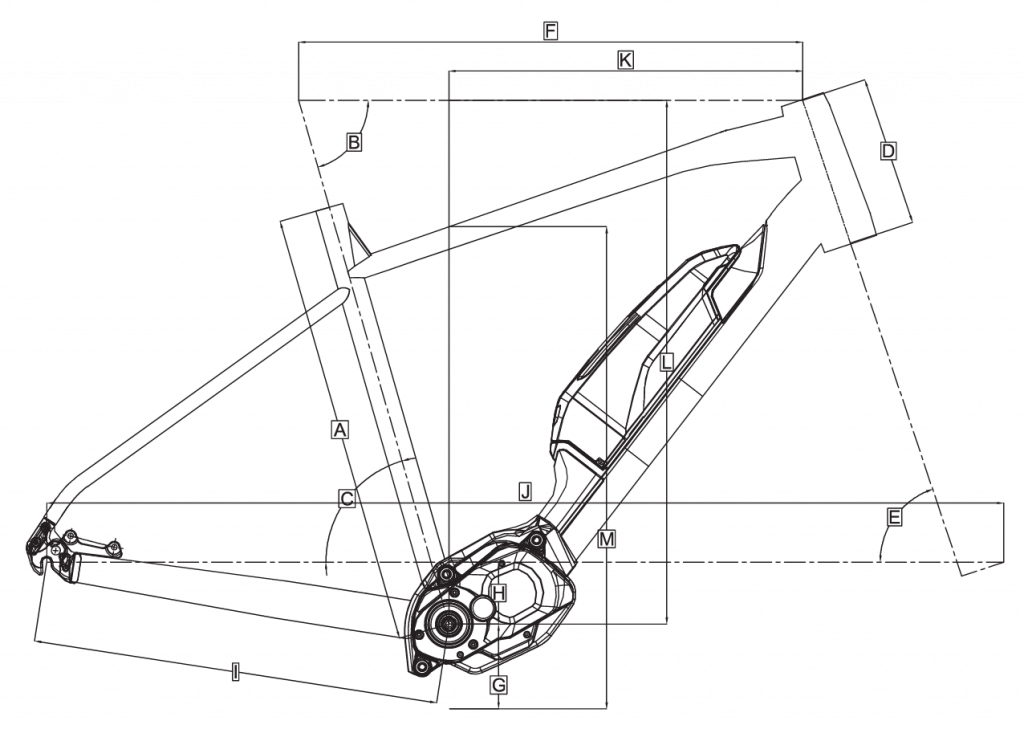

|Seat Tube Length (A)||460 18.11||490 19.29||520 20.47|
|Seat Tube Angle (B)||74.5 2.93||74 2.91||73.5 2.89|
|Effective Seat Tube Angle (C)||74.5 2.93||74 2.91||73.5 2.89|
|Head Tube Length (D)||140 5.51||170 6.69||200 7.87|
|Head Tube Angle (E)||71 2.8||71.5 2.81||71.5 2.81|
|Effective Top Tube (F)||564 22.2||570 22.44||594 23.39|
|Bb Height (G)||287 11.3||287 11.3||287 11.3|
|Bb Offset (H)||70 2.76||70 2.76||70 2.76|
|Chainstay Length (I)||460 18.11||460 18.11||460 18.11|
|Wheelbase (J)||1067 42.01||1082 42.6||1101 43.35|
|Frame Reach (K)||390 15.35||400 15.75||410 16.14|
|Frame Stack (L)||561 22.09||592 23.31||620 24.41|
|Standover Height (M)||704 27.72||736 28.98||766 30.16|
Can I swap it with suspension fork?
Swapping the fork will change the geometry and lead to an uncomfortable ride so we don't recommend it
What is the wheel size?
What is the top speed of the bike?
What is E-bike?
A bike equipped with electricity component for an easier ride
How pedal assist works?
Sensor on the BB will read pressure while pedaling, sending information to the motor so your pedalling will be assisted then
Where can I ride E-bike Urban?
You can ride swiftly on city roads
Note : This result is based on your height, please do a more accurate bike fitting at the bike dealer to get the right bike size.
