IN THE RELENTLESS PURSUIT OF SPEED
-
Cuts Through Air

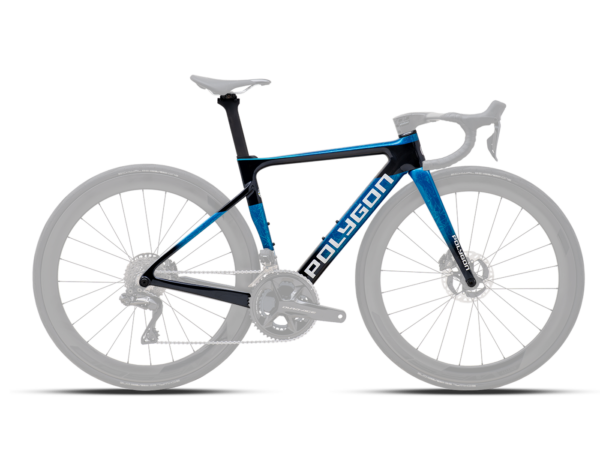

The best teacher of aerodynamics comes from raindrops: the billions that seeks the most efficient way in cutting through air. With this inspiration, the new shape of Helios is designed to cut through air without leaving behind turbulence, thus achieving an industry-leading; 31% reduction in drag over previous generation designs.
-
Flies On Climbs
We went back to the basic philosophy of a bicycle: how do we leverage the rider’s work in the most efficient way possible? To this end, we reinforced the bottom bracket and right chainstay to instantaneously transmit pedaling power to the wheels. In addition, with one of the lightest frames at only 800 grams, it is designed to defy gravity and fly even in the most arduous of climbs.
-
Synchronized To The Human Body
At the end of the day, we designed Helios with its rider in mind. Few tracks are ever completely smooth or straight. The reinforcements, in conjunction with clearance for wider tires that is proven to minimize rolling resistance, enable the rider of this bike to best control, corner, and conquer.
-
Fresh Crystal Effect
Beyond its blue color, inspired by our high-performing team TSG, it also embodies our craftsmanship and creativity in designing fresh patterns. This exquisite pattern, known as the 'Crystal Effect,' required extensive research and meticulous effort from our painting lab due to its complex and intricate process.
XXXS | XXS | XS | S | M | L | XL | |
---|---|---|---|---|---|---|---|
Tinggi (cm) | 144-154 | 151-161 | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 |
Seat Tube Length (A) | 400 15.75 | 450 17.72 | 475 18.7 | 500 19.69 | 520 20.47 | 545 21.46 | 570 22.44 |
Seat Tube Angle (B) | 75.25 2.96 | 75 2.95 | 74.7 2.94 | 74.3 2.93 | 74 2.91 | 73.7 2.9 | 73.3 2.89 |
Effective Seat Tube Angle (C) | 75.25 2.96 | 75 2.95 | 74.7 2.94 | 74.3 2.93 | 74 2.91 | 73.7 2.9 | 73.3 2.89 |
Head Tube Length (D) | 100 3.94 | 100 3.94 | 115 4.53 | 130 5.12 | 145 5.71 | 160 6.3 | 175 6.89 |
Head Tube Angle (E) | 71 2.8 | 71.5 2.81 | 71.8 2.83 | 72 2.83 | 72.3 2.85 | 72.3 2.85 | 72.8 2.87 |
Effective Top Tube (F) | 500 19.69 | 505.31 19.89 | 517.31 20.37 | 530.42 20.88 | 543.04 21.38 | 555.14 21.86 | 569.25 22.41 |
Bb Height (G) | 271 10.67 | 271 10.67 | 271 10.67 | 271 10.67 | 271 10.67 | 271 10.67 | 271 10.67 |
Bb Offset (H) | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 |
Chainstay Length (I) | 415 16.34 | 415 16.34 | 415 16.34 | 415 16.34 | 415 16.34 | 415 16.34 | 415 16.34 |
Wheelbase (J) | 977 38.46 | 968.42 38.13 | 975.82 38.42 | 983.9 38.74 | 991.1 39.02 | 1000.62 39.39 | 1005.8 39.6 |
Frame Reach (K) | 368 14.49 | 370 14.57 | 375 14.76 | 380 14.96 | 385 15.16 | 390 15.35 | 395 15.55 |
Frame Stack (L) | 501 19.72 | 505 19.88 | 520.21 20.48 | 535.2 21.07 | 550.4 21.67 | 564.7 22.23 | 580.8 22.87 |
Standover Height (M) | 672 26.46 | 715.04 28.15 | 739.4 29.11 | 763.21 30.05 | 780.8 30.74 | 802.52 31.6 | 824.28 32.45 |
