IN THE RELENTLESS PURSUIT OF SPEED
The all new performance road bike designed to cut through air without leaving behind turbulence, thus achieving an industry-leading level.
In our pursuit of speed, we cyclists have always seen nature as an adversary. From daunting air drag to coarse road surfaces, we sought to minimize interaction with our surroundings in hopes of achieving optimal efficiency. Helios is here to transform that paradigm because by embracing nature, we can be even faster.

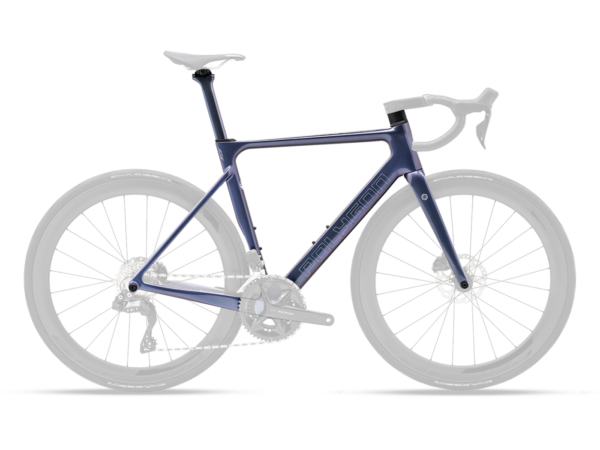

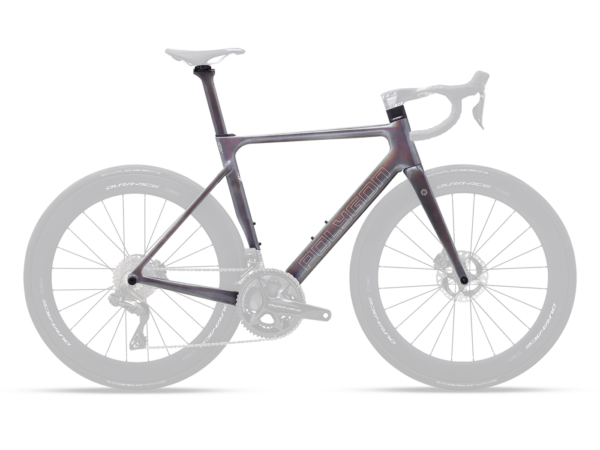

FRAMESET HELIOS A
Geometry & Size
XXXS | XXS | XS | S | M | L | XL | |
---|---|---|---|---|---|---|---|
Tinggi (cm) | 144-154 | 151-161 | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 |
Seat Tube Length (A) | 400 15.75 | 450 17.72 | 475 18.7 | 500 19.69 | 520 20.47 | 545 21.46 | 570 22.44 |
Seat Tube Angle (B) | 75.25 2.96 | 75 2.95 | 74.7 2.94 | 74.3 2.93 | 74 2.91 | 73.7 2.9 | 73.3 2.89 |
Effective Seat Tube Angle (C) | 75.25 2.96 | 75 2.95 | 74.7 2.94 | 74.3 2.93 | 74 2.91 | 73.7 2.9 | 73.3 2.89 |
Head Tube Length (D) | 100 3.94 | 100 3.94 | 115 4.53 | 130 5.12 | 145 5.71 | 160 6.3 | 175 6.89 |
Head Tube Angle (E) | 71 2.8 | 71.5 2.81 | 71.8 2.83 | 72 2.83 | 72.3 2.85 | 72.3 2.85 | 72.8 2.87 |
Effective Top Tube (F) | 500 19.69 | 505.31 19.89 | 517.31 20.37 | 530.42 20.88 | 543.04 21.38 | 555.14 21.86 | 569.25 22.41 |
Bb Height (G) | 271 10.67 | 271 10.67 | 271 10.67 | 271 10.67 | 271 10.67 | 271 10.67 | 271 10.67 |
Bb Offset (H) | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 |
Chainstay Length (I) | 415 16.34 | 415 16.34 | 415 16.34 | 415 16.34 | 415 16.34 | 415 16.34 | 415 16.34 |
Wheelbase (J) | 977 38.46 | 968.42 38.13 | 975.82 38.42 | 983.9 38.74 | 991.1 39.02 | 1000.62 39.39 | 1005.8 39.6 |
Frame Reach (K) | 368 14.49 | 370 14.57 | 375 14.76 | 380 14.96 | 385 15.16 | 390 15.35 | 395 15.55 |
Frame Stack (L) | 501 19.72 | 505 19.88 | 520.21 20.48 | 535.2 21.07 | 550.4 21.67 | 564.7 22.23 | 580.8 22.87 |
Standover Height (M) | 672 26.46 | 715.04 28.15 | 739.4 29.11 | 763.21 30.05 | 780.8 30.74 | 802.52 31.6 | 824.28 32.45 |
