REACH WIDER
* This product isn't available for online purchase. If you're interested to ride this bike, you can contact our nearest dealer (click here).
FIND DEALER


-

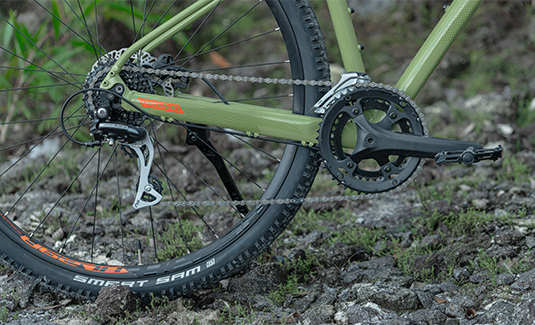

Easier shift, better experience
There’s more in less. The biggest advantage from a 1x drivetrain is it lets you focus on your ride, instead of constantly adjusting gears. Now you can have more and better experience on trails.
-
Get faster on trails
Accompanied with low rolling resistance tires to reduce the energy loss as a tire rolls, decreasing the required rolling effort. Enabling you to get wherever you’re heading to faster than before.
-

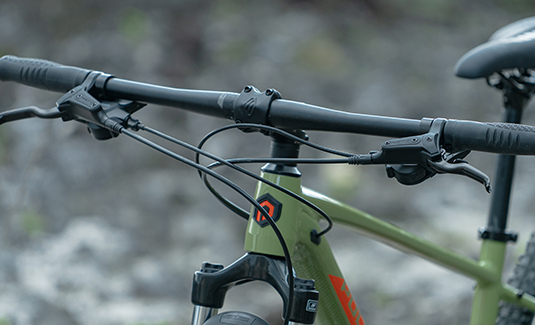

Rough conditions won’t stop us
With its suspension fork to smooth out the ride, and Hydraulic Disc Brakes that lets you experience a smooth and powerful braking performance; believe me, there’s no condition that can stop you to explore more.
-
Frameset
FramesetForkRear Shock
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
-
Other
Frame Weight
S | M | L | XL | |
---|---|---|---|---|
Height (cm) | 150-160 | 160-170 | 170-180 | 180-190 |
Seat Tube Length (A) | 400 15.75 | 431 16.97 | 470 18.5 | 516 20.31 |
Seat Tube Angle (B) | 74 2.91 | 74 2.91 | 74 2.91 | 74 2.91 |
Effective Seat Tube Angle (C) | 74 2.91 | 74 2.91 | 74 2.91 | 74 2.91 |
Head Tube Length (D) | 90 3.54 | 90 3.54 | 100 3.94 | 110 4.33 |
Head Tube Angle (E) | 71 2.8 | 71 2.8 | 71 2.8 | 71 2.8 |
Effective Top Tube (F) | 563.12 22.17 | 593.12 23.35 | 620.8 24.44 | 648.54 25.53 |
Bb Height (G) | 289.5 11.4 | 289.5 11.4 | 289.5 11.4 | 289.5 11.4 |
Bb Offset (H) | 70 2.76 | 70 2.76 | 70 2.76 | 70 2.76 |
Chainstay Length (I) | 440 17.32 | 440 17.32 | 440 17.32 | 440 17.32 |
Wheelbase (J) | 1063.12 41.86 | 1093.12 43.04 | 1121.43 44.15 | 1149.63 45.26 |
Frame Reach (K) | 385 15.16 | 415 16.34 | 440 17.32 | 465 18.31 |
Frame Stack (L) | 621.18 24.46 | 621.18 24.46 | 630.64 24.83 | 640.1 25.2 |
Standover Height (M) | 688.3 27.1 | 708.7 27.9 | 742.5 29.23 | 781.5 30.77 |
-
What is the drivetrain combination?
A combination of Shimano Altus and Shimano Acera
-
Can I swap it with rigid fork?
Swapping the fork will change the geometry and lead to an uncomfortable ride so we don't recommend it
-
What is the largest tire size?
700X45C
-
What is hybrid bike?
A bike designed with the combination of road bike and MTB
-
Where can I ride it?
You can ride it across the town or into the country trail
-
Why should I choose it?
The bike is the one for you who look for a swift movement and fun ride in the weekend
