COLLOSUS N8E C1
COLLOSUS N8E C1 2023
-
N/A

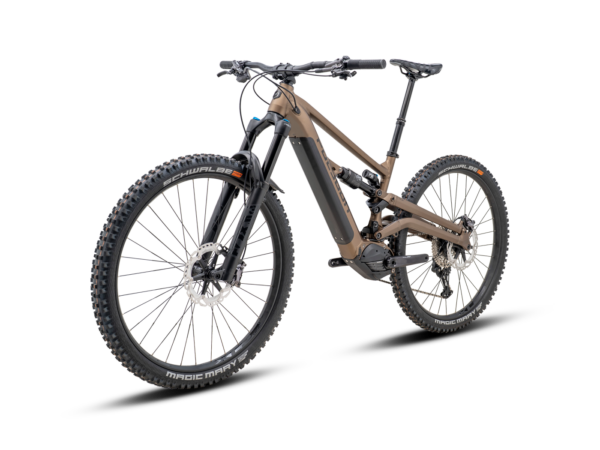

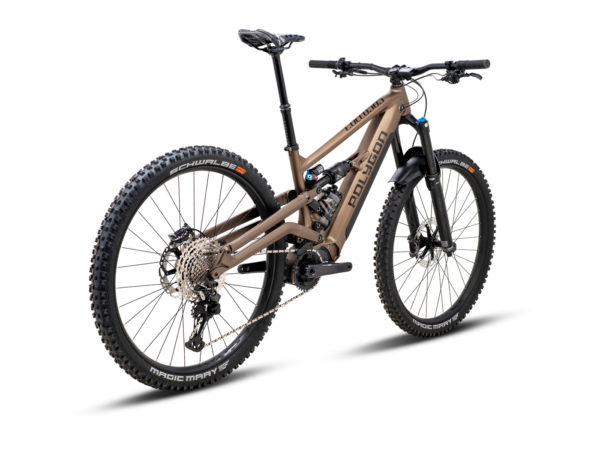

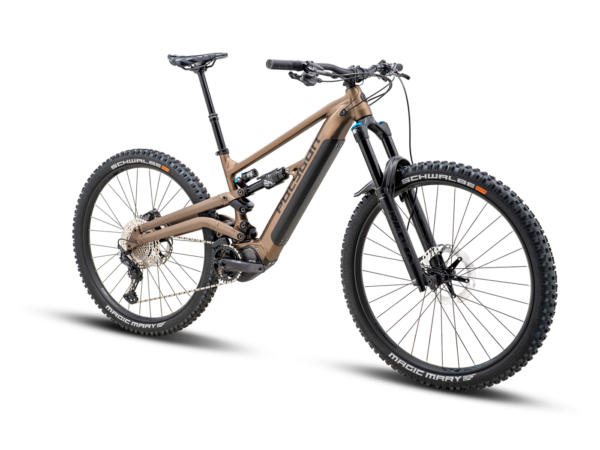

The Collosus N8E is Polygon’s newest E-enduro bike. Rather than simply bolting an e-system into an existing acoustic suspension platform, Polygon went back to the drawing board to engineer a 160mm 29” e-MTB to deliver the mountain biking experience we dream of; trail bike agility with enduro-esque composure where climbs transform into fun and, of course, your descents triple.
Specification
*Specifications, colors, and product availability are subject to change without prior notice.
-
Frameset
FramesetForkRear ShockFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
-
Electric Parts
MotorSensorBattery
Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 400 15.75 | 410 16.14 | 420 16.54 | 430 16.93 |
| Seat Tube Angle (B) | 70 2.76 | 70 2.76 | 70 2.76 | 70 2.76 |
| Effective Seat Tube Angle (C) | 77 3.03 | 77 3.03 | 77 3.03 | 77 3.03 |
| Head Tube Length (D) | 100 3.94 | 105 4.13 | 110 4.33 | 120 4.72 |
| Head Tube Angle (E) | 64.5 2.54 | 64.5 2.54 | 64.5 2.54 | 64.5 2.54 |
| Effective Top Tube (F) | 594.56 23.41 | 615.6 24.24 | 636.65 25.06 | 658.73 25.93 |
| Bb Height (G) | 345 13.58 | 345 13.58 | 345 13.58 | 345 13.58 |
| Bb Offset (H) | 35 1.38 | 35 1.38 | 35 1.38 | 35 1.38 |
| Chainstay Length (I) | 435 17.13 | 435 17.13 | 435 17.13 | 435 17.13 |
| Wheelbase (J) | 1212.09 47.72 | 1234.25 48.59 | 1256.4 49.46 | 1280.7 50.42 |
| Frame Reach (K) | 450 17.72 | 470 18.5 | 490 19.29 | 510 20.08 |
| Frame Stack (L) | 626.16 24.65 | 630.68 24.83 | 635.19 25.01 | 644.22 25.36 |
| Standover Height (M) | 710 27.95 | 710 27.95 | 710 27.95 | 709 27.91 |
