TRID: The Jump Bike that Does it All
TRID
Features
-
Pro-Level AL6 Dirt Jump Frame
Custom-engineered, ultra-stiff aluminum frame. Built with short chainstays for effortless manuals and a tapered headtube for maximum front-end rigidity.
-

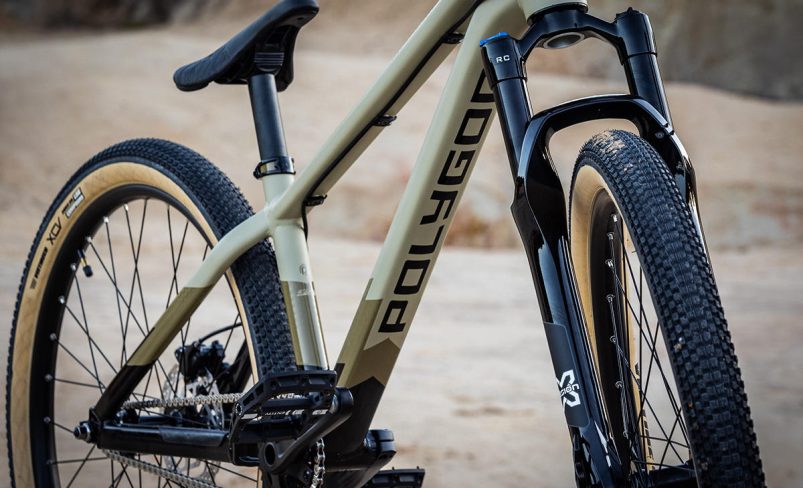

X-Fusion Slant Dirt Jump Fork
Designed specifically for freestyle riding, the 100mm travel X-Fusion fork features 34mm stanchions - plenty stiff enough to hold the line on berms and plush enough to save your wrists when you get a heavy landing at the skatepark or the local dirt jumps.
-
Bombproof Cockpit & Wheelset
The TRID is spec'd for real world riding, with wide bars and a short stem for lightning-fast handling, paired with double-wall alloy rims and high-volume Vee tires.
Specification
-
Frameset
FramesetForkSizeFrame ColorDecal Color
-
Drivetrain
CrankCassetteBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor

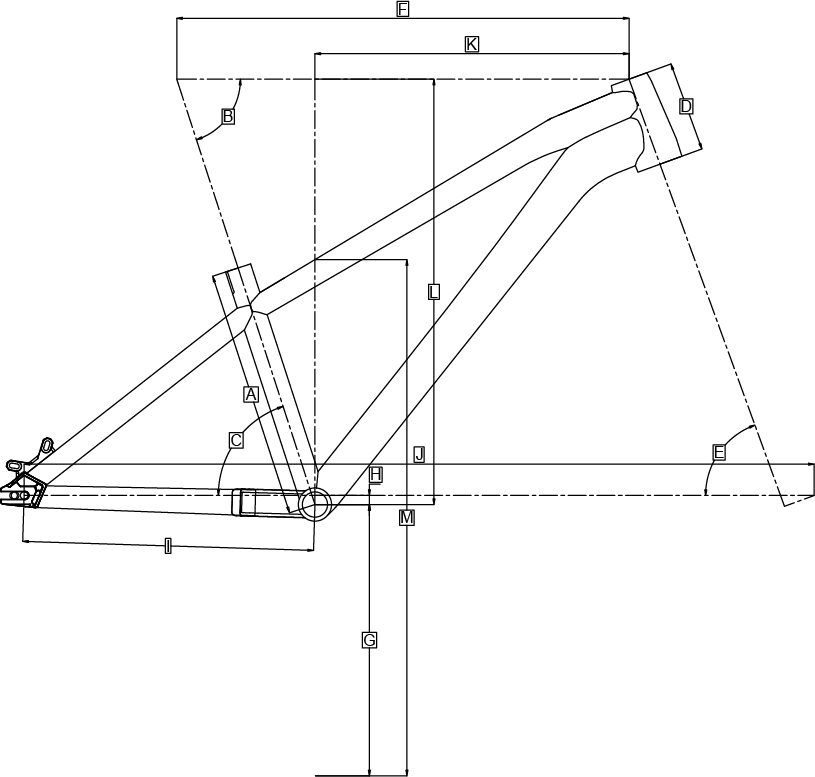

Geometry & Size
| All Size | |
|---|---|
| Height (cm) | 172-185 |
| Seat Tube Length (A) | 330 12.99 |
| Seat Tube Angle (B) | 72 2.83 |
| Effective Seat Tube Angle (C) | 72 2.83 |
| Head Tube Length (D) | 120 4.72 |
| Head Tube Angle (E) | 70 2.76 |
| Effective Top Tube (F) | 600 23.62 |
| Bb Height (G) | 327 12.87 |
| Bb Offset (H) | 12 0.47 |
| Chainstay Length (I) | 385 15.16 |
| Wheelbase (J) | 1043.2 41.07 |
| Frame Reach (K) | 416.7 16.41 |
| Frame Stack (L) | 563.27 22.18 |
| Standover Height (M) | 651.9 25.67 |
FAQ
-
Is it available for a separated frameset
Yes it is, so you may build it by your own prefered specification you check on the availability of the frameset on the nearest dealers
-
Is it safe to add more travel for the bike
For a dirtjumper you may find the bike bobbing if you add more travel, moreover, the frame may endure unecessary stress
-
Can I add travel to the rear shock
Adding more travel will put the frame on a stress so we don't recommend it
-
Can I make it gyro?
Polygon Trid hasn't supporting gyro configuration as it's not designed with tab holes on the headset
-
Is it already hidraulic DB?
Yes, for the better braking system, it's already hidraulic
-
What is DJ Bike
Bike exclusively made for you who love doing attraction in the air, made with a low standover height for the better tricks
-
Where can I ride DJ Bike
Bike Parks or Trail with a lot of pumping track and ramps
-
How long the travel on DJ Bike
For rider can easily pump the bike, 100mm fork travel is the one for a dirt jumper
