TRID ZZ: Podium Proven, Athlete Designed - the choice for slopestyle and freestyle MTB riders
Dual Suspension | 26 Inch Wheels | ALX Alloy
Developed with slopestyle icon Sam Reynolds, the TRID ZZ is proven on the world's biggest slopestyle courses and is equally at home on dirt jumps or the local pump track. The custom-designed ALX alloy frame features a 69-degree tapered head tube, 426mm reach, and a low 331mm BB height that inspires confidence when stomping massive tricks. The ultra-low standover keep things snappy and precise. Whether you're learning your first barspin or sending a 50-foot step-down, the TRID ZZ is built for riders who are serious about progression.
DIRT JUMP ?
DIRT JUMP ?
No hands, more tricks. With our robust and specific geometry designed dirt jumpers, you'll go from ground to air and back again smoothly and safely. Be ready to jump on cloud nine! See more...
TRID ZZ
Features
-
Dual Suspension
100mm RockShox Pike DJ fork & RockShox Monarch rear shock
-

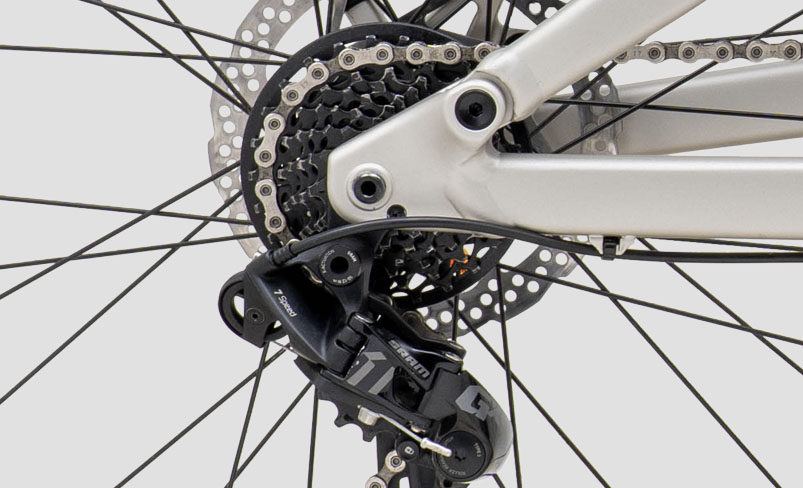

7 Speed
SRAM GX DH 7-speed drivetrain
-

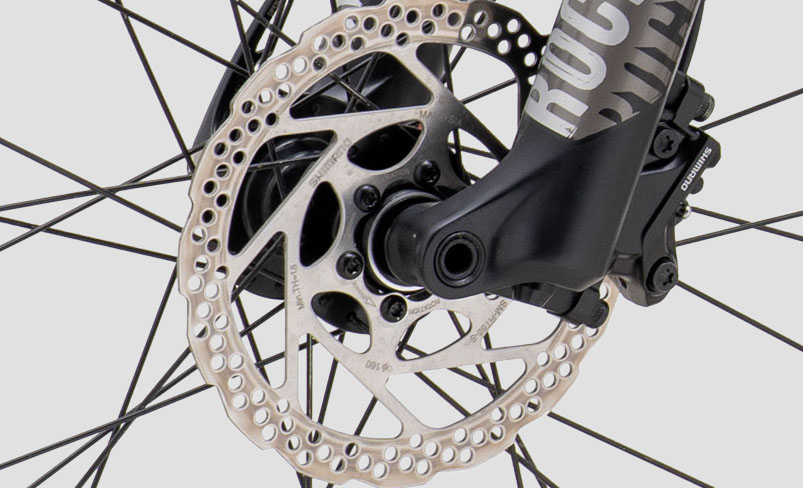

Hydraulic Brakes
SRAM hydraulic disc brakes
-

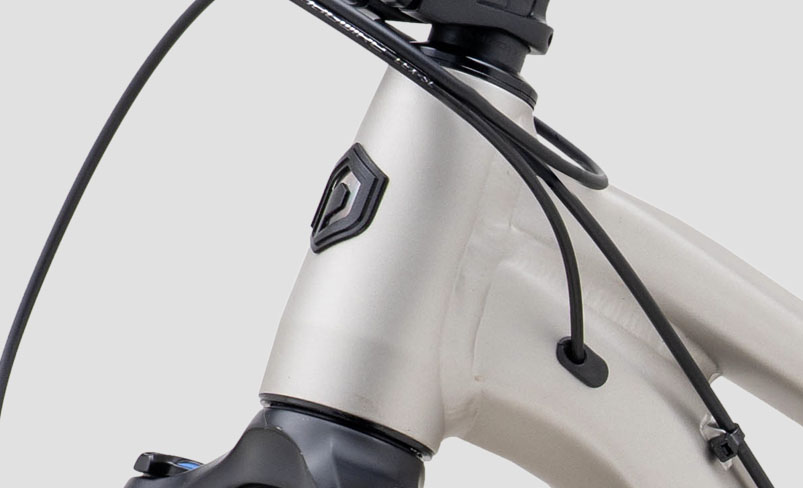

Progressive Geometry
69 Degree Head Tube, Low BB, Ultra Low Standover
Specification
-
Frameset
FramesetForkRear ShockSizeFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| All Size | |
|---|---|
| Height (cm) | 172-185 |
| Seat Tube Length (A) | 330 12.99 |
| Seat Tube Angle (B) | 70 2.76 |
| Effective Seat Tube Angle (C) | 75 2.95 |
| Head Tube Length (D) | 120 4.72 |
| Head Tube Angle (E) | 69 2.72 |
| Effective Top Tube (F) | 575 22.64 |
| Bb Height (G) | 331 13.03 |
| Bb Offset (H) | 8 0.31 |
| Chainstay Length (I) | 400 15.75 |
| Wheelbase (J) | 1079.1 42.48 |
| Frame Reach (K) | 425 16.73 |
| Frame Stack (L) | 558.5 21.99 |
| Standover Height (M) | 649 25.55 |
