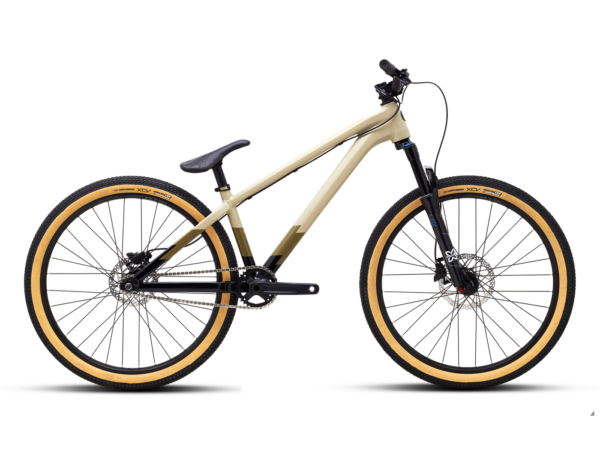

TRID 2020
-
502616
-
DIRT JUMP ?DIRT JUMP ?No hands, more tricks. With our robust and specific geometry designed dirt jumpers, you'll go from ground to air and back again smoothly and safely. Be ready to jump on cloud nine! See more...
Developed, tested and tweaked by Sam Reynolds himself, the new 2018 Polygon Trid continues its successful formula combining a bomb proof alloy frame with a spec sheet you can depend on. At its core, the proven AL6 Alloy frame is equipped with all the technology and features you expect from a top of the line Dirt Jumper. Tapered headtube, short chainstays, horizontal dropouts and wide frame tubes for improved rigidity.
Specification
-
Frameset
FramesetForkRear Shock
-
Drivetrain
ShifterCrankCassetteBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTire
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| All Size | |
|---|---|
| Height (cm) | 172-185 |
| Seat Tube Length (A) | 30 1.18 |
| Seat Tube Angle (B) | 72 2.83 |
| Effective Seat Tube Angle (C) | 72 2.83 |
| Head Tube Length (D) | 120 4.72 |
| Head Tube Angle (E) | 70 2.76 |
| Effective Top Tube (F) | 600 23.62 |
| Bb Height (G) | 327 12.87 |
| Bb Offset (H) | 12 0.47 |
| Chainstay Length (I) | 385 15.16 |
| Wheelbase (J) | 1047.2 41.23 |
| Frame Reach (K) | 416.7 16.41 |
| Frame Stack (L) | 564.27 22.22 |
| Standover Height (M) | 651.9 25.67 |
