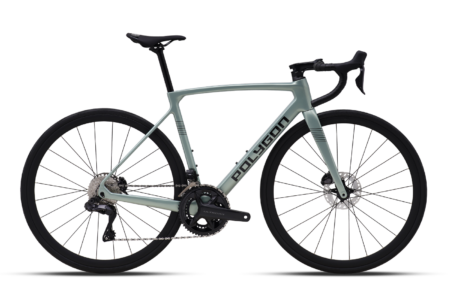

STRATTOS S ACX: One Bike to Rule Them All

Endurance Road Comfort | ACX Carbon Frame | 2 Available Builds

Whether you're tackling your local climbs or century-long endurance rides, the Polygon STRATTOS S ACX delivers a smooth, stable, and incredibly fast ride on any tarmac. Built around a lightweight performance ACX carbon frame (UCI-approved) and with plenty of tire clearance, this may be our most versatile road bike yet.

Bike type:

STRATTOS S7X

$3,499.00

Color

Size

Clear

Find my size

To place an order, please choose size and color first. This item is now available. Learn more.

Buy Now FIND DEALER

[yith_wcwl_add_to_wishlist] Wishlist
Compare
Share

SKU : N/A

Features

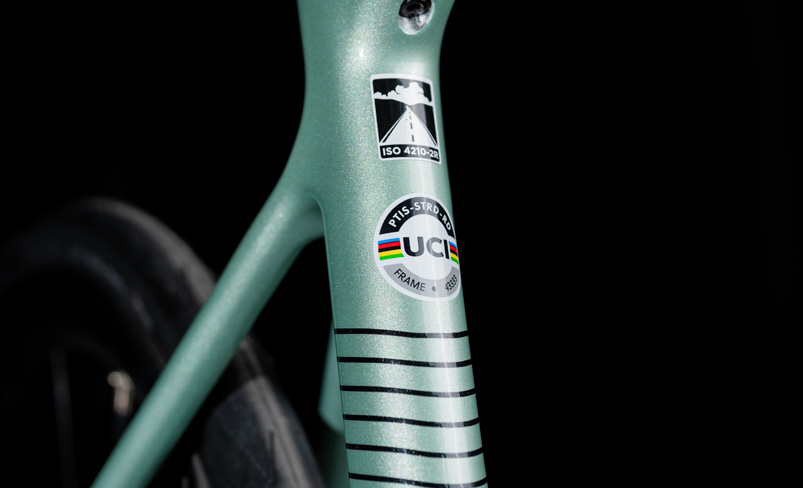

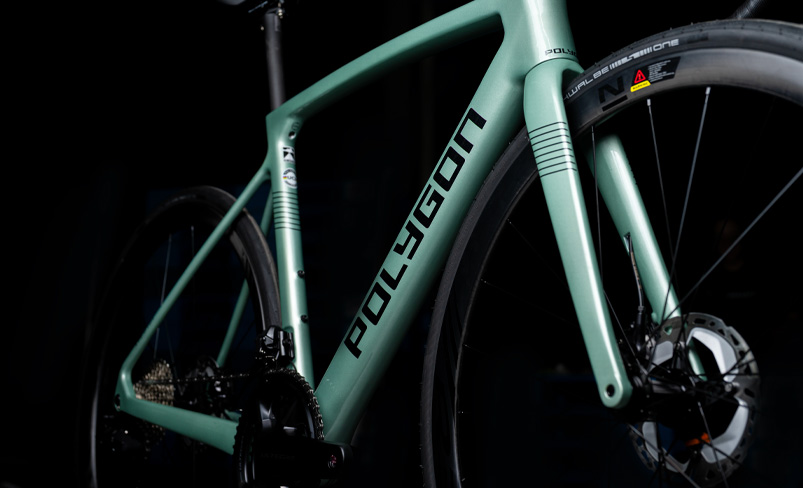

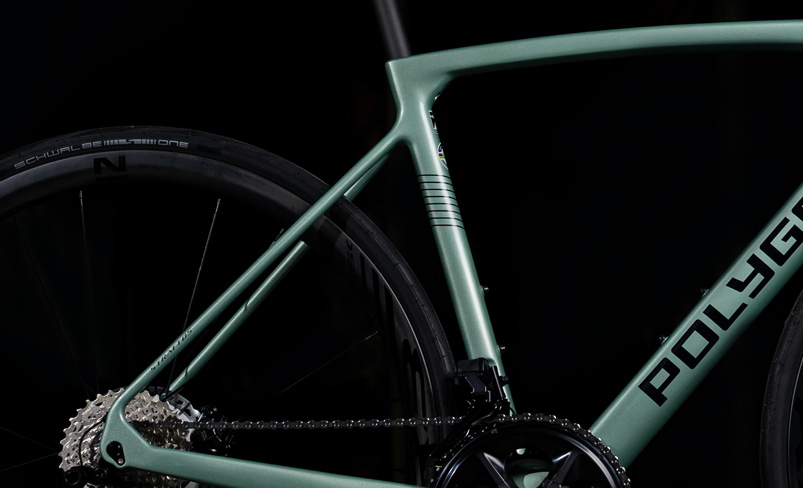

ACX Carbon Frame Built for Compliance

The STRATTOS S range is crafted from ACX carbon, specifically tuned to balance lightweight performance with vibration dampening.
Precision Handling: Tapered Carbon Steerer

The STRATTOS S frameset features a fully carbon, tapered steerer tube and fork. This rigid front-end allows for confident descending and high-speed stability.

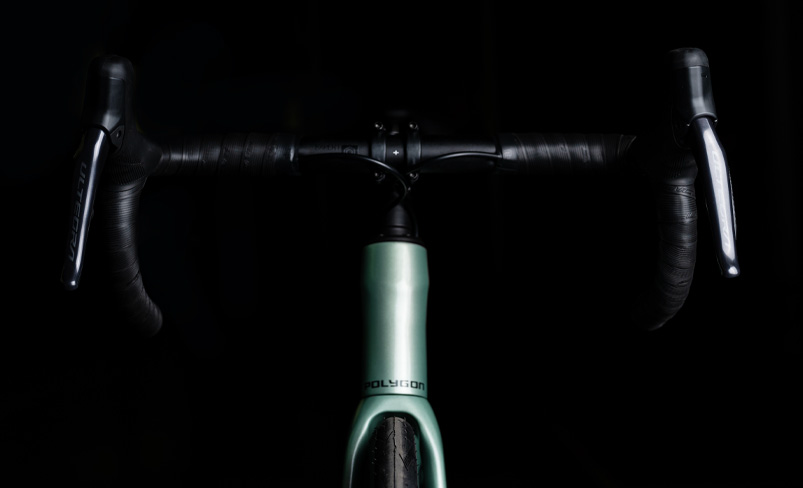

LINC Semi-Integrated Carbon Cockpit

The LINC component line offers the perfect middle ground: the aerodynamic gains of internal routing with the mechanical adjustability of a semi-integrated handlebar and stem. Maintain your bike with ease without sacrificing a watt of efficiency.

Specification

*Specifications, colors, and product availability are subject to change without prior notice.

Frameset

Frameset

ACX ALL-ROUND UCI APPROVED

Fork

Full Carbon, Taper 1-1/8" To 1-1/2", Flat Mount Disc Brake

Frame Color

BLACK

Decal Color

SILVER
Drivetrain

Shifter

Shimano 105 Di2 ST-R7170, 2x12-Speed Dual Control Lever

Crank

SHIMANO 105 FC-R7100 50/34T

Cassette

Shimano 105 CS-R7101, 11-34T

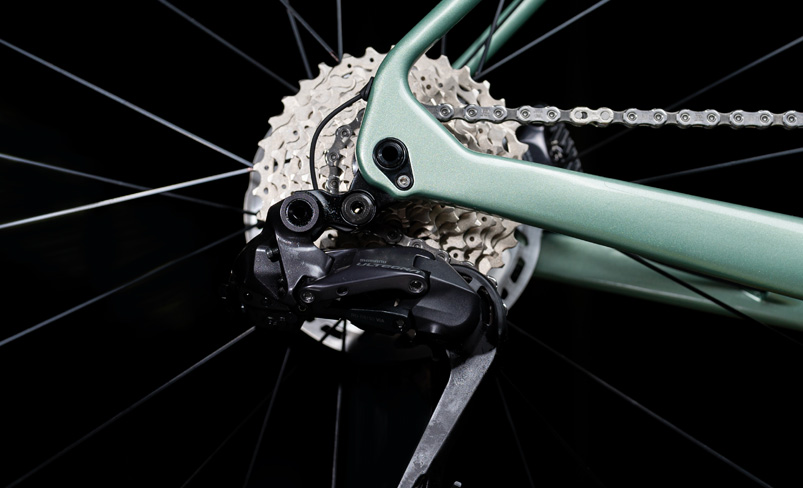

Rear Derailleur

Shimano 105 Di2 RD-R7150 Direct Attach

BB

SHIMANO BB-RS500-PB

Chain

KMC X-12
Cockpit

Saddle

Entity Flux2, Cr-Mo Ø 7mm

Seatpost

POLYGON XPERT ALLOY, DxL: 27.2 x 350mm, 15mm, Integrated Shape W/ Bolt

Handlebar

POLYGON XPERT ALLOY, 31.8mm, 125mm Drop, 70mm Reach

Handlestem

POLYGON XPERT ALLOY, 31.8mm, 10°

Headset

INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40
Wheel & Tire

Wheel Set

POLYGON RD6 DISC

Wheel Size

700C

Tire

SCHWALBE ONE ADDIX TLE 700x28C

Rim

622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY

Hub

F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS CL / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CL
Brake

Brake Lever

SHIMANO 105 ST-R7170

Brake Caliper

SHIMANO 105 BR-R7170 HYDRAULIC

Rotor

SHIMANO SM-RT70 160MM & 140MM

Geometry & Size

mm inch

Find your size

	XXS	XS	S	M	L	XL	XXL
Height (cm)	151-161	154-164	162-170	168-176	174-181	180-187	185-195
Seat Tube Length (A)	439.1 17.29	454.2 17.88	474.2 18.67	500 19.69	524.7 20.66	554.3 21.82	584.2 23
Seat Tube Angle (B)	75 2.95	75 2.95	74.5 2.93	74 2.91	73.5 2.89	73 2.87	73 2.87
Effective Seat Tube Angle (C)	75 2.95	75 2.95	74.5 2.93	74 2.91	73.5 2.89	73 2.87	73 2.87
Head Tube Length (D)	90 3.54	90 3.54	105 4.13	130 5.12	155 6.1	185 7.28	215 8.46
Head Tube Angle (E)	71.5 2.81	72 2.83	72.5 2.85	73 2.87	73 2.87	73 2.87	73 2.87
Effective Top Tube (F)	505 19.88	515 20.28	525 20.67	540 21.26	555 21.85	570 22.44	590 23.23
Bb Height (G)	271.5 10.69	271.5 10.69	271.5 10.69	274 10.79	274 10.79	276.5 10.89	276.5 10.89
Bb Offset (H)	72.5 2.85	72.5 2.85	72.5 2.85	70 2.76	70 2.76	67.5 2.66	67.5 2.66
Chainstay Length (I)	415 16.34	415 16.34	415 16.34	415 16.34	415 16.34	417 16.42	417 16.42
Wheelbase (J)	969.7 38.18	975.6 38.41	977.3 38.48	984.9 38.78	995 39.17	1007.9 39.68	1027.8 40.46
Frame Reach (K)	372.9 14.68	382.5 15.06	383.4 15.09	386.9 15.23	389.8 15.35	391.5 15.41	402.8 15.86
Frame Stack (L)	493.2 19.42	494.7 19.48	510.7 20.11	533.9 21.02	557.7 21.96	583.8 22.98	612.4 24.11
Standover Height (M)	717.13 28.23	729.43 28.72	748.69 29.48	775.85 30.55	801.17 31.54	832.25 32.77	862.17 33.94
