GET YOU AROUND

Best way to experience home.

Through Kalosi Lanes Evo, we're trying to experience home differently. It easily takes you from A to B, takes you to run errands faster, and brings you lots and lots of O2. This urban bike comes with a suspension fork to give you a smooth ride while taking you faster with our latest pedal assist system; so you'll experience its comfort, at your home.

Polygon Kalosi Lanes Lady Electric Hybrid Bike

Polygon Kalosi Lanes Lady Electric Hybrid Bike Green

KALOSI LANES EVO LOW STEP

Color

Size

Clear

Find my size

FIND DEALER

SKU : 503299

Features

Built for riders

Kalosi Lanes Evo comes with high-step frames and mid-step frames to give you an optimum comfort. You choose what’s best.
Double you

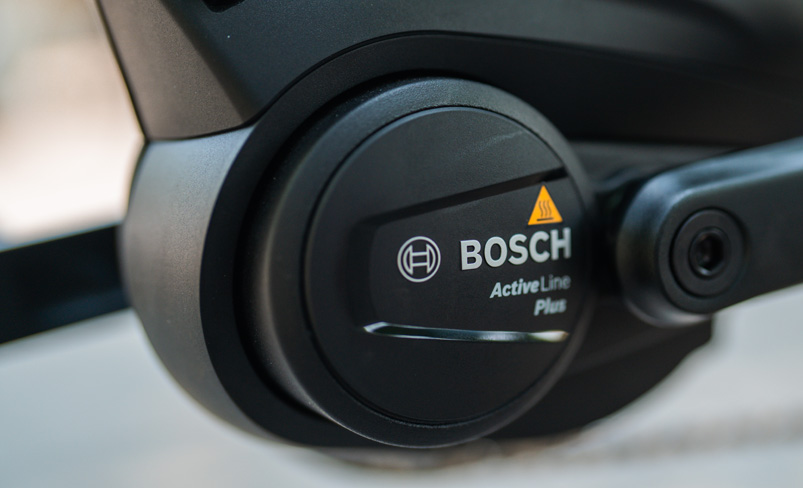

Our pedal assist system will multiply your effort up to max 32 km/h with our assist variations. Enjoy flat hills and smooth paved roads up to 185 km miles of range when fully charged.
Easy to ride, yet easy to maintain

It’s water resistant! Rider doesn’t have to worry when it rains or goes through puddles.
Rough conditions won’t stop us

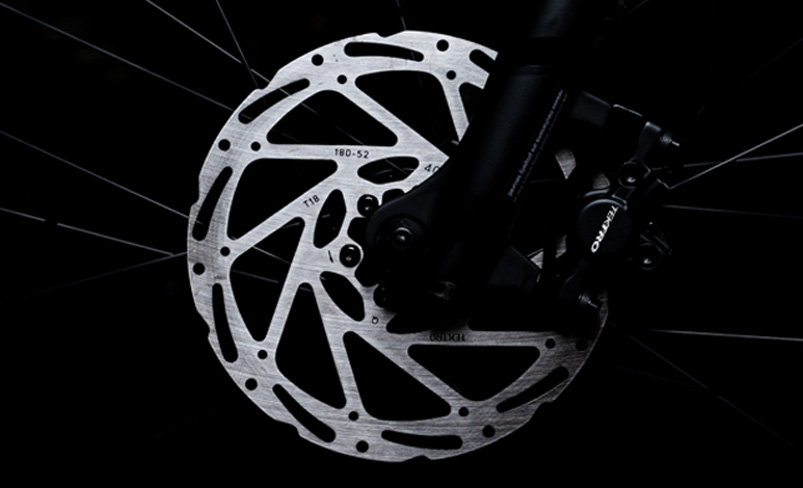

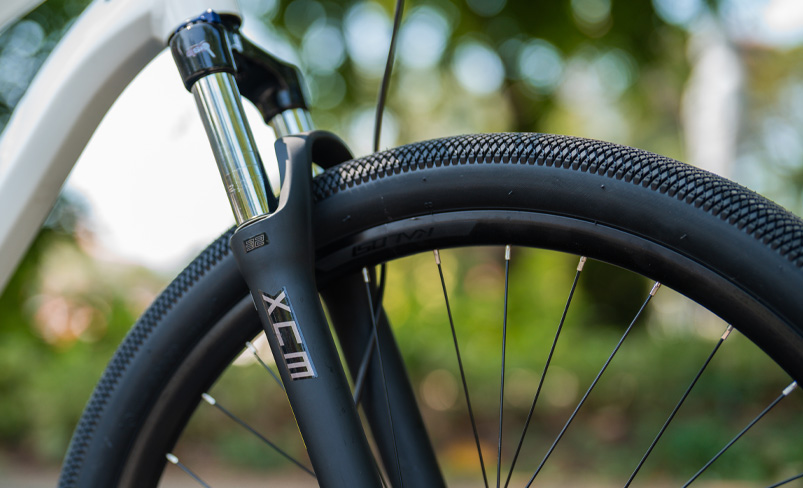

With its suspension fork to smooth out the ride, and Hydraulic Disc Brakes that let you experience a smooth and powerful braking performance; believe me, there’s no condition that can stop you to explore more.

Specification

Frameset

Frameset

ALX TREKKING FRAME

Fork

SUNTOUR XCM32 HLO 100mm TRAVEL

Size

S, M

Frame Color

BLACK / GREEN

Decal Color

BRONZE / GREEN
Drivetrain

Shifter

SHIMANO CUES SL-U6000 1x10-SPEED TRIGGER

Crank

SHIMANO FC-E5010 W/ SM-CRE50 44T CL:46.5mm W/ DOUBLE CG

Cassette

SHIMANO CS-LG300-10 11-48T

Rear Derailleur

SHIMANO CUES RD-U6000-GS DIRECT ATTACH

BB

SHIMANO DU-E5000 DRIVE UNIT

Chain

SHIMANO CN-LG500

Pedal

PP PEDALS W/ REFLECTOR
Cockpit

Saddle

LINC EASE, STEEL ø7mm

Seatpost

POLYGON EXPERT ALLOY, DxL: 30.9 x 300mm

Handlebar

POLYGON EXPERT ALLOY, W: 700mm

Handlestem

POLYGON XPERT ALLOY, EXT: 60mm (S) / 80mm (M, L), BB: 31.8mm, R/D: 7degree

Headset

ZERO STACK (ZS) SEMI INTEGRATED SEALED BEARING FOR TAPER H/T, ZS 44/28.6 | ZS 56/30
Wheel & Tire

Wheel Set

ALLOY DOUBLE WALL FOR DISC BRAKE

Wheel Size

27.5"

Tire

SCHWALBE SUPER MOTO-X 27.5"x2.40" (584-62)

Rim

ALLOY DOUBLE WALL 584x30C DEPTH:23mm 32H FOR TYRE 584-54/76

Hub

F: JOYTECH D761DSE QRx100mm 32H CENTERLOCK / R: JOYTECH D762DSE QRx135mm 32H CENTERLOCK

Spokes

F: STAINLESS J-BEND 14G NDS:270mm DS:270mm / R: STAINLESS J-BEND 14G NDS:270mm DS:270mm
Brake

Brake Lever

SHIMANO BR-MT201 HYDRAULIC DISC BRAKE

Brake Caliper

SHIMANO BR-MT201 HYDRAULIC DISC BRAKE

Rotor

SHIMANO F:SM-RT10 R:RT-EM600 180mm CENTER LOCK
Electric Parts

Motor

SHIMANO DU-E5000 MID MOTOR, CONTINUOUS RATED POWER 250Watt, MAXIMUM TORQUE 40Nm

Sensor

SHIMANO SM-DUE11 FOR REAR ROTOR WITH MAGNET BRACKET

Battery

SHIMANO BT-E8010 FOR DOWN TUBE - 504Wh (36V, 14Ah)

Geometry & Size

mm inch

Find your size

	S	M
Height (cm)	151-160	161-170
Seat Tube Length (A)	430 16.93	460 18.11
Seat Tube Angle (B)	74.5 2.93	75 2.95
Effective Seat Tube Angle (C)	74.5 2.93	75 2.95
Head Tube Length (D)	140 5.51	120 4.72
Head Tube Angle (E)	71 2.8	71 2.8
Effective Top Tube (F)	525 20.67	546 21.5
Bb Height (G)	287 11.3	287 11.3
Bb Offset (H)	70 2.76	70 2.76
Chainstay Length (I)	460 18.11	460 18.11
Wheelbase (J)	1067 42.01	1050 41.34
Frame Reach (K)	390 15.35	380 14.96
Frame Stack (L)	561 22.09	542 21.34
Standover Height (M)	528 20.79	525 20.67
