STRATTOS C: Ride All Day, Every Day
STRATTOS C9 AXS
Features
-
ACX Carbon Frame Built for Compliance
The STRATTOS C is crafted from ACX carbon, specifically tuned to balance lightweight performance with vibration dampening. Unlike stiff race frames, this layup is engineered to absorb road chatter, allowing you to ride further with less muscular fatigue.
-
34mm All-Road Tyre Clearance
With clearance for up to 34mm tyres, the STRATTOS C offers true all-road versatility. Run higher-volume tyres at lower pressures to maximize grip and comfort, whether you're tackling smooth tarmac or light gravel paths.
-
LINC Semi-Integrated Carbon Cockpit
The LINC component line offers the perfect middle ground: the aerodynamic gains of internal routing with the mechanical adjustability of a semi-integrated handlebar and stem. Maintain your bike with ease without sacrificing a watt of efficiency.
-

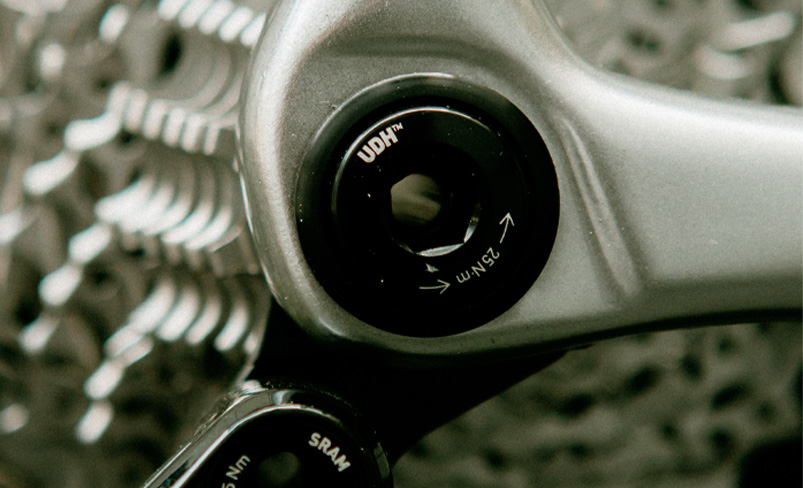

SRAM UDH (Universal Derailleur Hanger)
Future-proof your drivetrain. By including the SRAM UDH, the STRATTOS C is fully compatible with the latest "Hangerless" Transmission groupsets and ensures you can find a replacement part in almost any bike shop worldwide.
Specification
-
Frameset
FramesetForkFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChain
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| XXS | XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|---|
| Height (cm) | 151-161 | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 | 185-195 |
| Seat Tube Length (A) | 400 15.75 | 430 16.93 | 470 18.5 | 520 20.47 | 560 22.05 | 580 22.83 | 610 24.02 |
| Seat Tube Angle (B) | 74.5 2.93 | 74.5 2.93 | 74 2.91 | 73.5 2.89 | 73 2.87 | 73 2.87 | 73 2.87 |
| Effective Seat Tube Angle (C) | 74.5 2.93 | 74.5 2.93 | 74 2.91 | 73.5 2.89 | 73 2.87 | 73 2.87 | 73 2.87 |
| Head Tube Length (D) | 100 3.94 | 115 4.53 | 125 4.92 | 136 5.35 | 162 6.38 | 191 7.52 | 217 8.54 |
| Head Tube Angle (E) | 70.5 2.78 | 70.5 2.78 | 71.5 2.81 | 72 2.83 | 72 2.83 | 72 2.83 | 72 2.83 |
| Effective Top Tube (F) | 498.4 19.62 | 507.2 19.97 | 525.1 20.67 | 542.4 21.35 | 564.3 22.22 | 580.97 22.87 | 597.61 23.53 |
| Bb Height (G) | 268 10.55 | 268 10.55 | 268 10.55 | 270.5 10.65 | 270.5 10.65 | 273 10.75 | 273 10.75 |
| Bb Offset (H) | 76.5 3.01 | 76.5 3.01 | 76.5 3.01 | 74 2.91 | 74 2.91 | 71.5 2.81 | 71.5 2.81 |
| Chainstay Length (I) | 415 16.34 | 415 16.34 | 415 16.34 | 414 16.3 | 415 16.34 | 415 16.34 | 415 16.34 |
| Wheelbase (J) | 975.1 38.39 | 985.1 38.78 | 989.3 38.95 | 995.2 39.18 | 1012.3 39.85 | 1030.7 40.58 | 1047.84 41.25 |
| Frame Reach (K) | 355 13.98 | 360 14.17 | 369 14.53 | 378 14.88 | 387 15.24 | 396 15.59 | 405 15.94 |
| Frame Stack (L) | 516.9 20.35 | 531.1 20.91 | 544.3 21.43 | 555 21.85 | 580 22.83 | 605 23.82 | 630 24.8 |
| Standover Height (M) | 686.1 27.01 | 711.4 28.01 | 747.4 29.43 | 784.5 30.89 | 821.7 32.35 | 845 33.27 | 868.9 34.21 |
FAQ
-
What’s the difference between the All-Rounder (Strattos S) and the Endurance Road Bike (Strattos C)?
The All-Rounder balances speed, comfort, and versatility for everyday rides.
The Endurance bike focuses on long-distance comfort, stability, and reduced fatigue. -
Which one should I choose?
Choose the All-Rounder if you want one bike for everything.
Choose the Endurance bike if you regularly ride long distances or want maximum comfort. -
Who is the Strattos C best for?
Riders who do long rides, gran fondos, or prefer a relaxed position with better comfort over hours.
-
Does it support wider tires?
Yes, it fits wider tires for better comfort and grip, up to 34c.
-
Can I ride the Strattos C on rough or uneven roads?
Yes, it handles imperfect roads well, especially with wider tires.
-
Can I mount accessories like racks, bags, or fenders?
Yes, the Strattos C supports essentials like bottle cages, saddle bags, and small mounts. Compatibility varies by model
