STRATTOS S: Unbeatable Value Road Bike

Endurance Road Comfort | ALX Alloy Frame | 4 Available Builds

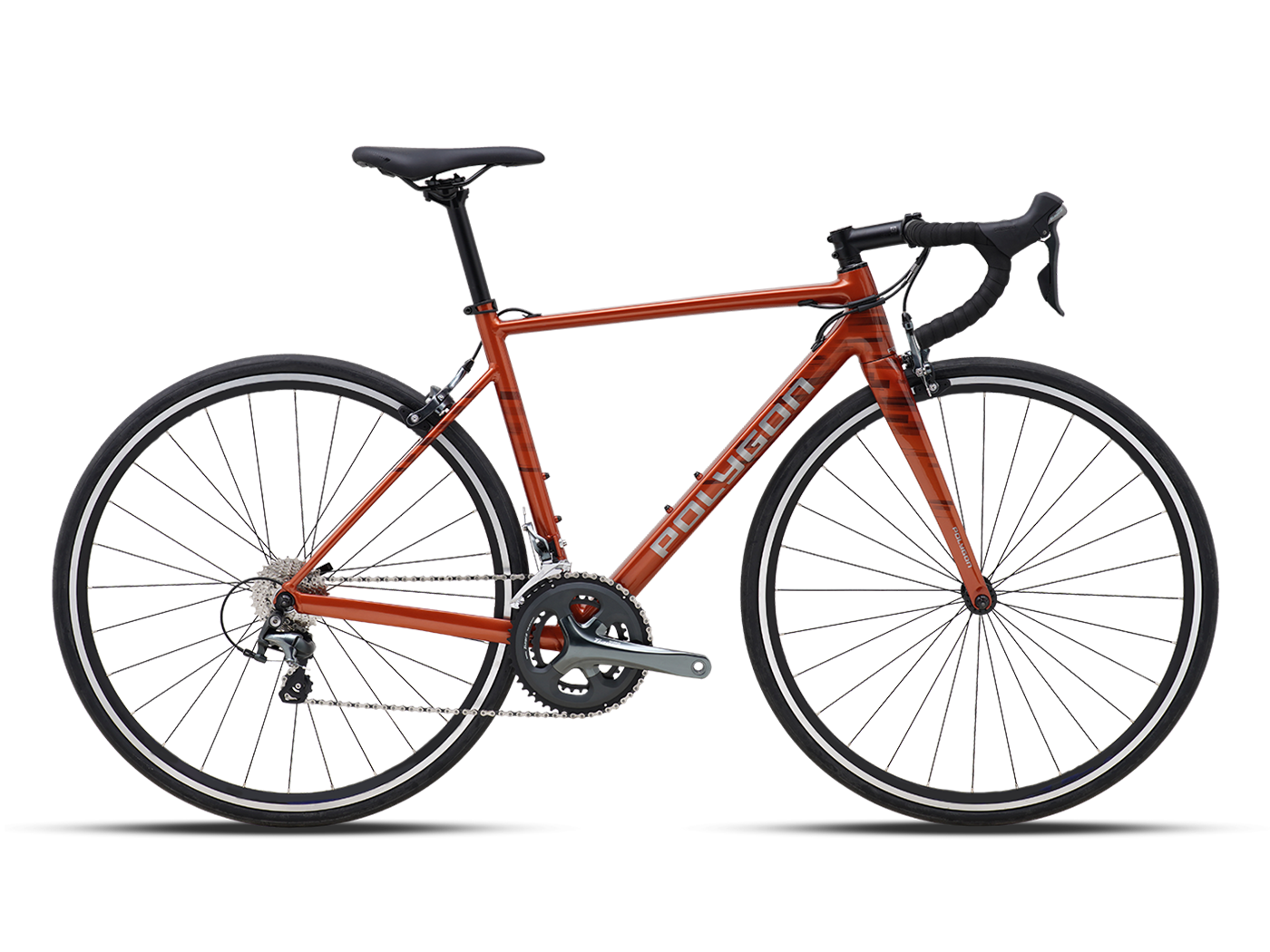

The Polygon STRATTOS S road bike is your gateway to unforgettable road cycling adventures. Designed around a lightweight ALX alloy frame and vibration-damping carbon fork, we spec'd a mix of Shimano components to offer unbeatable value. The STRATTOS S is the perfect first road bike for many but a quality ride for all.

STRATTOS S4

$799.00

Color

Size

Clear

Find my size

FIND DEALER

SKU : 503200

Features

ALX Performance Alloy Frame

The STRATTOS S ALX is built using 6061 triple-butted aluminum tubing. This heat-treated alloy is engineered to be significantly lighter than standard aluminum while maintaining the rugged durability required for real-world riding and commuting.
ACX Vibration-Dampening Carbon Fork

Every model in the STRATTOS S ALX line features a full ACX carbon fork. This ensures greater comfort by reducing road buzz and hand fatigue.

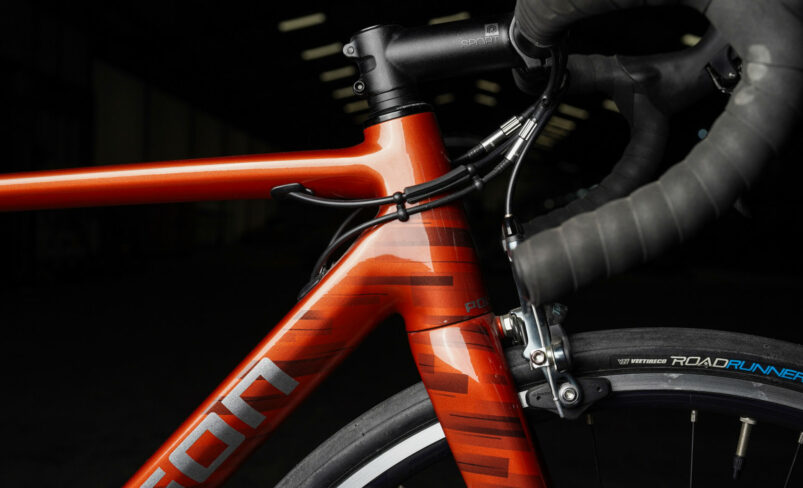

Internal Cable Routing

Borrowing from the premium ACX lineup, the ALX frames utilize internal cable routing through the downtube.
Brake Options

Choose between lightweight Rim Brakes for classic simplicity or Disc Brakes for superior stopping power.

Specification

*Specifications, colors, and product availability are subject to change without prior notice.

Frameset

Frameset

ALX ALL-ROUND

Fork

ACX ALL-ROUND

Frame Color

BRONZE

Decal Color

LIGHT GREY
Drivetrain

Shifter

SHIMANO TIAGRA ST-4700, 2x10-SPEED DUAL CONTROL LEVER

Crank

SHIMANO TIAGRA FC-4700 50/34T

Cassette

SHIMANO CS-HG500 12-28T SPROCKET

Rear Derailleur

SHIMANO TIAGRA RD-4700-SS DIRECT ATTACH

BB

SHIMANO BSA 68mm THREADED FOR 2-PIECE CRANKSET

Chain

KMC X10

Pedal

ALLOY CAGE & BODY W/ REFLECTOR
Cockpit

Saddle

BLACK, STEEL ø 7mm

Seatpost

POLYGON SPORT ALLOY, DxL: 27.2 x 350mm

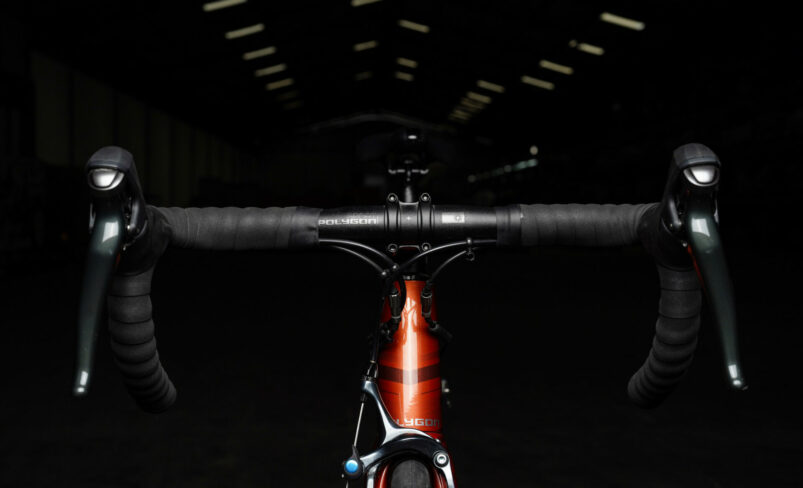

Handlebar

POLYGON SPORT ALLOY, W: 400mm (XS, S, M) / 420mm (L, XL) , BB: 31.8mm, R/D: 124mm, B/R: 80mm

Handlestem

POLYGON OE ALLOY, EXT: 90mm (XS, S, M) / 105mm (L, XL), BB: 31.8mm, R/D: 10degree

Headset

ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40
Wheel & Tire

Wheel Set

C04 ALLOY

Tire

PERFORMANCE TIRE 700x28C

Rim

622-19 28H FOR TYRE 622-28/62 W/ CNC & TUBELESS READY

Hub

F: ALLOY QRx100mm 28H / R: ALLOY QRx130mm 28H
Brake

Brake Lever

SHIMANO TIAGRA ST-4700

Brake Caliper

SHIMANO TIAGRA BR-4700

Geometry & Size

mm inch

Find your size

	XS	S	M	L	XL
Height (cm)	154-164	162-170	168-176	174-181	180-187
Seat Tube Length (A)	450 17.72	470 18.5	500 19.69	520 20.47	550 21.65
Seat Tube Angle (B)	75 2.95	74.5 2.93	74 2.91	73.5 2.89	73 2.87
Effective Seat Tube Angle (C)	75 2.95	74.5 2.93	74 2.91	73.5 2.89	73 2.87
Head Tube Length (D)	90 3.54	105 4.13	130 5.12	155 6.1	185 7.28
Head Tube Angle (E)	72 2.83	72.5 2.85	73 2.87	73 2.87	73 2.87
Effective Top Tube (F)	515 20.28	525 20.67	540 21.26	555 21.85	570 22.44
Bb Height (G)	272 10.71	272 10.71	274.5 10.81	274.5 10.81	277 10.91
Bb Offset (H)	72.5 2.85	72.5 2.85	70 2.76	70 2.76	67.5 2.66
Chainstay Length (I)	415 16.34	415 16.34	415 16.34	415 16.34	415 16.34
Wheelbase (J)	975.54 38.41	977.32 38.48	984.83 38.77	995.01 39.17	1005.89 39.6
Frame Reach (K)	382.5 15.06	383.5 15.1	387.1 15.24	390 15.35	391.6 15.42
Frame Stack (L)	494.4 19.46	510.3 20.09	533.3 21	557.2 21.94	583.4 22.97
Standover Height (M)	696.7 27.43	715.7 28.18	746.5 29.39	767.1 30.2	797 31.38
