GILI VELO
2021
-
502697
-
LIFESTYLE ?LIFESTYLE ?Bikes have given us a lot. It helps us to live a life that we can be happy with and proud of; so we want to share that and bring a healthy and joyful day-to-day routine. Be ready to meet the beauty of fashion and sport. See more...
Specification
The specifications, colors, parts, and availability of the products can be subjects to alter without prior notification.
-
Frameset
FramesetForkDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChain
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRim
-
Brake
Brake LeverBrake CaliperRotor
-
Electric Parts
MotorSensorBattery

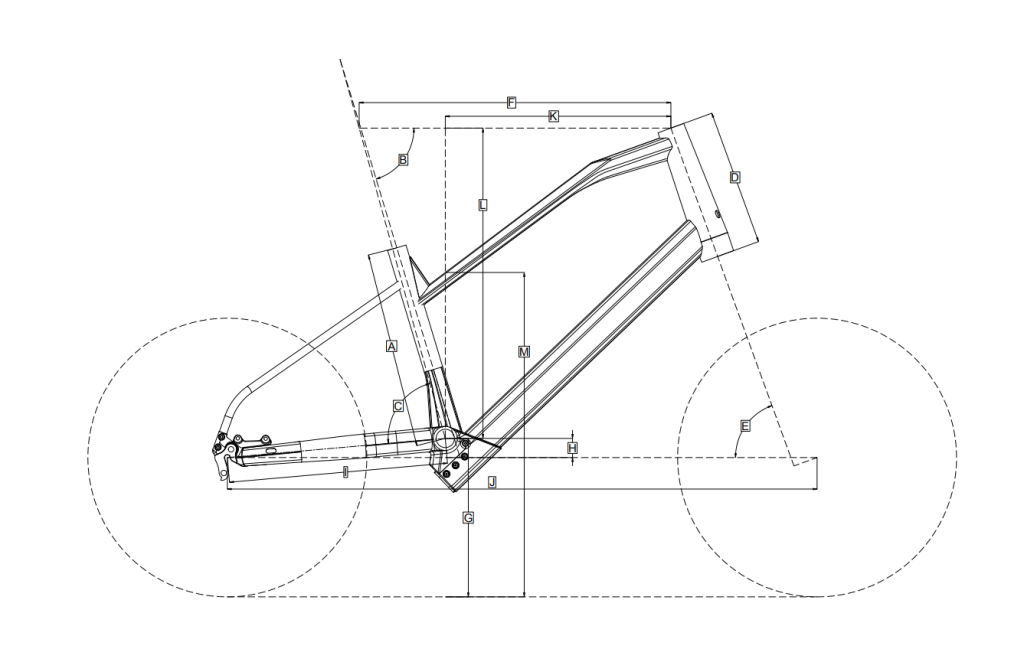

Geometry & Size
All Size | |
---|---|
Height (cm) | 150-175 |
Seat Tube Length (A) | 360 14.17 |
Seat Tube Angle (B) | 73.25 2.88 |
Effective Seat Tube Angle (C) | 74.5 2.93 |
Head Tube Length (D) | 250 9.84 |
Head Tube Angle (E) | 70 2.76 |
Effective Top Tube (F) | 570 22.44 |
Bb Height (G) | 290 11.42 |
Bb Offset (H) | 35 1.38 |
Chainstay Length (I) | 400 15.75 |
Wheelbase (J) | 1078.5 42.46 |
Frame Reach (K) | 412.5 16.24 |
Frame Stack (L) | 567.9 22.36 |
Standover Height (M) | 594 23.39 |
