COLLOSUS TLE
Unmatched performance in an SL e-trail bike
Features
-
Robust IFS linkage construction
The main part of the IFS system is the double link at the bottom of the seat tube, on the TLE we separated the links which gives us more freedom to keep the same anti squat, which was all dictated by the characteristics of the previous model.
-
A ride that’s balanced, powerful, and light
With a rear end length of 450mm, the Collosus TLE delivers a well-balanced ride. The longer chainstays are designed to seamlessly accommodate the Bosch Performance Line SX motor, providing a powerful 55 Nm of torque paired with a 400 Wh battery. It climbs with ease and descends with the confidence of a full enduro bike.
-
Smart design, built-in convenience
From a 750ml bottle fitment to Power More range extender compatibility with a 250Wh battery included, every detail is built for convenience. The top tube blends form and function, letting riders check sag while seated. With internal cable routing and dropper post integration, the Collosus TLE stays clean and purpose-driven.
-
UDH compatibility for next-gen shifting
With the UDH dropouts, the Collosus TLE is now compatible with T-Type drivetrains for seamless integration with modern shifting systems.
-
Ready for a more robust dropper post
Now featuring a 34.9mm seat tube diameter to support stronger, more reliable dropper posts.
-
Double-row bearings, consistent performance
The frame runs 3901 double row sealed bearings, ensuring unparalleled consistency across all main pivot points, including the shock yoke.
Choose your series
Build Specs
| Kit |

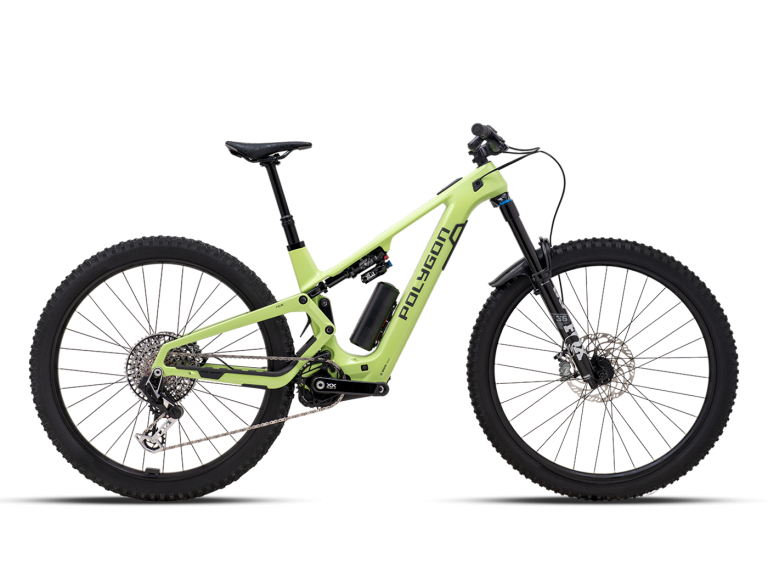

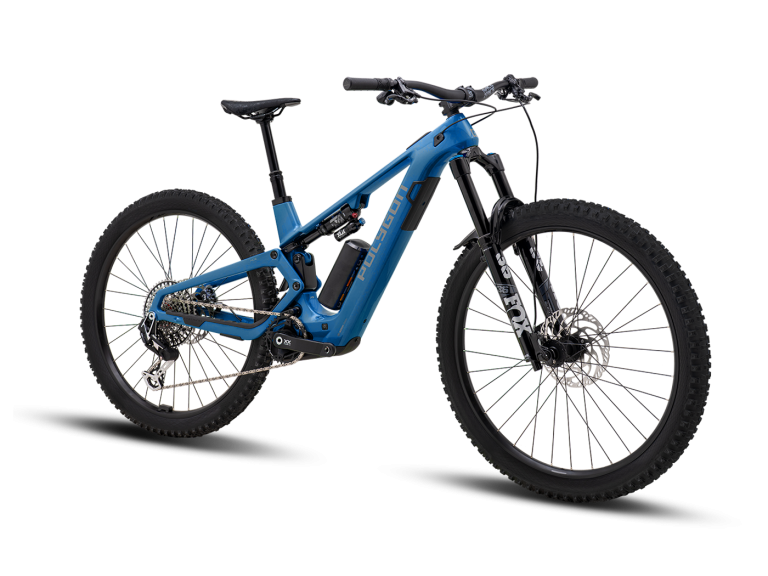

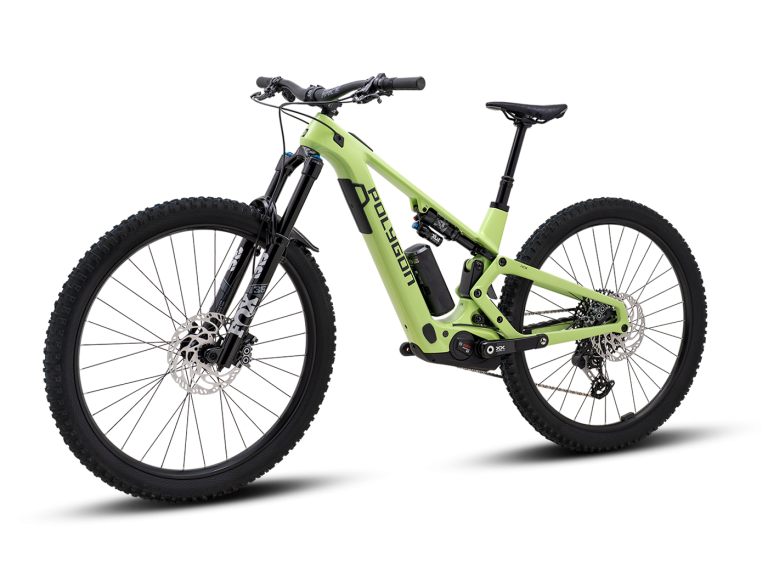

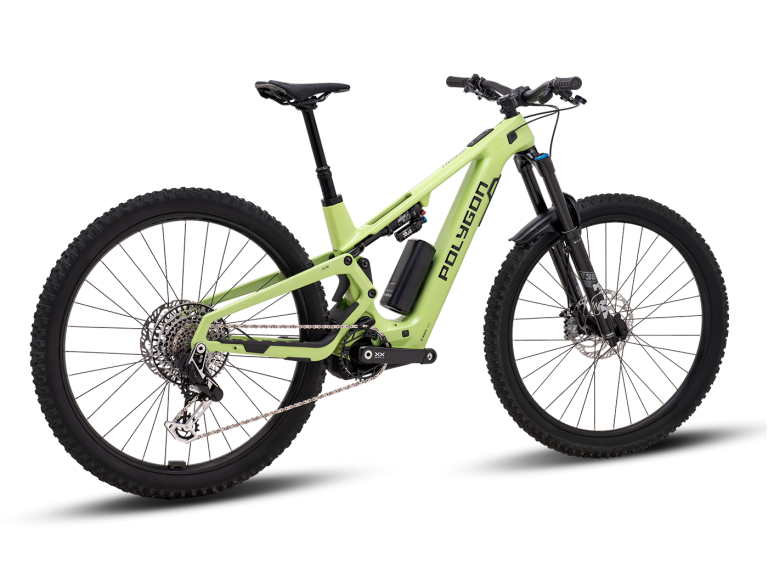

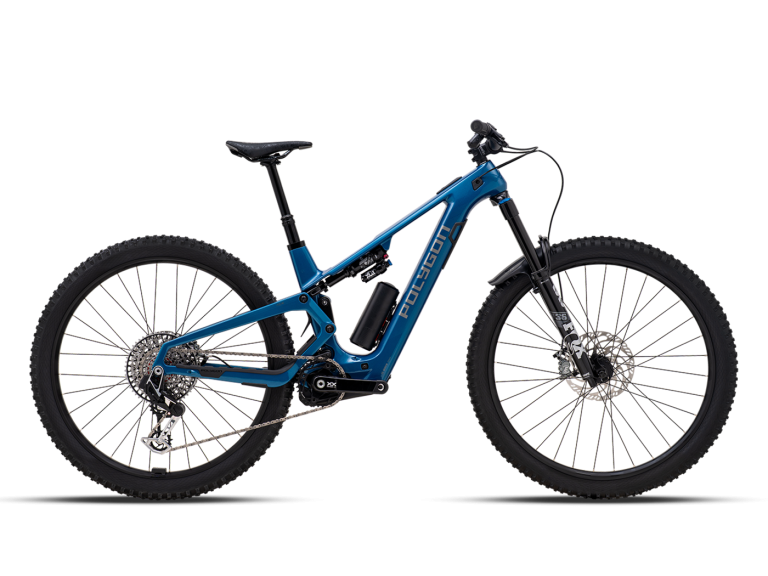

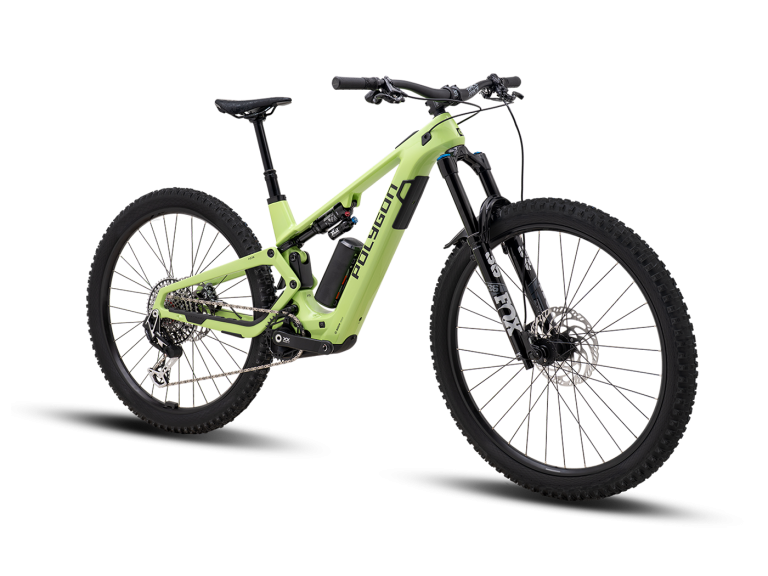

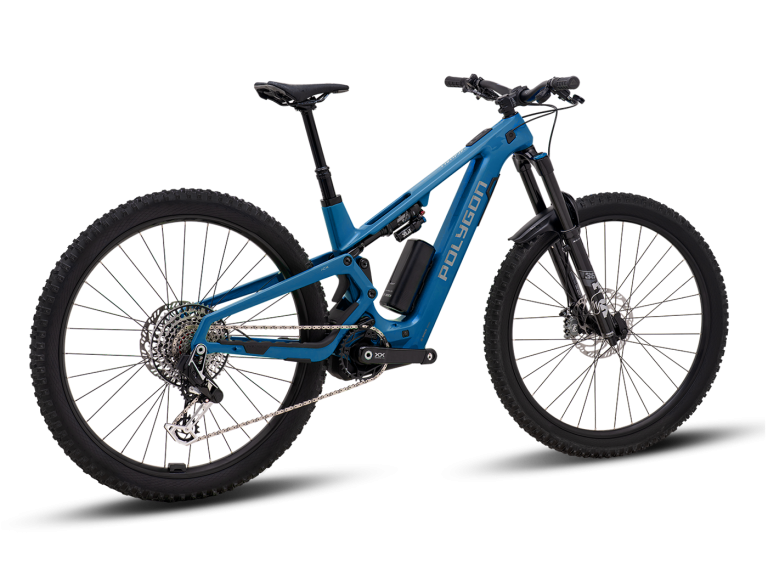

COLLOSUS TLE 0 AXS
|

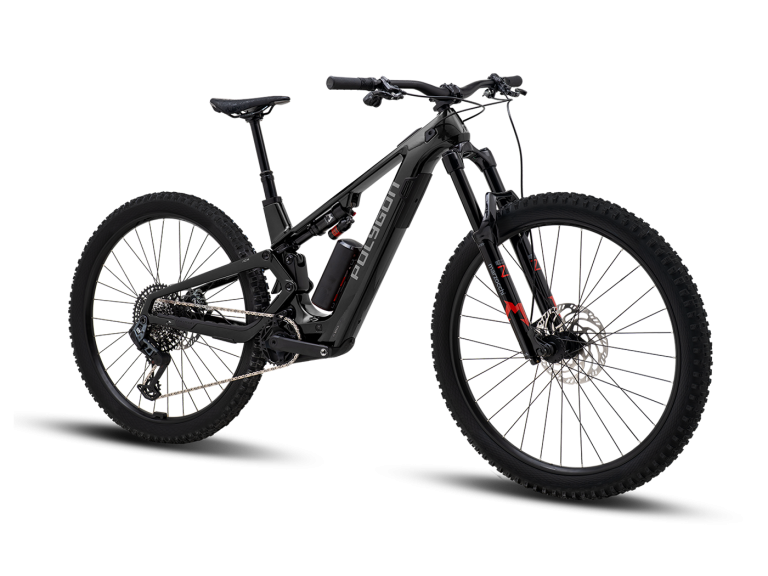

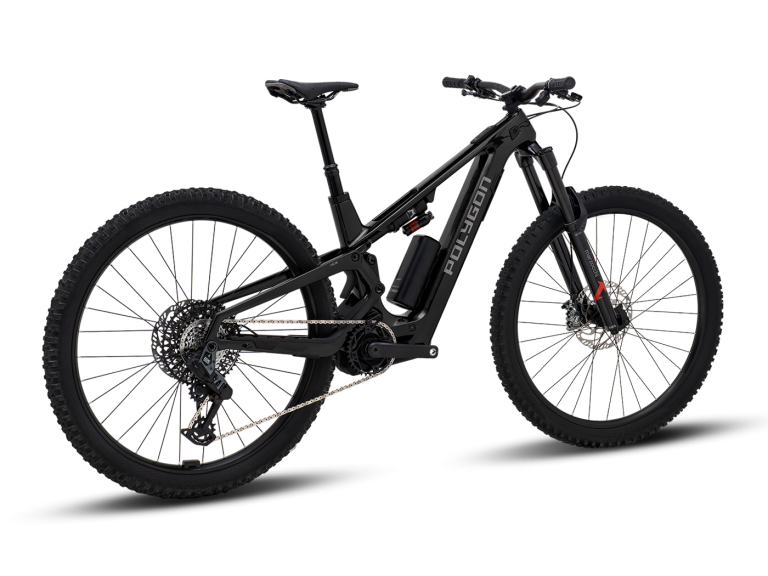

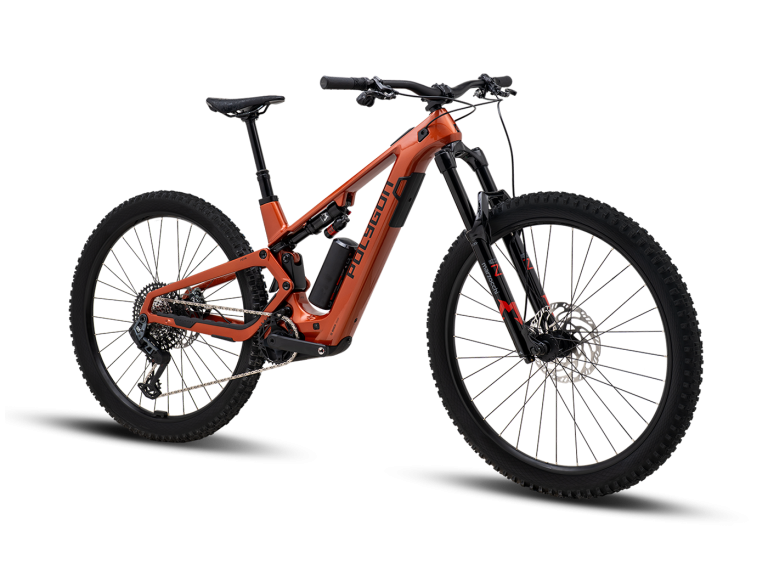

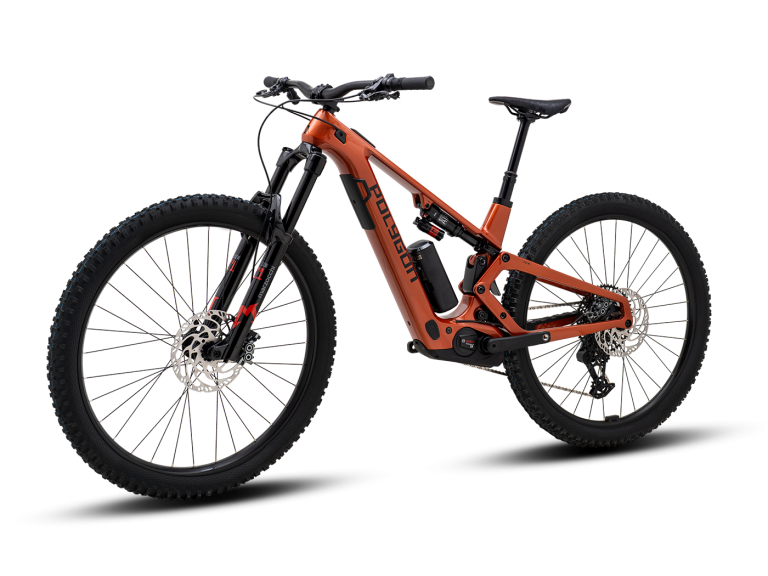

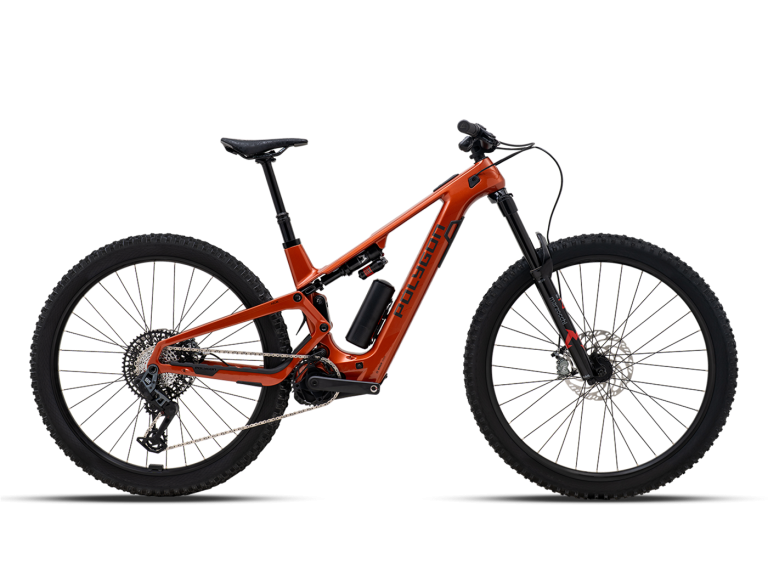

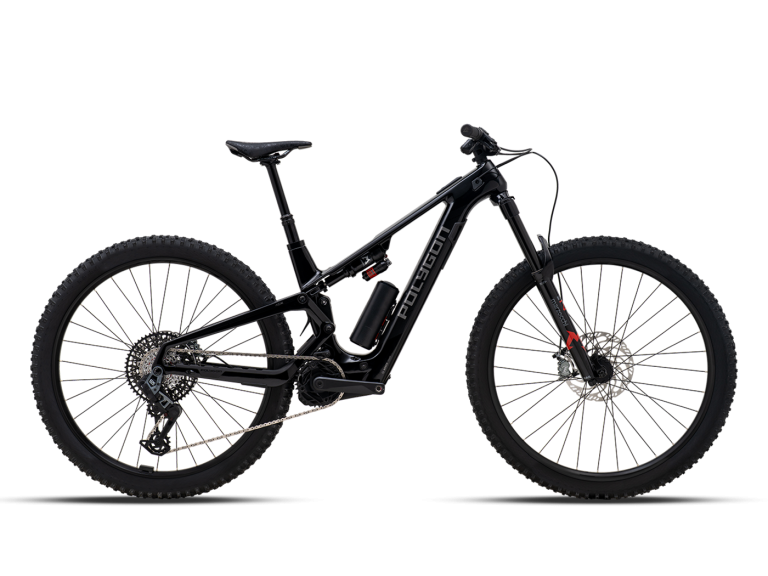

COLLOSUS TLE 8 AXS
|
|---|---|---|
| Frame | ACX e-MTB | ACX e-MTB |
| Fork | FOX PERFORMANCE ELITE 36, FLOAT EVOL, 160mm TRAVEL, OFFSET: 44mm, HSC-LSC, HSR-LSR, W/ FENDER | MARZOCCHI BOMBER Z1, 160mm TRAVEL, OFFSET: 44mm, AIR SPRING, RAIL DAMPER,REBOUND ADJUST |
| Rear Shock | FOX FLOAT X PERFORMANCE ELITE, E2E: 210x55mm | MARZOCCHI BOMBER AIR, E2E: 210x55mm |
| Shifter | SRAM EC AXS POD CONTROLLER, 1x12-SPEED TRIGGER | SRAM EC AXS POD CONTROLLER, 1x12-SPEED TRIGGER |
| Crank Set | SRAM XX CARBON T-TYPE, 34T | SRAM CR T-TYPE, 34T |
| Cassette | SRAM XX EAGLE T-TYPE 10-52T XD DRIVER | SRAM GX EAGLE T-TYPE 10-52T XD DRIVER |
| Rear Derailleur | SRAM XX EAGLE T-TYPE AXS | SRAM GX EAGLE T-TYPE AXS |
| Tire | MAXXIS DISSECTOR 29"x2.40" 622x65, TLE | MAXXIS DISSECTOR 29"x2.40" 622x65, TLE |
| Brake Lever | MAGURA HC3 | MAGURA HC3 |
| Brake Caliper | MAGURA MT7 HYDRAULIC DISC | MAGURA MT7 HYDRAULIC DISC |
| Rotor | MAGURA MDR C, 203MM 6-BOLT | MAGURA MDR C, 203MM 6-BOLT |
| Motor | BOSCH PERFORMANCE LINE SX BDU3145 | BOSCH PERFORMANCE LINE SX BDU3145 |
| Sensor | BOSCH RIM MAGNET | BOSCH RIM MAGNET |
| Battery | BOSCH COMPACTTUBE 400 FIXED MOUNT HORIZONTAL | BOSCH COMPACTTUBE 400 FIXED MOUNT HORIZONTAL |
FAQ
-
That doesn’t look like the IFS system, how is it the same as the N9?
The main part of the IFS system is the double link at the bottom of the seat tube, on the Collosus TLE we separated the links which gives us more freedom to keep the same anti squat, which was all dictated by the characteristics of the previous model.
-
Is the bike compatible with a coil shock?
Yes, the Collosus TLE is compatible with a coil shock. It comes stock with 140mm rear travel paired with a Fox Float X air shock (R model) and a 160mm Fox fork up front, matched with a confidence-inspiring 64° head angle. You can also “over-fork” it by 10mm to bump the fork travel up to 170mm if desired. Shock hardware sizes are 25mm x 8mm (front) and 15mm x 8mm (rear yoke).
-
What is the maximum tyre?
Max tire is 2.6”.
-
Can the bike be setup as a mullet?
No.
-
UDH derailleur hanger compatible?
Yes, the frames use UDH.
-
Can the bike fit a coil?
Yes, you can fit a coil shock.
-
What is the Dropper Post Insertion.?
It can fit a 200mm dropper in the Medium RAD brand - insertion will change depending on the size.
-
Why are the Chainstay all the same length?
The chainstays are the same length because we had to allow room for the Bosch Motor.
-
How do I charge the battery? And how long will it take?
The battery can be charged either installed in the bike, via the charging port on the left side in front of the motor, or detached from the bike using the additional connection port supplied with the charger. Charging to 50% takes. approximately 2 hours, while a full charge requires 4 hours.
A special note for Indonesia: please use a 220-240V charger, not a 110V charger, to avoid any potential issues.
-
I like to ride in mud, are the electronics weather-proof?
Yes. The BOSCH Performance Line SX systems are waterproof for use under normal riding conditions. Please do not use a high-pressure washer to clean your bike.
-
How fast can I ride?
When gravity is on your side, there is no limiting your speed beyond that of a “normal” MTB with 150mm of awesome suspension. As far as motor assistance is concerned, the BOSCH Performance Line SX systems will provide motor assistance up to 20mph (32km/h) in the USA and Indonesia, or 25km/h in Europe and Australia.
-
How far can I ride?
The range of any e-MTB depends on many variables, including terrain, gradients, rider weight, assistance mode, rider input, ambient temperature, etc. While 125 km adventures* are definitely achievable aboard the Collosus TLE, we recommend using the Range overview on the display for the best estimate. The range overview is recalculated continuously by calculating speed, rider behavior and power consumption. This means that range overview makes a prediction, which can vary depending on these different factors.
(*) With ECO mode.
-
What is the weight of the Collosus TLE?
Size M = 22.2 kg
(*) Applies to both Collosus TLE0 and Collosus TLE8 models.
