COLLOSUS N9
COLLOSUS N9 2022
-
502872
-
ENDURO ?ENDURO ?For us, Enduro bikes should be burlier to nail larger drops more efficiently and literally anything that the rugged mountain throws. And, yeah! We're here for all of that. We've packed all that we know these years to build you an Enduro bike that is faster on the descents and also for pedalling back uphill to start another one. Get ready to feel the rage of mountains and be in a class of your own. See more...

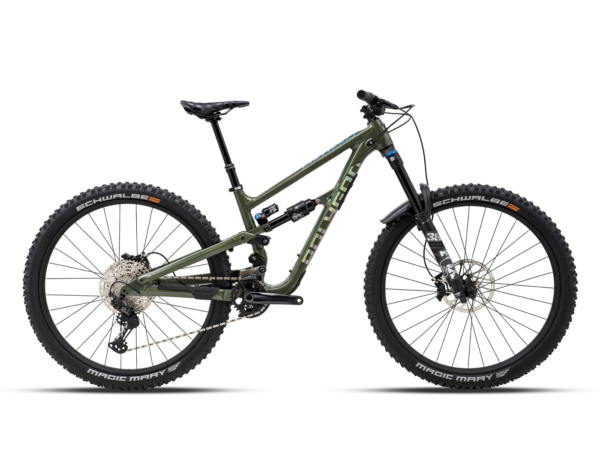

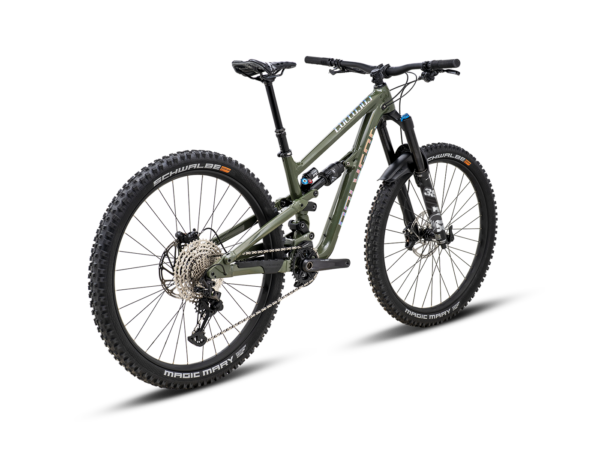

The Collosus N9 was built with purpose and passion - utilizing a combination of parts, and technology to handle the most demanding of terrain. An innovative aggressive and agile fast bike for those wanting to conquer their personal limitations in the mountains or race at the world level. The bike’s slack 63.5 degree head angle paired with 435mm chain stays and a 77 degree seat tube angle combines to create a bike that has no compromises; the all new 6-bar linkage provides an efficient pedaling platform while going uphill, precise handling, comfortability at high speeds, unmatched grip and the ability to boost jumps and style it out for the camera.
Specification
*Specifications, colors, and product availability are subject to change without prior notice.
-
Frameset
FramesetForkRear ShockFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHub
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 390 15.35 | 400 15.75 | 415 16.34 | 430 16.93 |
| Seat Tube Angle (B) | 70 2.76 | 70 2.76 | 70 2.76 | 70 2.76 |
| Effective Seat Tube Angle (C) | 77 3.03 | 77 3.03 | 77 3.03 | 77 3.03 |
| Head Tube Length (D) | 100 3.94 | 105 4.13 | 110 4.33 | 120 4.72 |
| Head Tube Angle (E) | 63.5 2.5 | 63.5 2.5 | 63.5 2.5 | 63.5 2.5 |
| Effective Top Tube (F) | 583.58 22.98 | 604.61 23.8 | 626.39 24.66 | 647.71 25.5 |
| Bb Height (G) | 353 13.9 | 353 13.9 | 353 13.9 | 353 13.9 |
| Bb Offset (H) | 27 1.06 | 27 1.06 | 27 1.06 | 27 1.06 |
| Chainstay Length (I) | 435 17.13 | 435 17.13 | 435 17.13 | 435 17.13 |
| Wheelbase (J) | 1219.94 48.03 | 1242.17 48.9 | 1266.01 49.84 | 1288.87 50.74 |
| Frame Reach (K) | 440 17.32 | 460 18.11 | 480 18.9 | 500 19.69 |
| Frame Stack (L) | 621.92 24.49 | 626.39 24.66 | 634.09 24.96 | 639.82 25.19 |
| Standover Height (M) | 710 27.95 | 716 28.19 | 717 28.23 | 720 28.35 |
