XTRADA 24: Real Trails, Real Confidence
XTRADA 24
Features
-

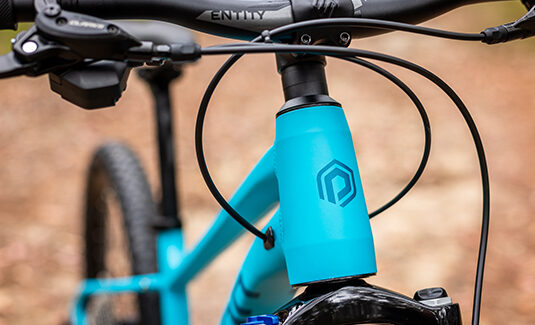

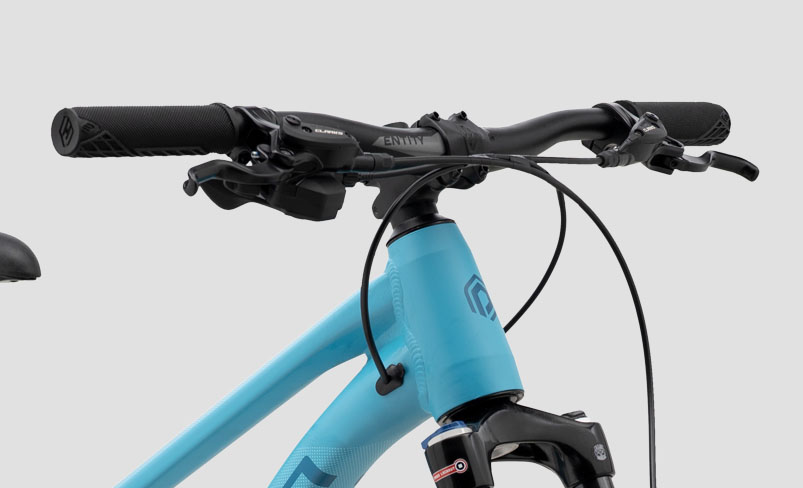

Proportional Youth Components
We’ve curated every detail, from shorter crank arms for easier pedaling to a narrower handlebar and reach-adjustable brake levers, ensuring that smaller hands and legs have total, effortless control.
-

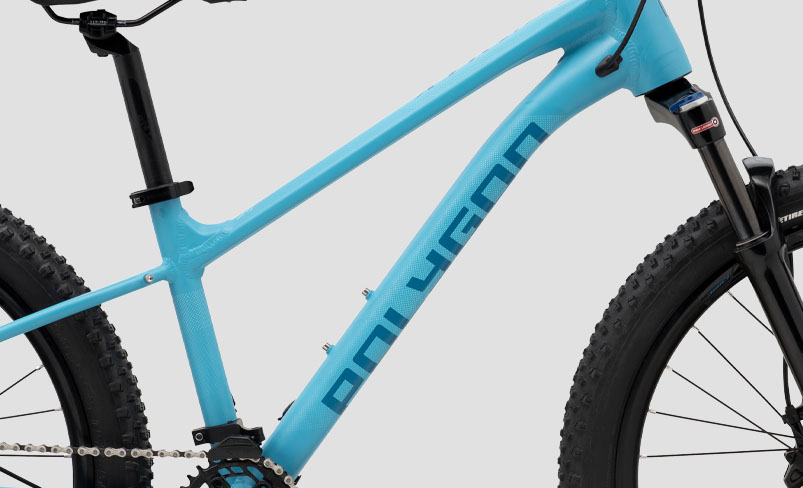

Lightweight ALX Frame
Built with a low stand-over height and lightweight alloy, this frame is easy to hop on and off and even easier to flick around corners.
-

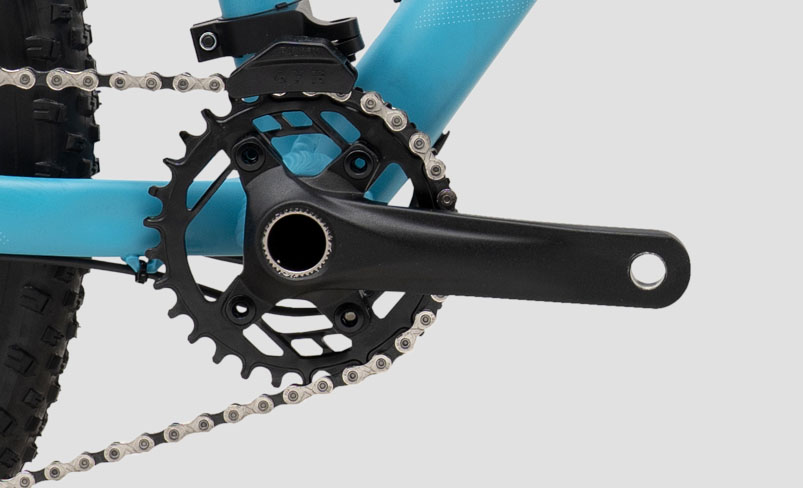

Simplified 1x Drivetrain
The 1x gear system is intuitive and easy to master, providing a wide range of gears while keeping the chain secure and the shifting crisp.
Specification
-
Frameset
FramesetForkFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireHubSpokes
-
Brake
Brake LeverBrake CaliperRotor

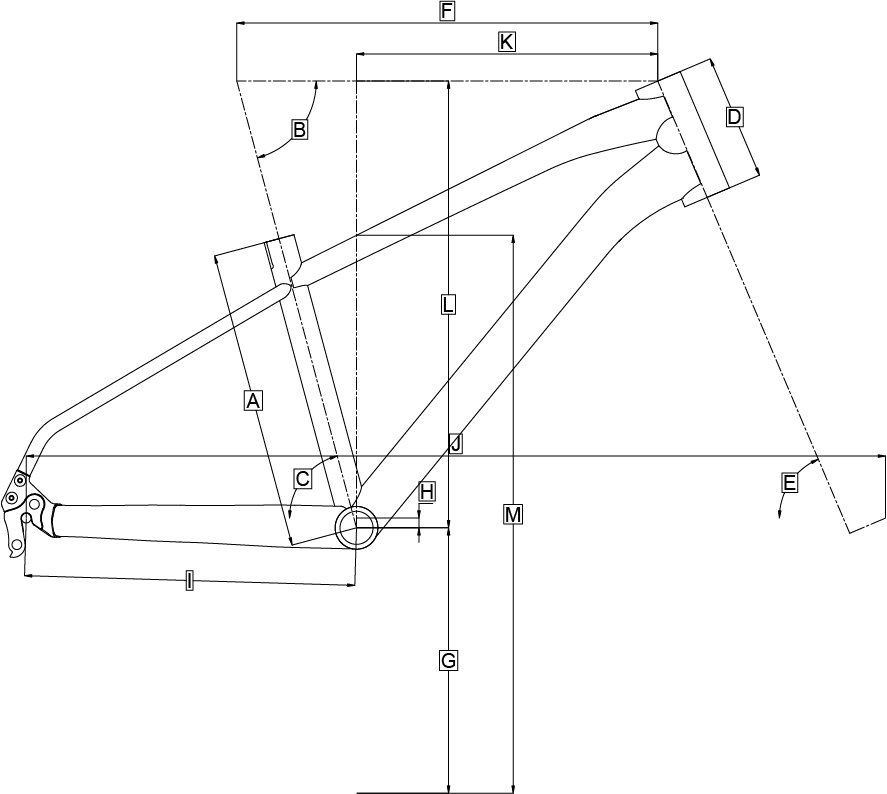

Geometry & Size
| All Size | |
|---|---|
| Height (cm) | 127-142 |
| Seat Tube Length (A) | 321 12.64 |
| Seat Tube Angle (B) | 75 2.95 |
| Effective Seat Tube Angle (C) | 75 2.95 |
| Head Tube Length (D) | 90 3.54 |
| Head Tube Angle (E) | 65 2.56 |
| Effective Top Tube (F) | 490 19.29 |
| Bb Height (G) | 288 11.34 |
| Bb Offset (H) | 30 1.18 |
| Chainstay Length (I) | 400 15.75 |
| Wheelbase (J) | 1028.28 40.48 |
| Frame Reach (K) | 345 13.58 |
| Frame Stack (L) | 540.5 21.28 |
| Standover Height (M) | 582.3 22.93 |
