XTRADA 20: Adventure Starts Here
Junior | 80mm Suspension | ALX Alloy | 20" Wheels
The Polygon XTRADA 20 is the perfect platform for building confidence and heading on off-road adventures.
The design is specifically for the ergonomics and power of younger riders, and we've added youth-specific components that prioritize ease of use and total riding comfort. By matching the bike’s proportions to a developing rider’s reach and weight, the XTRADA 20 removes the struggle of handling a heavy machine and replaces it with how a bike should feel.
JUNIOR 20" 120-130
XTRADA 20
Features
-

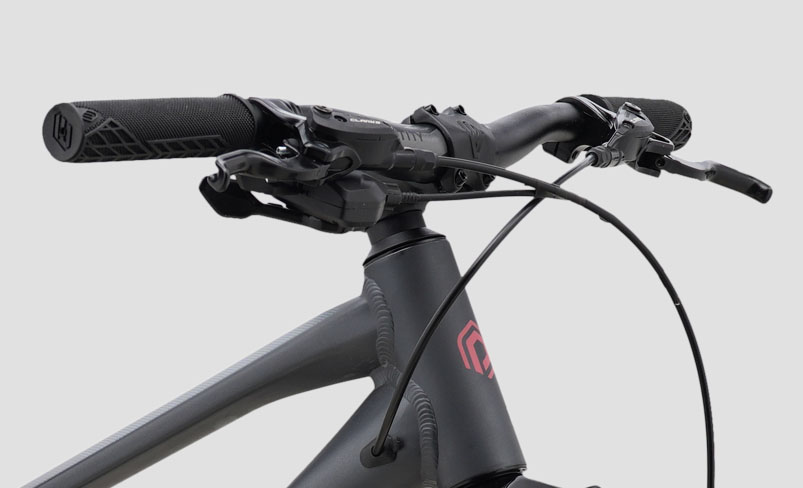

Proportional Youth Components
We’ve curated every detail, from shorter crank arms for easier pedaling to a narrower handlebar and reach-adjustable brake levers, ensuring that smaller hands and legs have total, effortless control.
-

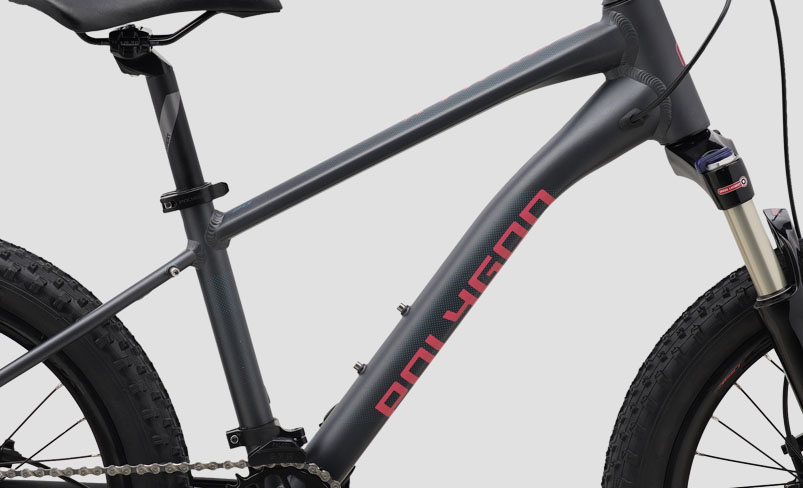

Lightweight ALX Frame
Built with a low stand-over height and lightweight alloy, this frame is easy to hop on and off and even easier to carry by hand.
-

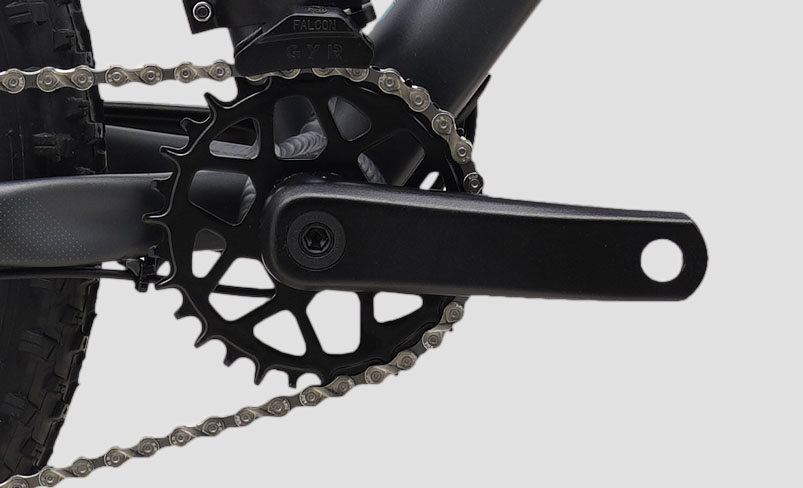

Simplified 1x Drivetrain
The 1x gear system is intuitive and easy to master, providing a wide range of gears while keeping the chain secure and the shifting crisp.
Specification
-
Frameset
FramesetForkFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| All Size | |
|---|---|
| Height (cm) | 120-130 |
| Seat Tube Length (A) | 308 12.13 |
| Seat Tube Angle (B) | 75 2.95 |
| Effective Seat Tube Angle (C) | 75 2.95 |
| Head Tube Length (D) | 90 3.54 |
| Head Tube Angle (E) | 66 2.6 |
| Effective Top Tube (F) | 444.6 17.5 |
| Bb Height (G) | 259 10.2 |
| Bb Offset (H) | 10 0.39 |
| Chainstay Length (I) | 340 13.39 |
| Wheelbase (J) | 912 35.91 |
| Frame Reach (K) | 310 12.2 |
| Frame Stack (L) | 500.29 19.7 |
| Standover Height (M) | 560.02 22.05 |
