STRATTOS S ACX: One Bike to Rule Them All
Endurance Road Comfort | ACX Carbon Frame | 2 Available Builds
Whether you're tackling your local climbs or century-long endurance rides, the Polygon STRATTOS S ACX delivers a smooth, stable, and incredibly fast ride on any tarmac.
Built around a lightweight performance ACX carbon frame (UCI-approved) and with plenty of tire clearance, this may be our most versatile road bike yet.
ALL ROUNDER ?
ALL ROUNDER ?
Chasing for speed and against the wind, or fun Sunday club ride with friends around town; all you need is here. See more...

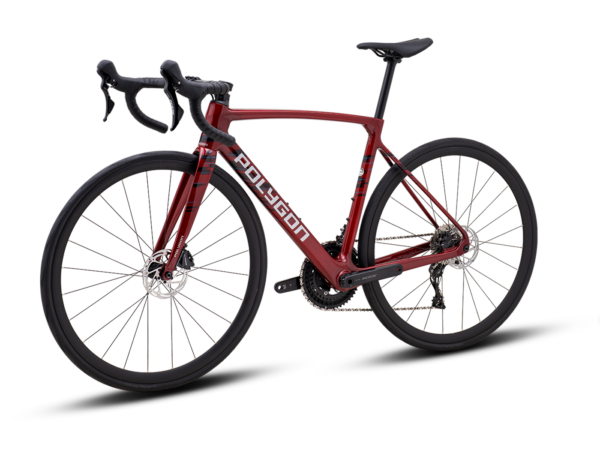

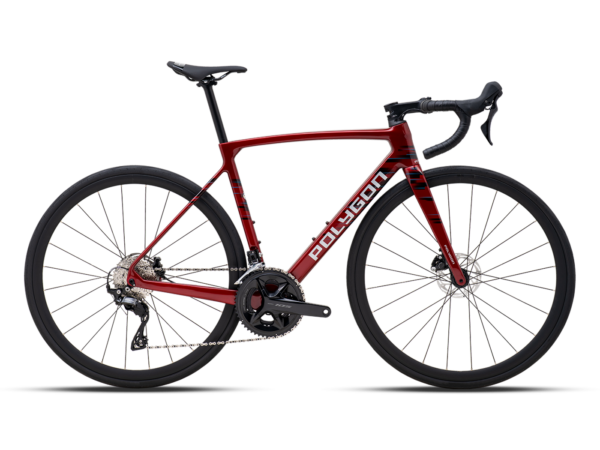

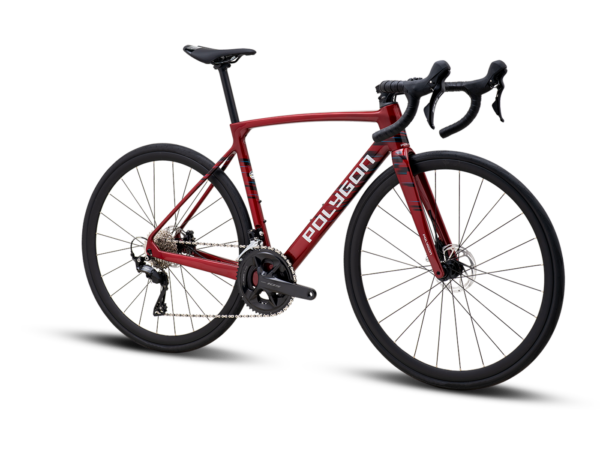

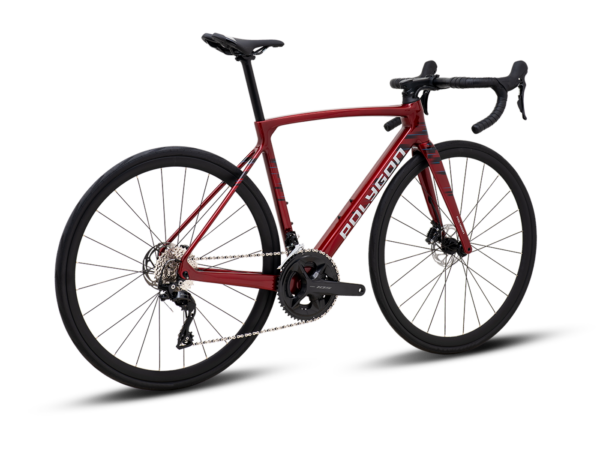

STRATTOS S7D
Features
-
ACX Carbon Frame Built for Compliance
The STRATTOS S range is crafted from ACX carbon, specifically tuned to balance lightweight performance with vibration dampening.
-
Precision Handling: Tapered Carbon Steerer
The STRATTOS S frameset features a fully carbon, tapered steerer tube and fork. This rigid front-end allows for confident descending and high-speed stability.
-
LINC Semi-Integrated Carbon Cockpit
The LINC component line offers the perfect middle ground: the aerodynamic gains of internal routing with the mechanical adjustability of a semi-integrated handlebar and stem. Maintain your bike with ease without sacrificing a watt of efficiency.
Specification
-
Frameset
FramesetForkFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChain
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetTireRimHub
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| XXS | XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|---|
| Height (cm) | 151-161 | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 | 185-195 |
| Seat Tube Length (A) | 439.1 17.29 | 454.2 17.88 | 474.2 18.67 | 500 19.69 | 524.7 20.66 | 554.3 21.82 | 584.2 23 |
| Seat Tube Angle (B) | 75 2.95 | 75 2.95 | 74.5 2.93 | 74 2.91 | 73.5 2.89 | 73 2.87 | 73 2.87 |
| Effective Seat Tube Angle (C) | 75 2.95 | 75 2.95 | 74.5 2.93 | 74 2.91 | 73.5 2.89 | 73 2.87 | 73 2.87 |
| Head Tube Length (D) | 90 3.54 | 90 3.54 | 105 4.13 | 130 5.12 | 155 6.1 | 185 7.28 | 215 8.46 |
| Head Tube Angle (E) | 71.5 2.81 | 72 2.83 | 72.5 2.85 | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 |
| Effective Top Tube (F) | 505 19.88 | 515 20.28 | 525 20.67 | 540 21.26 | 555 21.85 | 570 22.44 | 590 23.23 |
| Bb Height (G) | 271.5 10.69 | 271.5 10.69 | 271.5 10.69 | 274 10.79 | 274 10.79 | 276.5 10.89 | 276.5 10.89 |
| Bb Offset (H) | 72.5 2.85 | 72.5 2.85 | 72.5 2.85 | 70 2.76 | 70 2.76 | 67.5 2.66 | 67.5 2.66 |
| Chainstay Length (I) | 415 16.34 | 415 16.34 | 415 16.34 | 415 16.34 | 415 16.34 | 417 16.42 | 417 16.42 |
| Wheelbase (J) | 969.7 38.18 | 975.6 38.41 | 977.3 38.48 | 984.9 38.78 | 995 39.17 | 1007.9 39.68 | 1027.8 40.46 |
| Frame Reach (K) | 372.9 14.68 | 382.5 15.06 | 383.4 15.09 | 386.9 15.23 | 389.8 15.35 | 391.5 15.41 | 402.8 15.86 |
| Frame Stack (L) | 493.2 19.42 | 494.7 19.48 | 510.7 20.11 | 533.9 21.02 | 557.7 21.96 | 583.8 22.98 | 612.4 24.11 |
| Standover Height (M) | 717.13 28.23 | 729.43 28.72 | 748.69 29.48 | 775.85 30.55 | 801.17 31.54 | 832.25 32.77 | 862.17 33.94 |
