PATH: Flat-Bar for Urban Adventures
PATH 4
Features
-

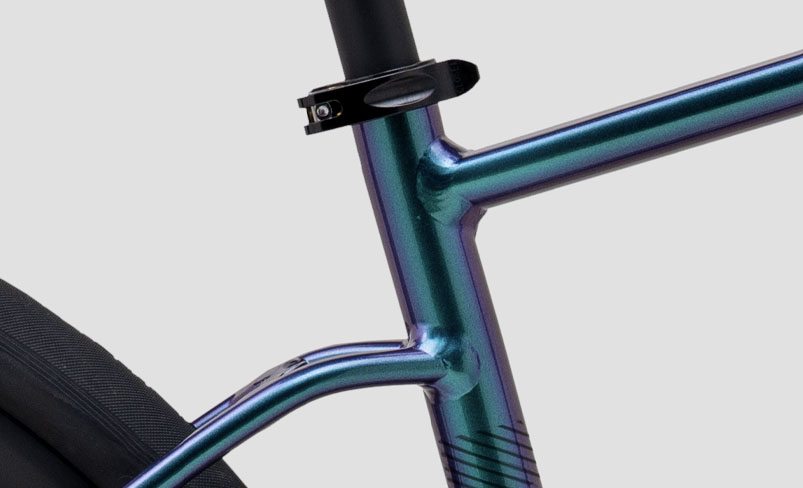

ALX Urban Frame & Fork
A lightweight, hydroformed aluminum frame designed for durability and agility.
-

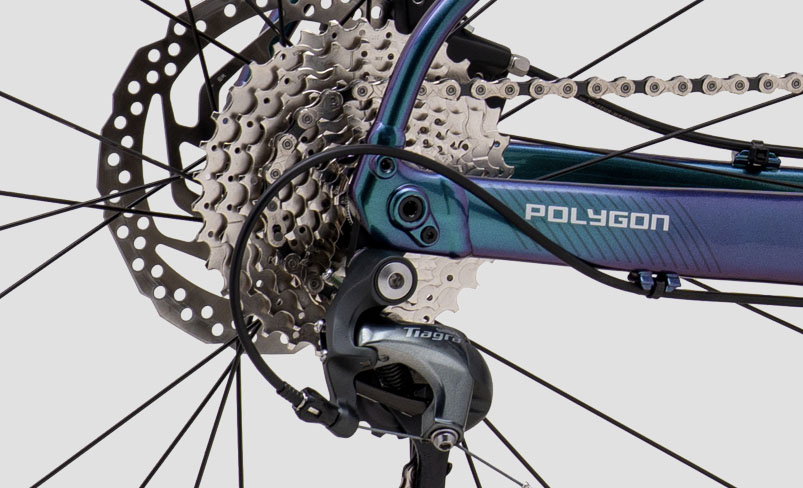

Versatile Drivetrain & Disc Brakes
Featuring reliable Shimano components with a wide range of gears and powerful disc brakes for consistent all-weather stopping.
-

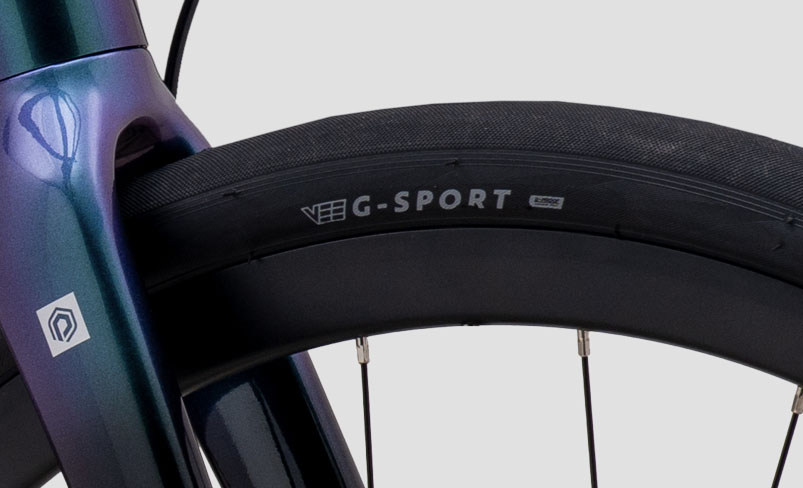

Comfortable & Fast
Equipped with 700c wheels and high-volume tires to soak up road vibrations while maintaining maximum momentum.
-

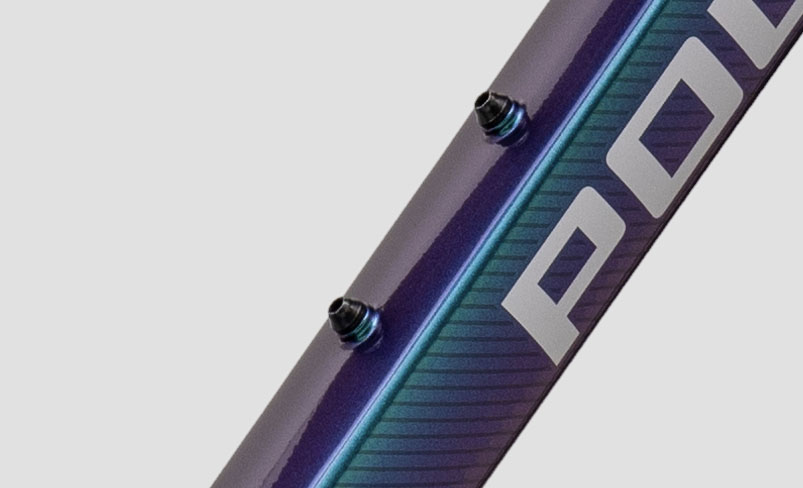

Utility Ready
Every Path frame comes standard with integrated mounts for fenders, racks, and water bottles.
Specification
-
Frameset
FramesetForkSizeFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 150-163 | 163-175 | 175-188 | 188-195 |
| Seat Tube Length (A) | 430 16.93 | 460 18.11 | 490 19.29 | 520 20.47 |
| Seat Tube Angle (B) | 74.5 2.93 | 74.5 2.93 | 74 2.91 | 73.5 2.89 |
| Effective Seat Tube Angle (C) | 74.5 2.93 | 74.5 2.93 | 74 2.91 | 73.5 2.89 |
| Head Tube Length (D) | 115 4.53 | 145 5.71 | 175 6.89 | 205 8.07 |
| Head Tube Angle (E) | 70.5 2.78 | 70.5 2.78 | 71 2.8 | 71 2.8 |
| Effective Top Tube (F) | 530 20.87 | 548 21.57 | 572 22.52 | 596 23.46 |
| Bb Height (G) | 286 11.26 | 286 11.26 | 286 11.26 | 286 11.26 |
| Bb Offset (H) | 72 2.83 | 72 2.83 | 72 2.83 | 72 2.83 |
| Chainstay Length (I) | 440 17.32 | 440 17.32 | 440 17.32 | 440 17.32 |
| Wheelbase (J) | 1033 40.67 | 1053 41.46 | 1069 42.09 | 1088 42.83 |
| Frame Reach (K) | 380 14.96 | 390 15.35 | 400 15.75 | 410 16.14 |
| Frame Stack (L) | 541 21.3 | 570 22.44 | 600 23.62 | 628 24.72 |
| Standover Height (M) | 703 27.68 | 735 28.94 | 763 30.04 | 793 31.22 |
Related Products
The “Ultimate Commuter Bike” has never been so rightfully deserved by a bike.
FAQ
-
What is an Urban-Fitness bike?
A combination of urban and fitness bike. The Urban-Fitness bike features an upright geometry and confident handling with a flat bar. Perfect for daily workouts or commuting.
-
What types of terrain can the Path Series handle?
With 700 x 35c tires for the Path 4 and 700 x 40c tires for the Path 3, you can ride on various urban terrains, such as asphalt to pavement.
-
What bike accessories are compatible with the Polygon Path Series?
The Polygon Path 4 can be fitted with a bottle cage, rear fender, frame bag, and front carrier.
The Polygon Path 3 can be fitted with a bottle cage, front and rear fenders, a frame bag, and both front and rear carriers.
