IN THE RELENTLESS PURSUIT OF SPEED

DESIGNED TO CUT THROUGH AIR BETTER

In our pursuit of speed, we cyclists have always seen nature as an adversary. From daunting air drag to coarse road surfaces, we sought to minimize interaction with our surroundings in hopes of achieving optimal efficiency. Helios is here to transform that paradigm because by embracing nature, we can be even faster.

Bike type:

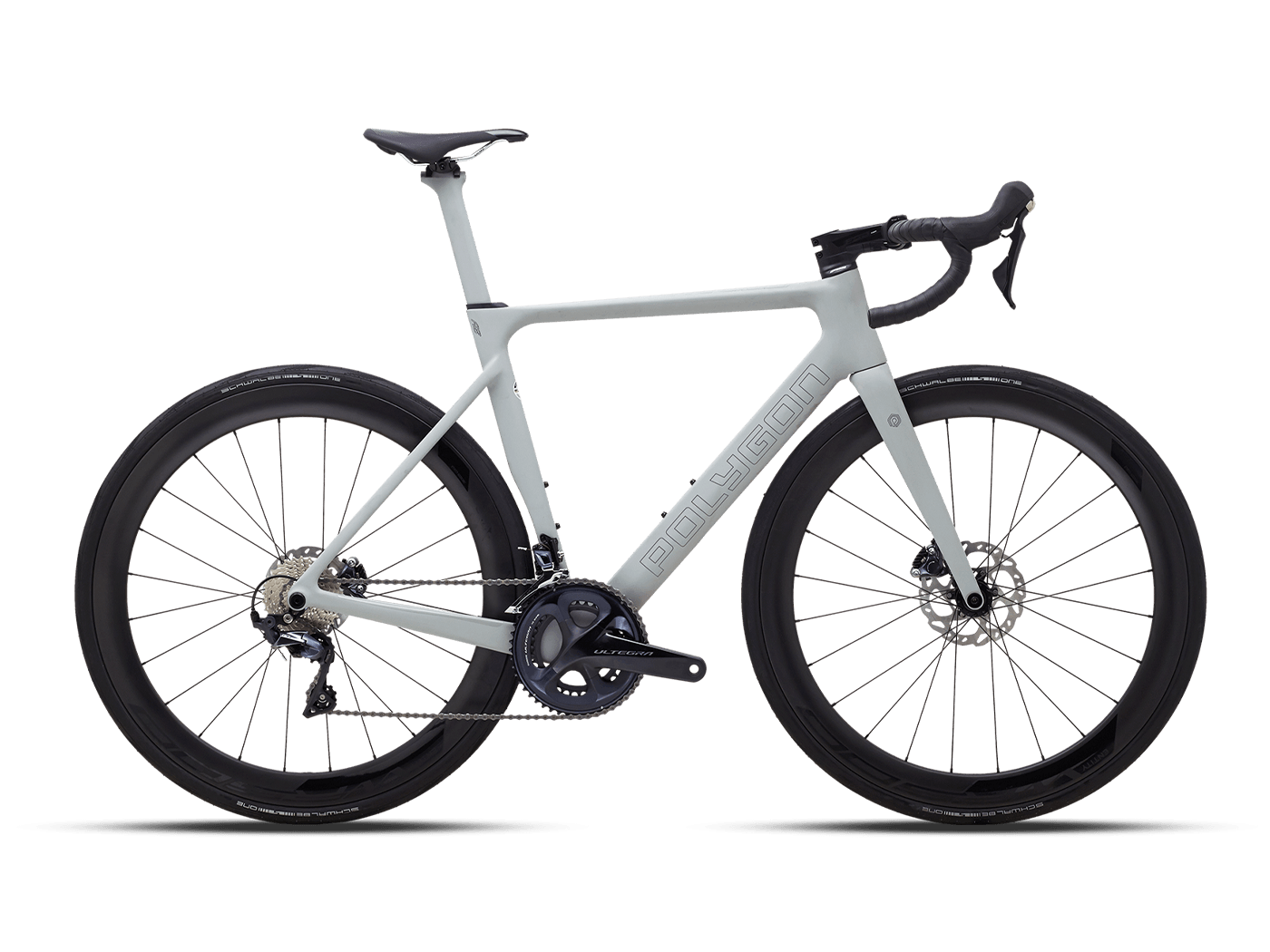

HELIOS A8 2025

$3,299.00

Color

Size

Clear

Find my size

FIND DEALER

SKU : 502760

Specification

Frameset

Frameset

ACX PERFORMANCE UCI APPROVED

Fork

ACX PERFORMANCE UCI APPROVED, TAPER 1-1/8" TO 1-1/2"

Frame Color

NUBIUM GREY

Decal Color

BLACK - WHITE
Drivetrain

Shifter

SHIMANO ULTEGRA ST-R8020, 2x11-SPEED DCL

Crank

SHIMANO ULTEGRA FC-R8000 52/36T, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL)

Cassette

SHIMANO ULTEGRA CS-R8000-11 11-34T

Rear Derailleur

SHIMANO ULTEGRA RD-R8000-GS

BB

SHIMANO BB-RS500-PB, PRESSFIT BB86

Chain

SHIMANO CN-HG601-11

Pedal

-
Cockpit

Saddle

ENTITY FLUX2, CR-MO ø 7mm

Seatpost

CARBON, AERO 35 x 337mm (XS) / 357mm (S, M, L, XL)

Handlebar

FSA ENERGY COMPACT, W: 400mm (XS, S) / 420mm (M, L) / 440mm (XL), BB: 31.8mm, R/D: 123.2mm, B/R: 78mm

Handlestem

FSA NS SMR, EXT: 90mm (XS, S) / 100mm (M, L) / 110mm (XL), BB: 31.8mm, B/R: 6degree

Headset

INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40
Wheel & Tire

Wheel Set

ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED

Wheel Size

700C

Tire

SCHWALBE ONE ADDIX TLE 700x28C

Rim

CARBON 622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY

Hub

F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS CENTER LOCK / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CENTER LOCK
Brake

Brake Lever

SHIMANO ULTEGRA ST-R8020

Brake Caliper

SHIMANO ULTEGRA BR-R8070 FLAT

Rotor

SHIMANO SM-RT70 F:160mm / R:140mm CENTER LOCK

Geometry & Size

mm inch

Find your size

	XXS	XS	S	M	L	XL
Height (cm)	151-161	154-164	162-170	168-176	174-181	180-187
Seat Tube Length (A)	450 17.72	475 18.7	500 19.69	520 20.47	545 21.46	570 22.44
Seat Tube Angle (B)	75 2.95	74.7 2.94	74.3 2.93	74 2.91	73.7 2.9	73.3 2.89
Effective Seat Tube Angle (C)	75 2.95	74.7 2.94	74.3 2.93	74 2.91	73.7 2.9	73.3 2.89
Head Tube Length (D)	100 3.94	115 4.53	130 5.12	145 5.71	160 6.3	175 6.89
Head Tube Angle (E)	71.5 2.81	71.8 2.83	72 2.83	72.3 2.85	72.3 2.85	72.8 2.87
Effective Top Tube (F)	505.31 19.89	517.31 20.37	530.42 20.88	543.04 21.38	555.14 21.86	569.25 22.41
Bb Height (G)	271 10.67	271 10.67	271 10.67	271 10.67	271 10.67	271 10.67
Bb Offset (H)	73 2.87	73 2.87	73 2.87	73 2.87	73 2.87	73 2.87
Chainstay Length (I)	415 16.34	415 16.34	415 16.34	415 16.34	415 16.34	415 16.34
Wheelbase (J)	968.42 38.13	975.82 38.42	983.9 38.74	991.1 39.02	1000.62 39.39	1005.8 39.6
Frame Reach (K)	370 14.57	375 14.76	380 14.96	385 15.16	390 15.35	395 15.55
Frame Stack (L)	505 19.88	520.21 20.48	535.2 21.07	550.4 21.67	564.7 22.23	580.8 22.87
Standover Height (M)	715.04 28.15	739.4 29.11	763.21 30.05	780.8 30.74	802.52 31.6	824.28 32.45

FAQ

What is the material of this bike?

Based on carbon material with ACX technology for a light, responsive yet stiff frame
What is the drivetrain combination?

The drivetrain come from Shimano Ultegra series
What is the bike weight?

Size S no pedal around 8kg
What is Performance RB

Road Bike designed for a high speed pursuit and hill climbing with various gradients
What differentiate Performance RB and others?

The geometry and components is specially made for rider who likes to accelerate sharply on tarmac and responsive to be manouvered
Why should I choose Polygon Performance RB?

Polygon Performance RB will filling up your soul that's craving for an adrenaline rush across the town or mountainous road
