RELEASE THE BEAST
COLLOSUS N7
Features
-

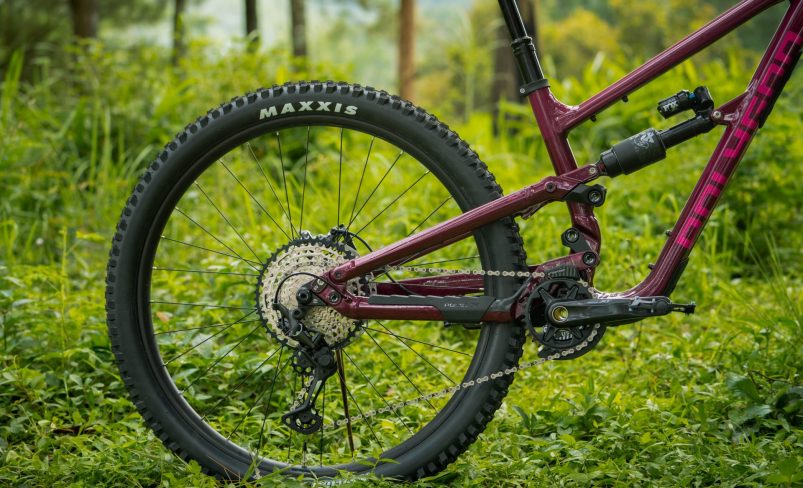

Ample Chainstay Length for Stability
Continuing with gen 1’s chainstay length of 435mm we felt it gave the perfect balance of maneuverability and stability on various terrains.
-

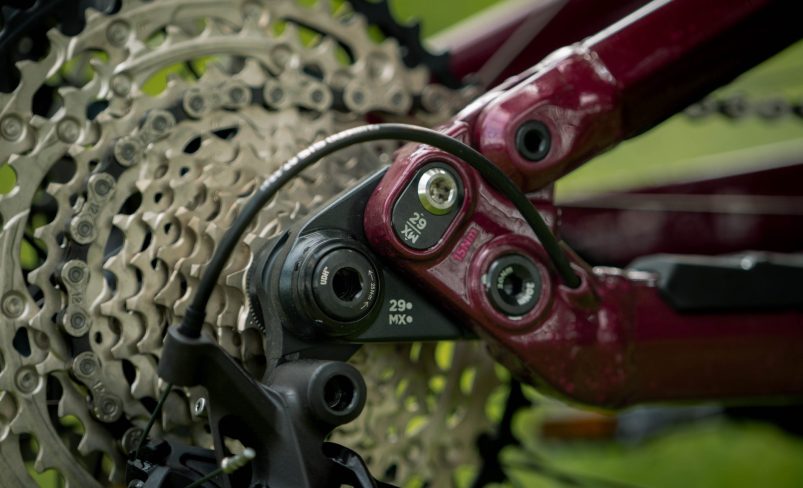

Redesigned Chainstay & Bolt-On Dropouts
A complete overhaul of the chainstay increases stiffness, while the new flip-chip dropouts let you easily switch between a full 29er setup or a mullet configuration. And with the UDH dropouts, the Collosus N is now compatible with T-Type drivetrains for seamless integration with modern shifting systems.
-
Metric Shock Upgrade for Enhanced Tuning
We’ve moved from trunnion to a 230mm x 65mm metric shock, improving suspension performance and offering better tuning capabilities.
-
Reinforced Lower Link
To eliminate flex and improve overall ride feel, we've redesigned the lower link with added material and through-axles, ensuring increased stiffness and a more responsive ride.
Specification
-
Frameset
FramesetForkRear ShockFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 390 15.35 | 400 15.75 | 415 16.34 | 430 16.93 |
| Seat Tube Angle (B) | 70 2.76 | 70 2.76 | 70 2.76 | 70 2.76 |
| Effective Seat Tube Angle (C) | 77 3.03 | 77 3.03 | 77 3.03 | 77 3.03 |
| Head Tube Length (D) | 100 3.94 | 105 4.13 | 110 4.33 | 120 4.72 |
| Head Tube Angle (E) | 63.5 2.5 | 63.5 2.5 | 63.5 2.5 | 63.5 2.5 |
| Effective Top Tube (F) | 583.6 22.98 | 604.6 23.8 | 626.4 24.66 | 647.7 25.5 |
| Bb Height (G) | 353 13.9 | 353 13.9 | 353 13.9 | 353 13.9 |
| Bb Offset (H) | 27 1.06 | 27 1.06 | 27 1.06 | 27 1.06 |
| Chainstay Length (I) | 435 17.13 | 435 17.13 | 435 17.13 | 435 17.13 |
| Wheelbase (J) | 1221.7 48.1 | 1244 48.98 | 1266.2 49.85 | 1290.7 50.81 |
| Frame Reach (K) | 440 17.32 | 460 18.11 | 480 18.9 | 500 19.69 |
| Frame Stack (L) | 625.5 24.63 | 630 24.8 | 634.5 24.98 | 643.4 25.33 |
| Standover Height (M) | 710 27.95 | 716 28.19 | 717 28.23 | 720 28.35 |
Related Products
A precision-engineered machine built for speed, control, and domination on the gnarliest descents
A precision-engineered machine built for speed, control, and domination on the gnarliest descents
Our all-time sorcerer — Cascade 2, born for you who are planning to go for recreational riding on the weekends and feel the mountains. The Cascade 2 MTB is built…
Created to be versatile bikes for riders who are looking for a bike to commute to work during the weekdays.
Created to be versatile bikes for riders who are looking for a bike to commute to work during the weekdays.
Our all-time sorcerer — Cascade 4, born for you who are planning to go for recreational riding on the weekends and feel the mountains. The Cascade 4 MTB is built…
FAQ
-
The bike comes with 29x2.6” tires front and rear. Can I fit 27.5” wheels to convert it to a ‘mullet’ set up?
The frame has clearance for a 27.5x2.8" tire so a mullet (29” front, 27.5+ rear) is possible. However, the diameter of a 27.5x2.8" tire is significantly smaller than the standard 29x2.6" tire, hence changing to a mullet set up would reduce BB height and pedal to ground clearance while also slackening both the effective seat and head tube angles.
The fork will also fit a 27.5+ tire, however, this is highly discouraged as the BB drop would become dangerously low. We recommend staying ready for business with 29" all-round. -
Can I use a different rear shock?
Most 230mm x 65mm Trunnion Mount shocks should fit. The leverage curve can work well with a coil shock. However, it’s worth noting that Polygon have Fox tune the stock rear shocks to work best with the specific bike model, so a standard tune replacement shock may not offer optimized performance.
-
Can I change the fork?
The standard forks are 170mm travel, you cannot use a dual crown fork as the frame is not designed or tested to withstand the different loads.
-
Can Collosus N9 fit a chain guide?
For sure, the bike comes equipped with an e13 TRS+ Bashguard. The chain guide mounts directly to the drive unit and the bolt pattern is different to traditional ISCG/05, so most ‘normal’ chain guides are not compatible.
-
What size rotors can I use?
You can run up to 220mm rotors front and rear. While you can downsize from the standard 203mm to 180mm, we suggest not to.
- What is included in the standard warranty? Click here for more details.
