BEND R5
BEND R5 2019
-
502609
-
GRAVEL ?GRAVEL ?Ah, nothing compares to the peace of the less-passed road. Whether it's racing and conquering mixed terrains, bikepacking with friends, or following the bike path and getting lost; we'll get you ready with our incredible fast, comfortable, and versatile gravel bikes. Come on, all the things that you want in the world are way out there. Let's go find them. See more...

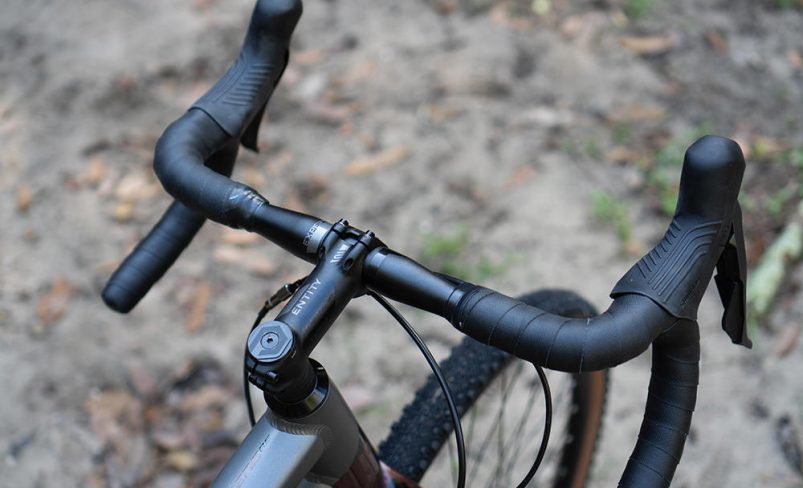

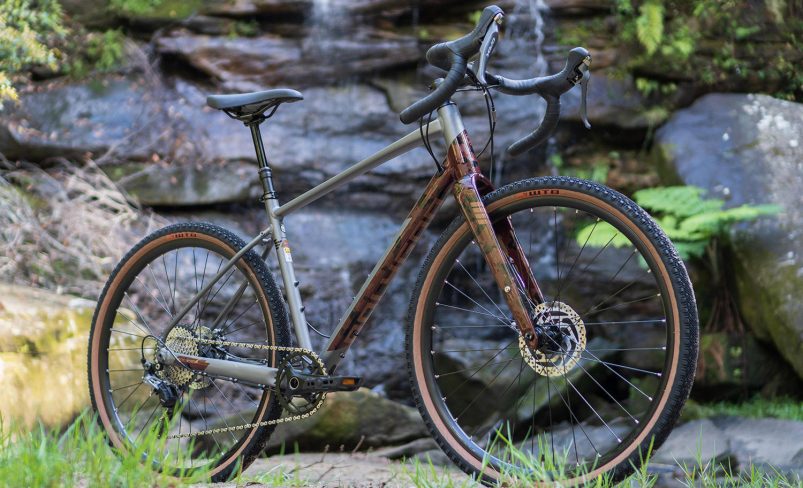

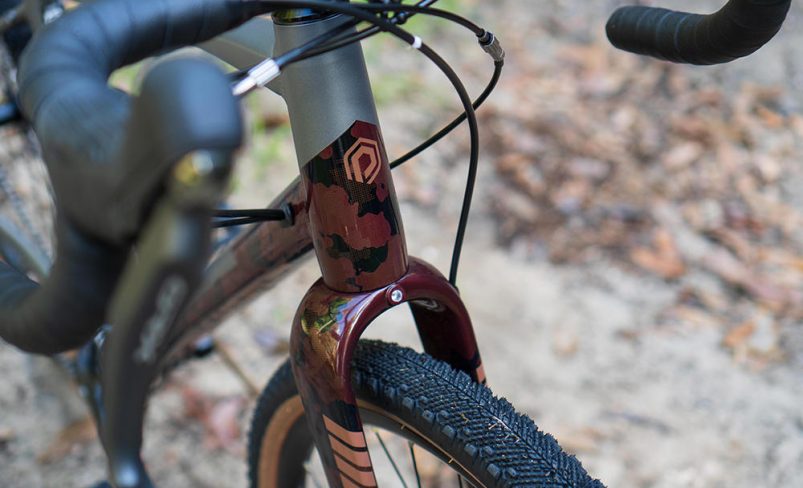

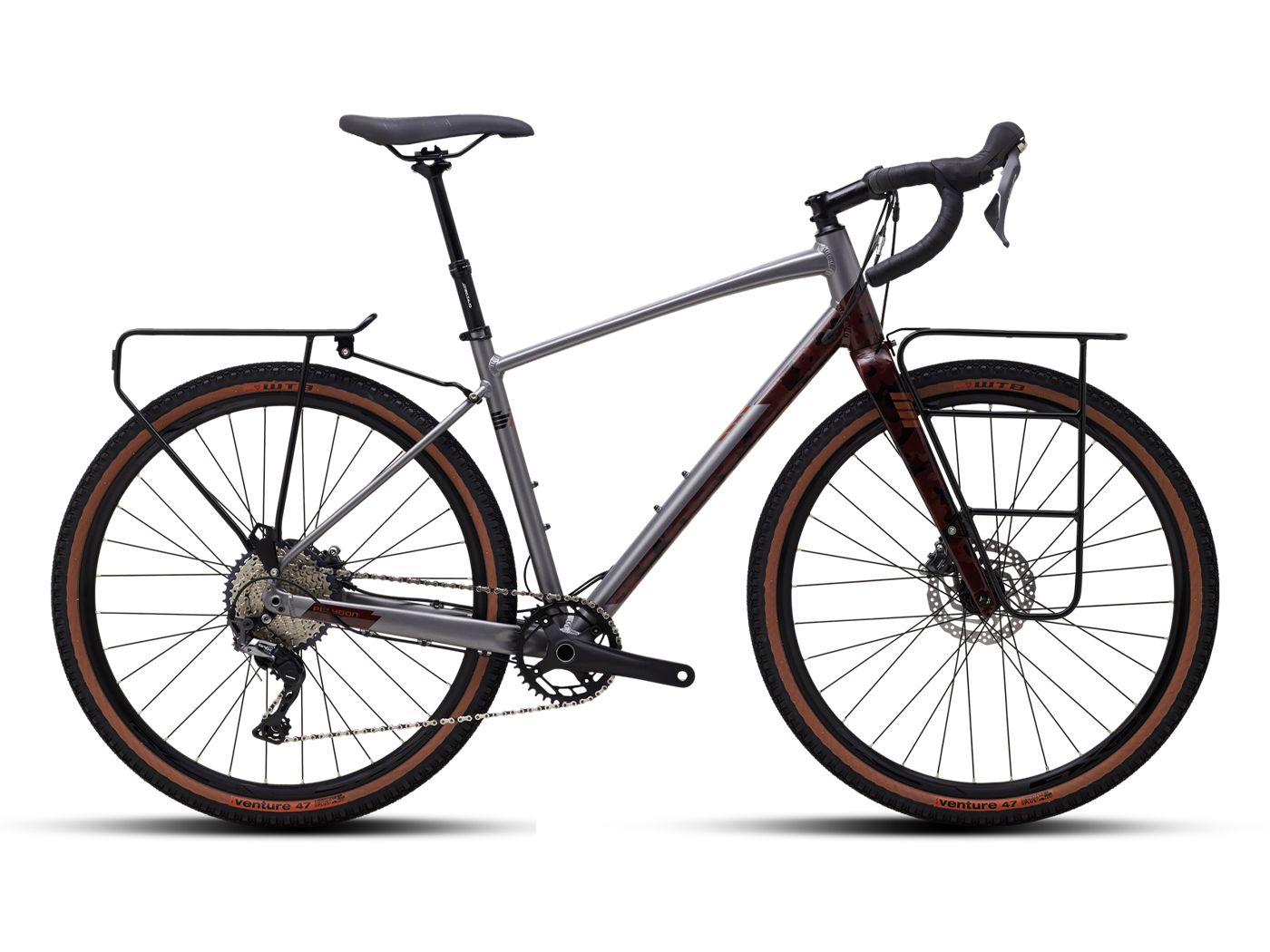

Nothing compares to the feeling of freedom; free to cruise anywhere and get lost. So we introduce you to our demon gravel bike -- Bend R5. Designed with an eye toward bikepacking adventures. Comes with a taller head tube for greater comfort and a more upright riding position. With its flared drop bar, our Bend R5 gravel bike offers improved aerodynamics without compromising the ability to handle the bike on drops. Accompanied by our full carbon fork and extra tire clearance, you can cruise farther on any terrain. Let's go wild and beyond, all roads are yours.
Specification
-
Frameset
FramesetFork
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChain
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTire
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| S | M | L | |
|---|---|---|---|
| Height (cm) | 150-163 | 163-175 | 175-188 |
| Seat Tube Length (A) | 430 16.93 | 480 18.9 | 535 21.06 |
| Seat Tube Angle (B) | 74 2.91 | 74 2.91 | 74 2.91 |
| Effective Seat Tube Angle (C) | 74 2.91 | 74 2.91 | 74 2.91 |
| Head Tube Length (D) | 140 5.51 | 170 6.69 | 200 7.87 |
| Head Tube Angle (E) | 71 2.8 | 71.5 2.81 | 72.5 2.85 |
| Effective Top Tube (F) | 528.2 20.8 | 551.9 21.73 | 576.2 22.69 |
| Bb Height (G) | 261.5 10.3 | 261.5 10.3 | 261.5 10.3 |
| Bb Offset (H) | 80 3.15 | 80 3.15 | 80 3.15 |
| Chainstay Length (I) | 420 16.54 | 420 16.54 | 420 16.54 |
| Wheelbase (J) | 999 39.33 | 1019 40.12 | 1034 40.71 |
| Frame Reach (K) | 365 14.37 | 380 14.96 | 395 15.55 |
| Frame Stack (L) | 569.1 22.41 | 599.5 23.6 | 632 24.88 |
| Standover Height (M) | 677.4 26.67 | 720.3 28.36 | 767 30.2 |
