YOUR GATEWAY TO A WHOLE NEW DIMENSION OF FUN

All-rounder road bike built with ALX alloy frame and carbon fork, that defines a new way of experiencing the road

The exhilaration as you step on the pedal, feel the wind rush around you, and sense your heartbeat rising. The all-new Strattos defines a new way of experiencing the road. Designed with tranquil, hours-long rides in mind, Strattos improves upon the comfort of riding, without compromising on performance. Whether for a scenic ride with friends or a high-adrenaline race around the block; Strattos is the best friend that would always be ready to ride with you.

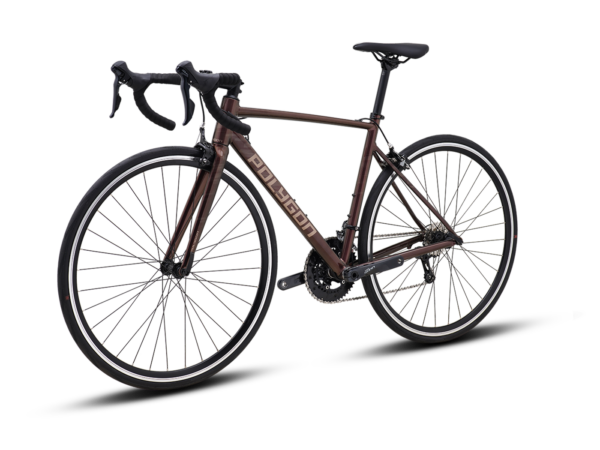

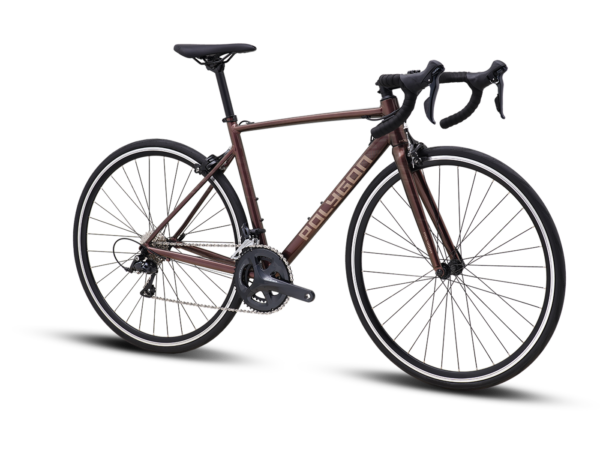

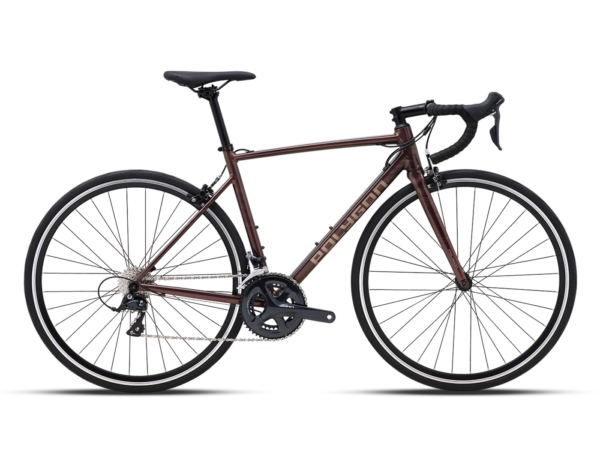

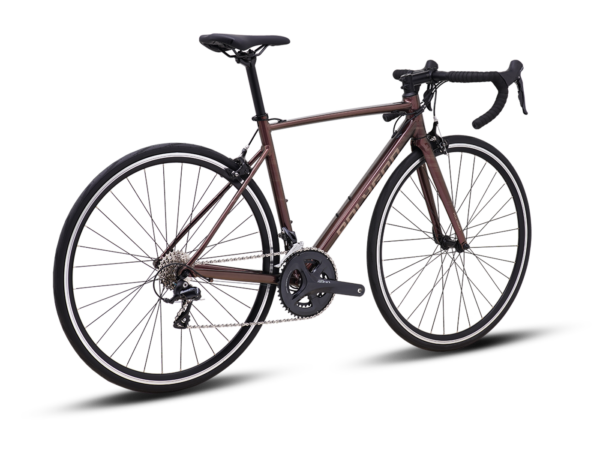

STRATTOS S3

Color

Size

Clear

Find my size

FIND DEALER

SKU : 503201

Features

Specification

Frameset

Frameset

ALX ALL-ROUND

Fork

LIGHT WEIGHT CARBON FORK

Frame Color

BROWN

Decal Color

CREAM
Drivetrain

Shifter

SHIMANO SORA ST-R3000, 2x9-SPEED DUAL CONTROL LEVER

Crank

SHIMANO SORA FC-R3000 50/34T

Cassette

SUNRACE CSM96.9AS 11-28T

Rear Derailleur

SHIMANO SORA RD-R3000-SS DIRECT ATTACH

BB

SHIMANO BSA THREADED 68mm FOR 2-PIECE CRANKSET

Chain

KMC X9

Pedal

ALLOY CAGE & BODY W/ REFLECTOR
Cockpit

Saddle

BLACK, STEEL ø 7mm

Seatpost

POLYGON SPORT ALLOY, DxL: 27.2 x 350mm

Handlebar

POLYGON SPORT ALLOY, W: 400mm (XS, S, M) / 420mm (L, XL) , BB: 31.8mm, R/D: 124mm, B/R: 80mm

Handlestem

POLYGON OE ALLOY, EXT: 90mm (XS, S, M) / 105mm (L, XL), BB: 31.8mm, R/D: 10degree

Headset

ZERO STACK (ZS) SEALED BEARING FOR STRAIGHT HEAD TUBE, ZS 44/28.6 | ZS 44/30
Wheel & Tire

Wheel Set

C04 ALLOY

Tire

PERFORMANCE TIRE 700x28C

Rim

ALLOY DOUBLE WALL 622-15 32H FOR TYRE 622-20/35 W/ CNC

Hub

F: ALLOY QRx100mm 32H / R: ALLOY QRx130mm 32H
Brake

Brake Lever

SHIMANO SORA ST-R3000

Brake Caliper

TEKTRO R315

Geometry & Size

mm inch

Find your size

	S	M	L	XL
Height (cm)	162-170	168-176	174-181	180-187
Seat Tube Length (A)	470 18.5	500 19.69	520 20.47	550 21.65
Seat Tube Angle (B)	74.5 2.93	73.5 2.89	73.5 2.89	73 2.87
Effective Seat Tube Angle (C)	74.5 2.93	73.5 2.89	73.5 2.89	73 2.87
Head Tube Length (D)	105 4.13	130 5.12	155 6.1	185 7.28
Head Tube Angle (E)	72.5 2.85	73 2.87	73 2.87	73 2.87
Effective Top Tube (F)	525 20.67	540 21.26	555 21.85	570 22.44
Bb Height (G)	272 10.71	274.5 10.81	274.5 10.81	277 10.91
Bb Offset (H)	72.5 2.85	70 2.76	70 2.76	67.5 2.66
Chainstay Length (I)	415 16.34	415 16.34	415 16.34	415 16.34
Wheelbase (J)	977.38 38.48	984.9 38.78	995 39.17	1005.5 39.59
Frame Reach (K)	383.01 15.08	386.59 15.22	389.45 15.33	391.12 15.4
Frame Stack (L)	511.98 20.16	535 21.06	558.9 22	585.09 23.04
Standover Height (M)	717.4 28.24	748.3 29.46	769.1 30.28	797.8 31.41
