YOUR PATH TO ACTIVE LIVING

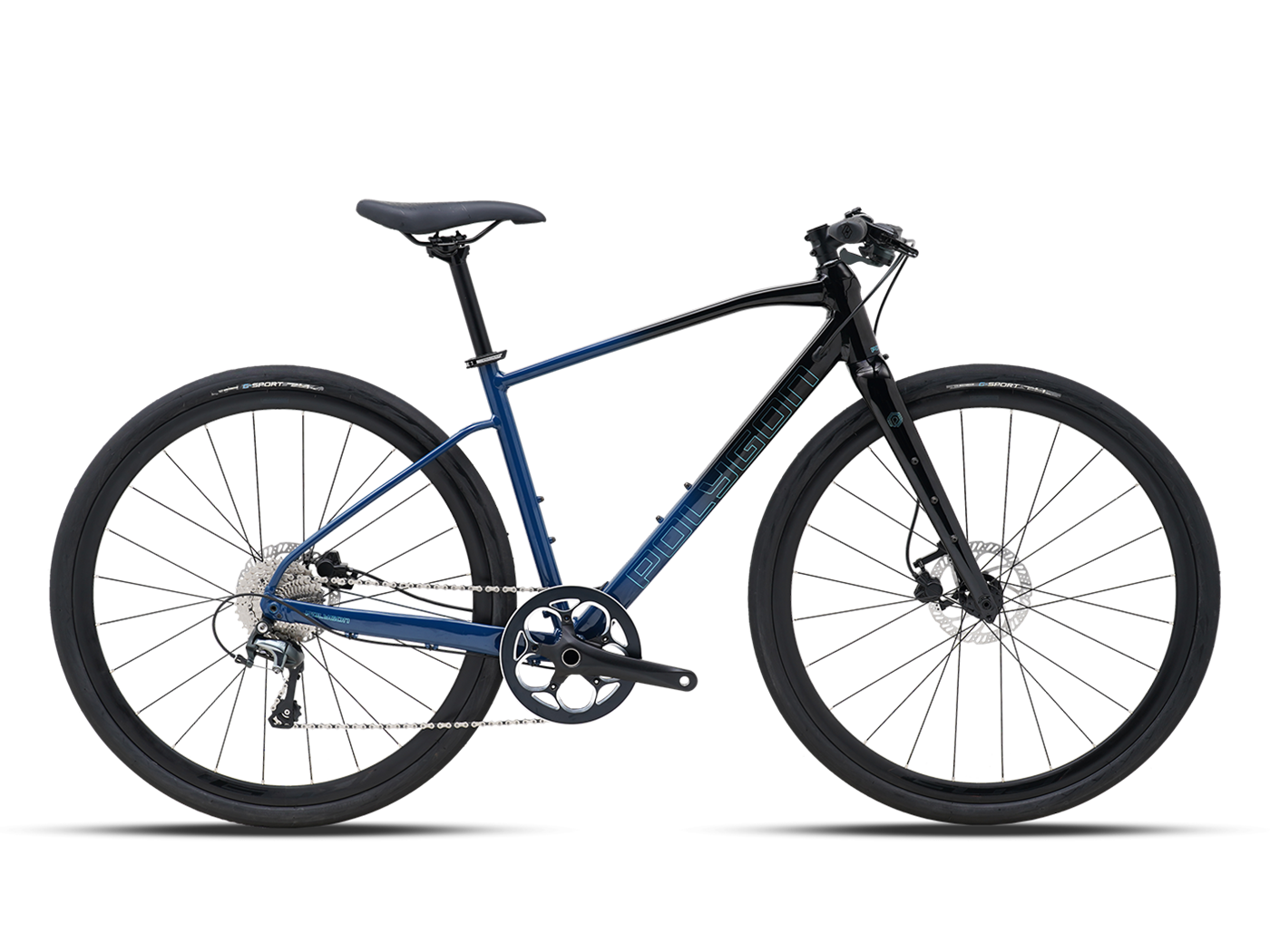

PATH F4
Features
-
Seamlessly comfortable and exceptional power
Designed with a flat handlebar, it offers an upright position for confident control. Its lightweight full carbon fork complements this by proficiently absorbing road vibrations, facilitating excellent power output and optimized aerodynamics.
-
A combination of speed and confident
Features a slacker head tube angle to promote an aggressive riding position, paired with a flat handlebar and slacker seat tube angle to enhance confidence. The ideal blend for those seeking both velocity and confidence.
-
Ready for all your ambitions to conquer​
Enhanced by a 700 x 35c tire, you'll conquer urban landscapes with remarkable ease.​
Specification
-
Frameset
FramesetForkFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 150-163 | 163-175 | 175-188 | 188-195 |
| Seat Tube Length (A) | 430 16.93 | 460 18.11 | 490 19.29 | 520 20.47 |
| Seat Tube Angle (B) | 74.5 2.93 | 74.5 2.93 | 74 2.91 | 73.5 2.89 |
| Effective Seat Tube Angle (C) | 74.5 2.93 | 73.5 2.89 | 74 2.91 | 73.5 2.89 |
| Head Tube Length (D) | 115 4.53 | 145 5.71 | 175 6.89 | 205 8.07 |
| Head Tube Angle (E) | 70.5 2.78 | 70.5 2.78 | 71 2.8 | 71 2.8 |
| Effective Top Tube (F) | 530.1 20.87 | 547.94 21.57 | 572.01 22.52 | 596.09 23.47 |
| Bb Height (G) | 286 11.26 | 286 11.26 | 286 11.26 | 286 11.26 |
| Bb Offset (H) | 72 2.83 | 72 2.83 | 72 2.83 | 72 2.83 |
| Chainstay Length (I) | 440 17.32 | 440 17.32 | 440 17.32 | 440 17.32 |
| Wheelbase (J) | 1033.28 40.68 | 1053.29 41.47 | 1068.71 42.08 | 1088.48 42.85 |
| Frame Reach (K) | 380 14.96 | 390 15.35 | 400 15.75 | 410 16.14 |
| Frame Stack (L) | 541.24 21.31 | 569.52 22.42 | 599.87 23.62 | 628.23 24.73 |
| Standover Height (M) | 703.45 27.69 | 734.95 28.94 | 763.05 30.04 | 792.95 31.22 |
FAQ
-
What is a fitness bike?
A fitness bike is a bicycle that you can use for daily exercise. It comes with an aggressive frame and a flat handlebar, allowing you to pursue speed confidently.
-
What are the differences compared to urban/city bikes in general?
A fitness bike features a more aggressive riding position compared to typical urban bikes. This is designed to provide efficient and fast performance while riding. Urban bikes, on the other hand, are designed for rider comfort during commuting.
-
What types of terrains can be navigated with the Path F4?​
With its 700 x 35c tires, you can navigate various urban terrains such as asphalt, pavement, and uneven roads that you might encounter during your journey.​
-
Can the Path F4 tires be replaced? If so, what width of tires is compatible?​
The tires on the Path F4 are compatible with widths ranging from 28c up to a maximum of 35c.
-
What bike accessories are compatible with the Polygon Path F4?​
The Polygon Path F4 can be equipped with a bottle cage, front and rear fenders, a frame bag, and a front carrier.​
-
Is the Path F4 still suitable for commuting?​
Apart from being used for exercise, the Path F4 is still comfortable for commuting or daily activities. However, the comfort level might differ from that of an urban bike.​
