STRATTOS S: Unbeatable Value Road Bike

Endurance Road Comfort | ALX Alloy Frame | 4 Available Builds

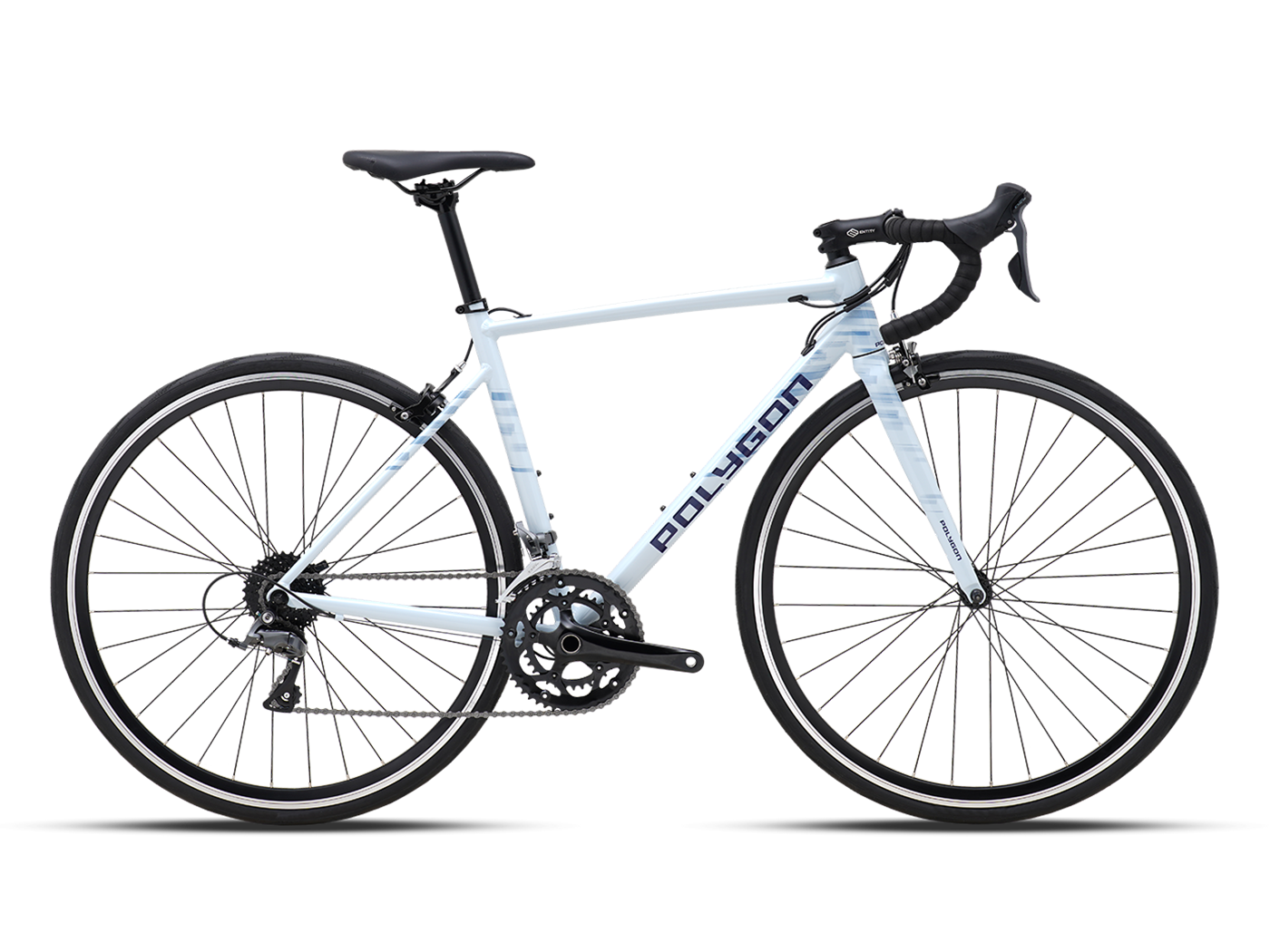

The Polygon STRATTOS S road bike is your gateway to unforgettable road cycling adventures. Designed around a lightweight ALX alloy frame and vibration-damping carbon fork, we spec'd a mix of Shimano components to offer unbeatable value. The STRATTOS S is the perfect first road bike for many but a quality ride for all.

STRATTOS S2

AUD $569.00

Color

Light Blue

Size

Clear

Find my size

FIND DEALER

SKU : 503202

Features

ALX Performance Alloy Frame

The STRATTOS S ALX is built using 6061 triple-butted aluminum tubing. This heat-treated alloy is engineered to be significantly lighter than standard aluminum while maintaining the rugged durability required for real-world riding and commuting.
ACX Vibration-Dampening Carbon Fork

Every model in the STRATTOS S ALX line features a full ACX carbon fork. This ensures greater comfort by reducing road buzz and hand fatigue.
Internal Cable Routing

Borrowing from the premium ACX lineup, the ALX frames utilize internal cable routing through the downtube.
Brake Options

Choose between lightweight Rim Brakes for classic simplicity or Disc Brakes for superior stopping power.

Specification

Frameset

Frameset

ALX ALL-ROUND

Fork

LIGHT WEIGHT CARBON FORK

Frame Color

LIGHT BLUE

Decal Color

INDIGO BLUE
Drivetrain

Shifter

SHIMANO CLARIS ST-R2000, 2x8-SPEED DUAL CONTROL LEVER

Crank

PROWHEEL OUNCE-421C-TT-N 50/34T

Cassette

SHIMANO CS-HG31 11-30T

Rear Derailleur

SHIMANO CLARIS RD-R2000-SS DIRECT ATTACH

BB

PROWHEEL BSA THREADED 68mm FOR 2-PIECE CRANKSET

Chain

KMC Z-8.3

Pedal

ALLOY CAGE & BODY W/ REFLECTOR
Cockpit

Saddle

BLACK, STEEL ø 7mm

Seatpost

POLYGON SPORT ALLOY, DxL: 27.2 x 350mm

Handlebar

POLYGON SPORT ALLOY, W: 400mm (XS, S, M) / 420mm (L, XL), BB: 31.8mm, R/D: 124mm, B/R: 80mm

Handlestem

POLYGON OE ALLOY, EXT: 90mm (XS, S, M) / 105mm (L, XL), BB: 31.8mm, R/D: 10degree

Headset

ZERO STACK (ZS) SEALED BEARING FOR STRAIGHT HEAD TUBE, ZS 44/28.6 | ZS 44/30
Wheel & Tire

Wheel Set

C04 ALLOY

Tire

PERFORMANCE TIRE 700x28C

Rim

ALLOY DOUBLE WALL 622-15 32H FOR TYRE 622-20/35 W/ CNC

Hub

F: ALLOY QRx100mm 32H / R: ALLOY QRx130mm 32H
Brake

Brake Lever

SHIMANO CLARIS ST-R2000

Brake Caliper

TEKTRO R315

Geometry & Size

mm inch

Find your size

	S	M	L	XL
Height (cm)	162-170	168-176	174-181	180-187
Seat Tube Length (A)	460 18.11	490 19.29	520 20.47	550 21.65
Seat Tube Angle (B)	74.5 2.93	74 2.91	73.5 2.89	73.5 2.89
Effective Seat Tube Angle (C)	74.5 2.93	74 2.91	73.5 2.89	73.5 2.89
Head Tube Length (D)	120 4.72	140 5.51	160 6.3	180 7.09
Head Tube Angle (E)	70.5 2.78	71 2.8	72 2.83	72 2.83
Effective Top Tube (F)	525 20.67	540 21.26	555.7 21.88	566.7 22.31
Bb Height (G)	268 10.55	268 10.55	268 10.55	268 10.55
Bb Offset (H)	75 2.95	75 2.95	75 2.95	75 2.95
Chainstay Length (I)	415 16.34	415 16.34	415 16.34	415 16.34
Wheelbase (J)	994.3 39.15	1001.1 39.41	1003.1 39.49	1014.6 39.94
Frame Reach (K)	381 15	385 15.16	389 15.31	394.3 15.52
Frame Stack (L)	520 20.47	540.5 21.28	563.1 22.17	582.1 22.92
Standover Height (M)	708 27.87	736 28.98	764 30.08	791 31.14
