BEND: Adventure is Around the Corner

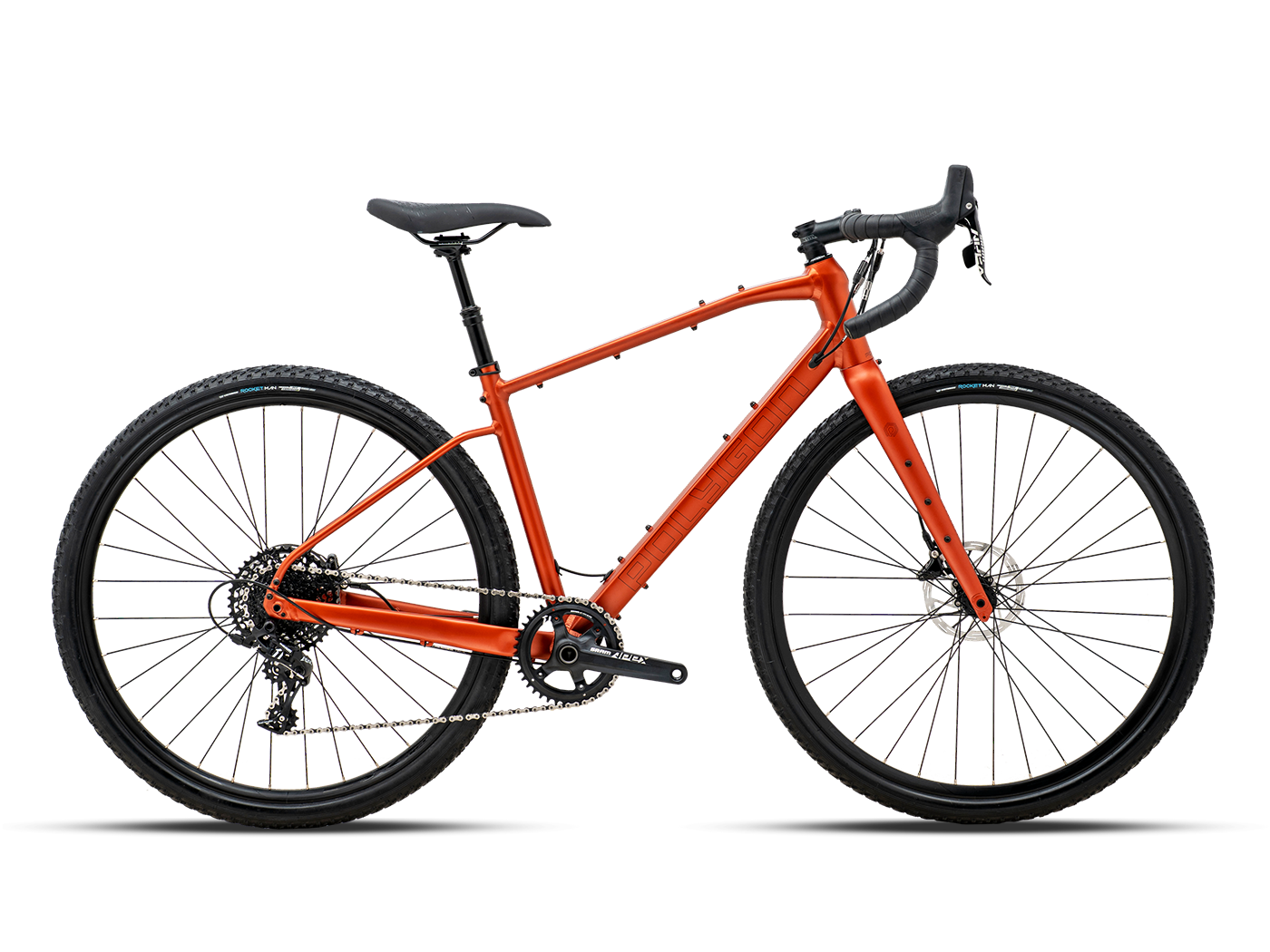

BEND R7
Features
-
1x Drivetrain
The wide range 1x drivetrain improves chain retention whilst keeping the ride quiet, so you can focus on the trail ahead.
-

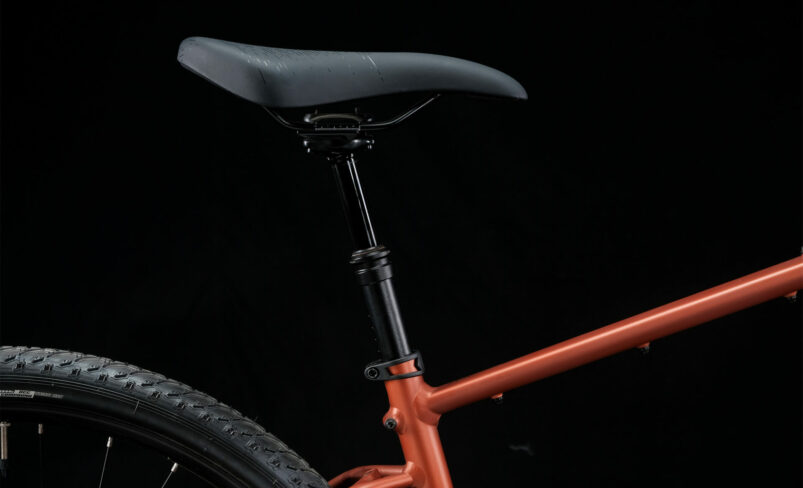

Dropper Post
With up to 70mm drop, letting you lower your centre of gravity for increased confidence on the descents.
-

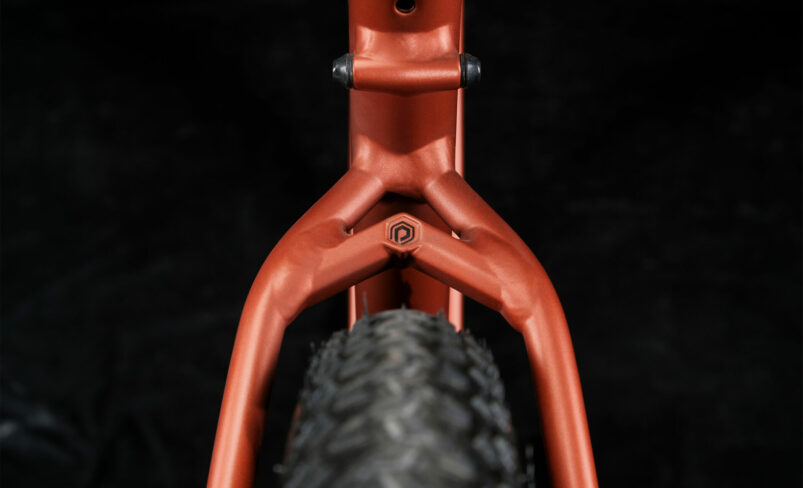

50c tire clearance
Wider tires improve the handling of a loaded bike, increase traction whilst reducing the risk of pinch flats on rough terrain.
-

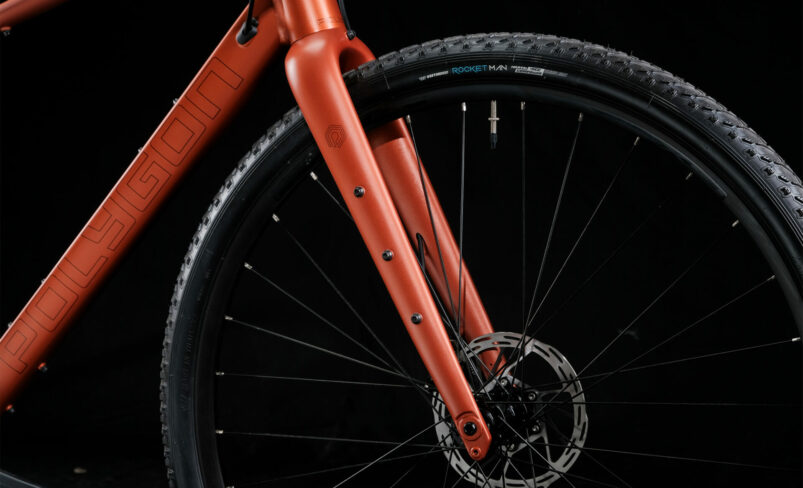

Frame and accessory mounts
With up to 14 universal mounts, there's plenty of scope to attach any bag or kit that suits your adventure.
Specification
-
Frameset
FramesetForkFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 150-163 | 163-175 | 175-188 | 188-195 |
| Seat Tube Length (A) | 405 15.94 | 450 17.72 | 495 19.49 | 540 21.26 |
| Seat Tube Angle (B) | 74.5 2.93 | 74 2.91 | 73.5 2.89 | 73.5 2.89 |
| Effective Seat Tube Angle (C) | 74.5 2.93 | 74 2.91 | 73.5 2.89 | 73.5 2.89 |
| Head Tube Length (D) | 140 5.51 | 165 6.5 | 200 7.87 | 235 9.25 |
| Head Tube Angle (E) | 70 2.76 | 70 2.76 | 70.5 2.78 | 70.5 2.78 |
| Effective Top Tube (F) | 520 20.47 | 550 21.65 | 580 22.83 | 610 24.02 |
| Bb Height (G) | 282 11.1 | 282 11.1 | 282 11.1 | 282 11.1 |
| Bb Offset (H) | 72 2.83 | 72 2.83 | 72 2.83 | 72 2.83 |
| Chainstay Length (I) | 440 17.32 | 440 17.32 | 440 17.32 | 440 17.32 |
| Wheelbase (J) | 1030 40.55 | 1056 41.57 | 1078 42.44 | 1110 43.7 |
| Frame Reach (K) | 364 14.33 | 382 15.04 | 396 15.59 | 416 16.38 |
| Frame Stack (L) | 563 22.17 | 612 24.09 | 621 24.45 | 654 25.75 |
| Standover Height (M) | 694 27.32 | 736 28.98 | 781 30.75 | 823 32.4 |
Related Products
The mixture of urban bike and gravel bike has never been so rightfully deserved by a bike
Equal parts city commuter and gravel explorer, the Polygon PATH is built for riders who want to do it all without switching bikes. A lightweight ALX frame with upright geometry…
Polygon Tambora A4 gravel bike a perfect fusion of all-road and gravel capabilities.
Polygon Tambora A5 gravel bike – a perfect fusion of all-road and gravel capabilities.
FAQ
-
Where are the mounts to hold gear? If I wanted to buy a bolted bag, what are the specifications? For Full Frame and half frame
There are 16 mounts on the Polygon Bend R series and 10 mounts on the Polygon Bend V9X; 5 on the top tube, 6 on the down tube, and 6 on the carbon rigid fork for the Bend R Series. We're using universal-size mounts, so there are no special specifications for the compatible bolted bag. You can freely choose the bolted bag that fits you best.
-
What is the biggest chainring I can fit?
The maximum chainring of Bend Series is 42T
-
What are the biggest rotors I can fit?
The biggest rotors for the Bend Series are 160 mm
-
Can you fit mudguards, pannier racks front and back?
Absolutely!
-
How do you use the dropper?
For the Bend R7, use the left lever to adjust your dropper seat post. For the Bend R9X and V9X, press both levers simultaneously (right & left) to adjust your dropper seat post.
-
How long do the wireless shifting mechanisms and wireless dropper mechanisms last?
The wireless dropper mechanism approximately lasts for 40 riding hours, while the wireless shifting mechanism lasts for about 60 riding hours. The actual hours may vary depending on the terrain and how frequently the wireless electronic components are used.
-
Is it possible to upgrade a road bike to a gravel bike?
This should not be possible because of the small tire clearance and its fixed aggressive geometry.
-
What is the best configuration for bikepacking gear?
The best configuration of bikepacking typically is a lightweight and compact gear that can bring all of your needs. But it can vary depending on the individual's preferences, the specific trip's requirements, and the terrain being covered.
-
How does the geometry of gravel bikes differ from road bikes?
The gravel bike has a higher stack, slacker head angle, and longer wheelbase for stability.
-
What are the gearing differences on gravel vs road bikes?
A gravel bike is using a bigger sprocket than a road bike.
