YOUR E-COMMUTING PARTNER

E-commuter that suits you perfectly

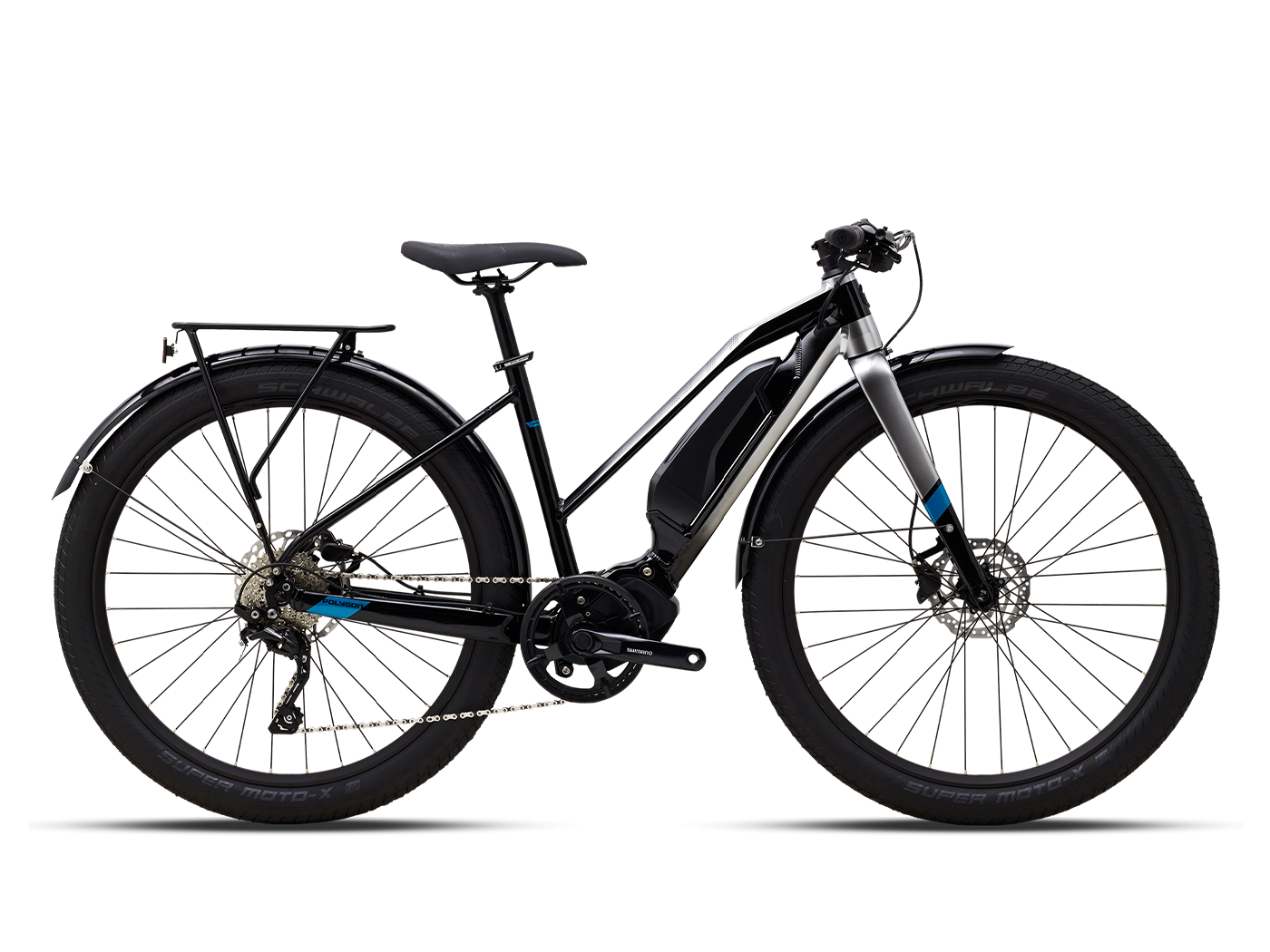

Polygon Path E5, an upgraded pedelec city bike supported with an electric pedal-assist system component starting to operate through rider’s pedaling power. With the help of the attached system, riders don’t need to pedal as hard as riding a conventional bike, but still doing a workout and enjoying the city scenery. Equipped with upgraded geometry and 27.5 x 2.4 sleek tire for better balance and stable riding for any urban rider or citizen starting to ride a bike for their daily commuting life. The Path E5’s requires less effort to brings you further and faster.

Typ roweru:

PATH E5 LADY

zł10.390,38

Kolor

Rozmiar

Wyczyść

Znajdź swój rozmiar

ZNAJDŹ SPRZEDAWCĘ

SKU : 502694-1

Cechy

Double you

Our pedal-assist system will multiply your effort up to max 32 km/h with 5 assist variations. Enjoy flat hills and smooth paved roads up to 95 km miles of range when fully charged
Easy to ride, yet easy to maintain

It's water-resistant! Rider doesn't have to worry when it rains or goes through puddles.
Rough conditions won’t stop us

With its full carbon fork to smooth out the ride, and Hydraulic Disc Brakes that let you experience a smooth and powerful braking performance; believe me, there’s no condition that can stop you to explore more.

Specyfikacja

Zestaw ramy

Zestaw ramy

AL6 PAVEMENT, 10X135MM O.L.D., IS MOUNT, INTERNAL SHIFTING ROUTE

Widelec

FULL CARBON RIGID FORK
Napęd

Manetki

SHIMANO DEORE SL-6000-R

Mechanizm Korbowy

CHAINWHEEL SHIMANO FC-E5010 170MM (43-49MM) 175MM (52MM), CHAINRING SHIMANO SM-CRE50 44T

Kaseta

SHIMANO DEORE CS-HG500, 11-34T

Tylna Przerzutka

SHIMANO DEORE RD-6000SGS

Środek Suportu

(MID MOTOR) SHIMANO DRIVE UNIT DU-E5000

Łańcuch

KMC X10E

Pedały

FLAT ALLOY PEDAL
Kokpit

Siodła

ENTITY SADDLE, STEEL RAIL

Wspornik Siodła

ENTITY XPERT, ALLOY, 27.2X300MM

Kierownica

ENTITY XPERT, ALLOY, 700MM

Wspornik Kierownicy

ENTITY XPERT, ALLOY, 60MM (XS-S), 80MM (M-L)

Stery

ZS 44/28.6 | ZS 56/40
Koło I Opona

Koła

ALLOY DOUBLE WALL RIMS WITH ALLOY HUB (TUBELESS READY)

Rozmiar koła

27.5”

Opona

SCHWALBE SUPER MOTO-X 27.5”X2.40
Hamulce

Zacisk Hamulca

SHIMANO BR-MT201

Tarcze

SHIMANO F:SM-RT10 160mm & R:RT-EM600 180mm CENTER-LOCK
Electric Parts

Sensor

SHIMANO SPEED SENSOR UNIT

Battery

SHIMANO BT-E8010, 504W h

Extras

SHIMANO CYCLE COMPUTER SC-E7000 W / SW ITCH SW -E6060

Geometria I Rozmiar

mm inch

Znajdź swój rozmiar

	S	M
Wzrost(cm)	150-160	160-170
Seat Tube Length (A)	430 16.93	460 18.11
Seat Tube Angle (B)	75 2.95	74.5 2.93
Effective Seat Tube Angle (C)	75 2.95	74.5 2.93
Head Tube Length (D)	120 4.72	140 5.51
Head Tube Angle (E)	71 2.8	71 2.8
Effective Top Tube (F)	525 20.67	546 21.5
Bb Height (G)	287 11.3	287 11.3
Bb Offset (H)	70 2.76	70 2.76
Chainstay Length (I)	460 18.11	460 18.11
Wheelbase (J)	1050 41.34	1067 42.01
Frame Reach (K)	380 14.96	390 15.35
Frame Stack (L)	542 21.34	561 22.09
Standover Height (M)	525 20.67	528 20.79

FAQ

Can I swap it with suspension fork?

Swapping the fork will change the geometry and lead to an uncomfortable ride so we don't recommend it
What is the wheel size?

2.75”X2.40”
What is the top speed of the bike?

32kmh
What is E-bike?

A bike equipped with electricity component for an easier ride
How pedal assist works?

Sensor on the BB will read pressure while pedaling, sending information to the motor so your pedalling will be assisted then
Where can I ride E-bike Urban?

You can ride swiftly on city roads
