YOUR E-COMMUTING PARTNER

E-commuter that suits you perfectly

Polygon Path E5, an upgraded pedelec city bike supported with an electric pedal-assist system component starting to operate through rider’s pedaling power. With the help of the attached system, riders don’t need to pedal as hard as riding a conventional bike, but still doing a workout and enjoying the city scenery. Equipped with upgraded geometry and 27.5 x 2.4 sleek tire for better balance and stable riding for any urban rider or citizen starting to ride a bike for their daily commuting life. The Path E5’s requires less effort to brings you further and faster.

Typ roweru:

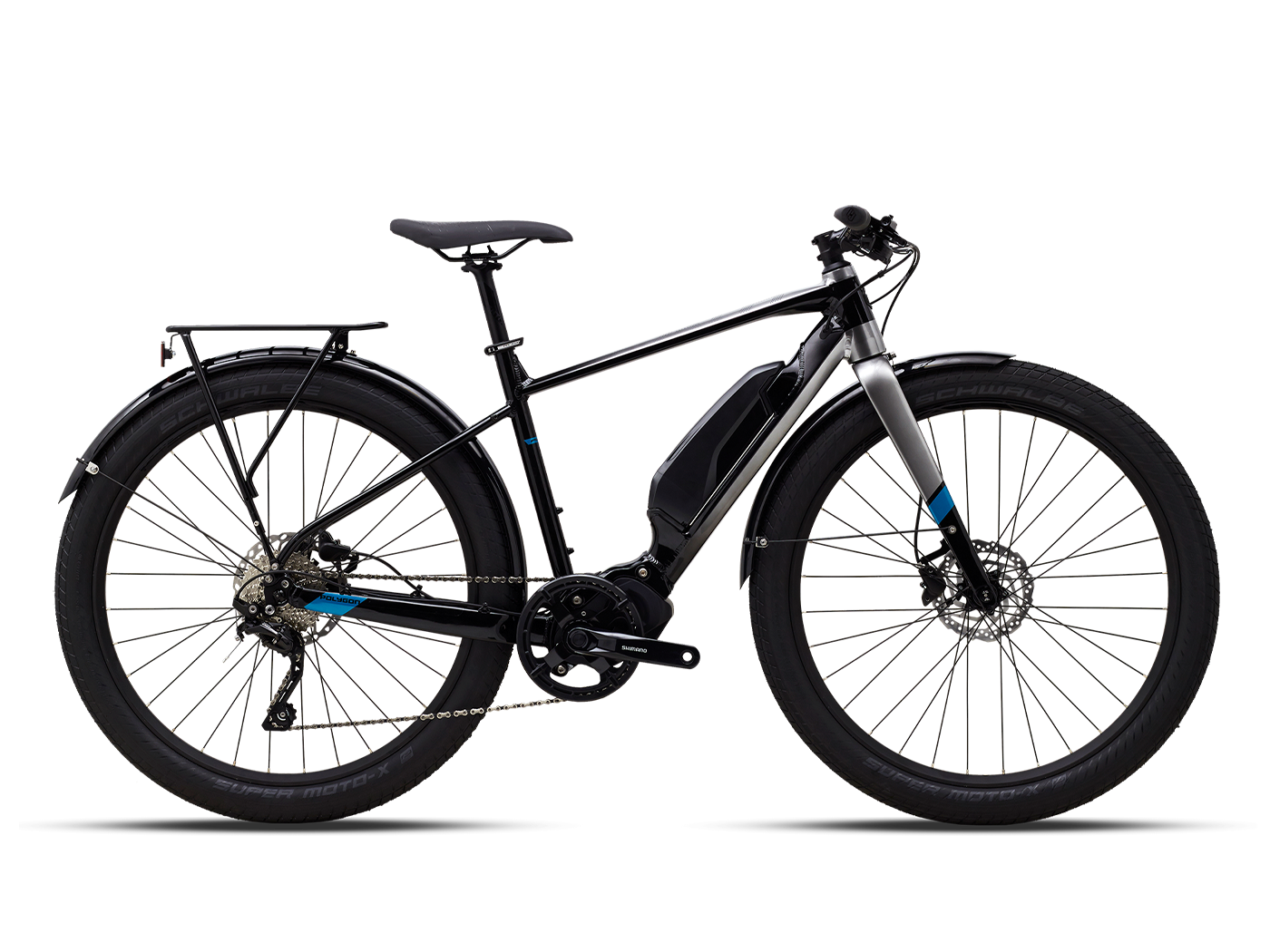

PATH E5 GENT

Kolor

Rozmiar

Wyczyść

Znajdź swój rozmiar

ZNAJDŹ SPRZEDAWCĘ

SKU : 502694

Cechy

Double you

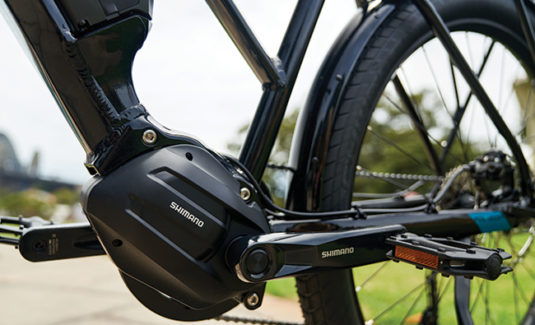

Our pedal-assist system will multiply your effort up to max 32 km/h with 5 assist variations. Enjoy flat hills and smooth paved roads up to 95 km miles of range when fully charged
Easy to ride, yet easy to maintain

It's water-resistant! Rider doesn't have to worry when it rains or goes through puddles.
Rough conditions won’t stop us

With its full carbon fork to smooth out the ride, and Hydraulic Disc Brakes that let you experience a smooth and powerful braking performance; believe me, there’s no condition that can stop you to explore more.

Specyfikacja

Zestaw ramy

Zestaw ramy

AL6 PAVEMENT, 10X135MM O.L.D., IS MOUNT, INTERNAL SHIFTING ROUTE

Widelec

FULL CARBON RIGID FORK

Amortyzator Tylny

-
Napęd

Manetki

SHIMANO DEORE SL-6000-R

Mechanizm Korbowy

CHAINWHEEL SHIMANO FC-E5010 170MM (43-49MM) 175MM (52MM), CHAINRING SHIMANO SM-CRE50 44T

Kaseta

SHIMANO DEORE CS-HG500, 11-34T

Tylna Przerzutka

SHIMANO DEORE RD-6000SGS

Środek Suportu

(MID MOTOR) SHIMANO DRIVE UNIT DU-E5000

Łańcuch

KMC X10E

Pedały

FLAT ALLOY PEDAL
Kokpit

Siodła

ENTITY SADDLE, STEEL RAIL

Wspornik Siodła

ENTITY XPERT, ALLOY, 27.2X300MM

Kierownica

ENTITY XPERT, ALLOY, 700MM

Wspornik Kierownicy

ENTITY XPERT, ALLOY, 60MM (XS-S), 80MM (M-L)

Stery

ZS 44/28.6 | ZS 56/40
Koło I Opona

Koła

ALLOY DOUBLE WALL RIMS WITH ALLOY HUB (TUBELESS READY)

Rozmiar koła

27.5”

Opona

SCHWALBE SUPER MOTO-X 27.5”X2.40
Hamulce

Klamki Hamulcowe

SHIMANO BR-MT201
Electric Parts

Sensor

SHIMANO SPEED SENSOR UNIT

Battery

SHIMANO BT-E8010, 504W h

Extras

SHIMANO CYCLE COMPUTER SC-E7000 W / SW ITCH SW -E6060
Inny

Waga Ramy

19.9 Kg* Gent 52(L)

Geometria I Rozmiar

mm inch

Znajdź swój rozmiar

	M	L	XL
Wzrost(cm)	160-170	170-180	180-190
Seat Tube Length (A)	460 18.11	490 19.29	520 20.47
Seat Tube Angle (B)	74.5 2.93	74 2.91	73.5 2.89
Effective Seat Tube Angle (C)	74.5 2.93	74 2.91	73.5 2.89
Head Tube Length (D)	140 5.51	170 6.69	200 7.87
Head Tube Angle (E)	71 2.8	71.5 2.81	71.5 2.81
Effective Top Tube (F)	564 22.2	570 22.44	594 23.39
Bb Height (G)	287 11.3	287 11.3	287 11.3
Bb Offset (H)	70 2.76	70 2.76	70 2.76
Chainstay Length (I)	460 18.11	460 18.11	460 18.11
Wheelbase (J)	1067 42.01	1082 42.6	1101 43.35
Frame Reach (K)	390 15.35	400 15.75	410 16.14
Frame Stack (L)	561 22.09	592 23.31	620 24.41
Standover Height (M)	704 27.72	736 28.98	766 30.16

FAQ

Can I swap it with suspension fork?

Swapping the fork will change the geometry and lead to an uncomfortable ride so we don't recommend it
What is the wheel size?

2.75”X2.40”
What is the top speed of the bike?

32kmh
What is E-bike?

A bike equipped with electricity component for an easier ride
How pedal assist works?

Sensor on the BB will read pressure while pedaling, sending information to the motor so your pedalling will be assisted then
Where can I ride E-bike Urban?

You can ride swiftly on city roads
