YOUR GATEWAY TO A WHOLE NEW DIMENSION OF FUN

All-rounder road bike built with a UCI approved ACX frame that is astonishingly responsive, smooth, and fast

Cheers to the riders who just cannot get enough! Our all-rounder whiz, Strattos Carbon is designed to accompany its rider on every ride – converting even the final stretch of the longest rides to be just as joyful as the start of any fresh new day. Get ready to hike new mountains and break your personal bests, because this bike will make you perform your best for longer.

STRATTOS S7D

$1,599.00

Color

Size

Clear

Find my size

FIND DEALER

SKU : 503032

Features

Boosted pedaling efficiency

A bicycle has long been touted as the most efficient form of transport, and this bike makes this more apt than ever. The all-new Strattos directly converts each watt of your effort to acceleration with a downtube that is 16% stiffer.
Compliance where it matters

The old myth of compromise between performance and comfort, busted. The new Strattos comes with a specialized seat stay design that absorbs road vibration without reducing stiffness, ensuring that its rider can continually perform without getting fatigued. Along with its Hydraulic Disc Brake for optimum brake performance.
Minimized air drag

From a sleek tubing design to clean cable routings and integrated seat clamp, the new Strattos is designed to cut through the air and save you watts.

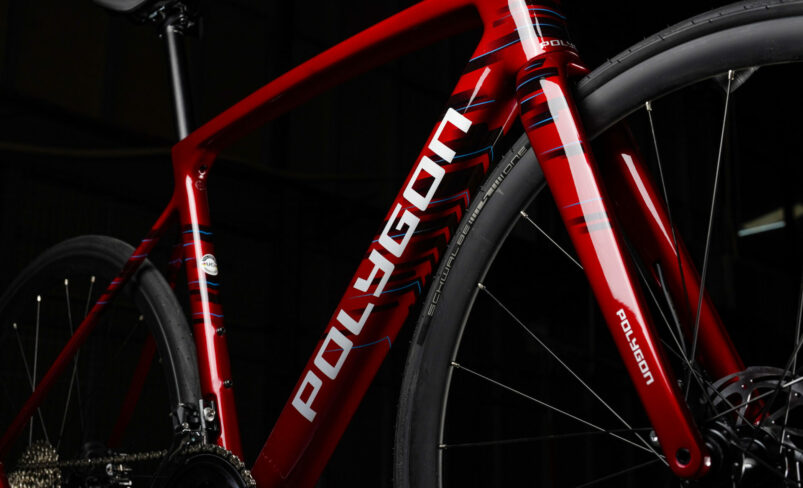

UCI-certified carbon frame and fork for optimum performance

Specification

Frameset

Frameset

ACX ALL-ROUND UCI APPROVED

Fork

ACX ALL-ROUND UCI APPROVED

Frame Color

RED

Decal Color

BLACK
Drivetrain

Shifter

SHIMANO 105 ST-R7120, 2x12-SPEED DUAL CONTROL LEVER

Crank

SHIMANO 105 FC-R7100 50/34T

Cassette

SHIMANO 105 CS-R7101 11-34T

Rear Derailleur

SHIMANO 105 RD-R7100-SS DIRECT ATTACH

BB

SHIMANO BB-RS500-PB, PRESSFIT BB86

Chain

KMC X12
Cockpit

Saddle

FLUX2, CR-MO ø 7mm

Seatpost

POLYGON XPERT ALLOY, DxL: 27.2 x 350mm

Handlebar

POLYGON XPERT ALLOY, W: 400mm (XXS, XS, S) / 420mm (M, L) / 440mm (XL, XXL), BB: 31.8mm, R/D: 125mm, B/R: 70mm

Handlestem

POLYGON XPERT ALLOY, EXT: 90mm (XXS, XS, S) / 100mm (M, L) / 110mm (XL, XXL), BB: 31.8mm, R/D: 10degree

Headset

INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40
Wheel & Tire

Wheel Set

POLYGON RD6 DISC

Tire

SCHWALBE ONE 700x28C

Rim

622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY

Hub

F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS 6-BOLTS / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS 6-BOLTS
Brake

Brake Lever

SHIMANO 105 ST-R7120

Brake Caliper

SHIMANO 105 BR-R7170 HYDRAULIC

Rotor

TRP TR-29 140mm 6-BOLTS

Geometry & Size

mm inch

Find your size

	XXS	XS	S	M	L	XL	XXL
Height (cm)	151-161	154-164	162-170	168-176	174-181	180-187	185-195
Seat Tube Length (A)	439.1 17.29	454.2 17.88	474.2 18.67	500 19.69	524.7 20.66	554.3 21.82	584.2 23
Seat Tube Angle (B)	75 2.95	75 2.95	74.5 2.93	74 2.91	73.5 2.89	73 2.87	73 2.87
Effective Seat Tube Angle (C)	75 2.95	75 2.95	74.5 2.93	74 2.91	73.5 2.89	73 2.87	73 2.87
Head Tube Length (D)	90 3.54	90 3.54	105 4.13	130 5.12	155 6.1	185 7.28	215 8.46
Head Tube Angle (E)	71.5 2.81	72 2.83	72.5 2.85	73 2.87	73 2.87	73 2.87	73 2.87
Effective Top Tube (F)	505 19.88	515 20.28	525 20.67	540 21.26	555 21.85	570 22.44	590 23.23
Bb Height (G)	271.5 10.69	271.5 10.69	271.5 10.69	274 10.79	274 10.79	276.5 10.89	276.5 10.89
Bb Offset (H)	72.5 2.85	72.5 2.85	72.5 2.85	70 2.76	70 2.76	67.5 2.66	67.5 2.66
Chainstay Length (I)	415 16.34	415 16.34	415 16.34	415 16.34	415 16.34	417 16.42	417 16.42
Wheelbase (J)	969.7 38.18	975.6 38.41	977.3 38.48	984.9 38.78	995 39.17	1007.9 39.68	1027.8 40.46
Frame Reach (K)	372.9 14.68	382.5 15.06	383.4 15.09	386.9 15.23	389.8 15.35	391.5 15.41	402.8 15.86
Frame Stack (L)	493.2 19.42	494.7 19.48	510.7 20.11	533.9 21.02	557.7 21.96	583.8 22.98	612.4 24.11
Standover Height (M)	717.13 28.23	729.43 28.72	748.69 29.48	775.85 30.55	801.17 31.54	832.25 32.77	862.17 33.94
