UNVEIL THE TAMBORA
TAMBORA G8X
Features
-

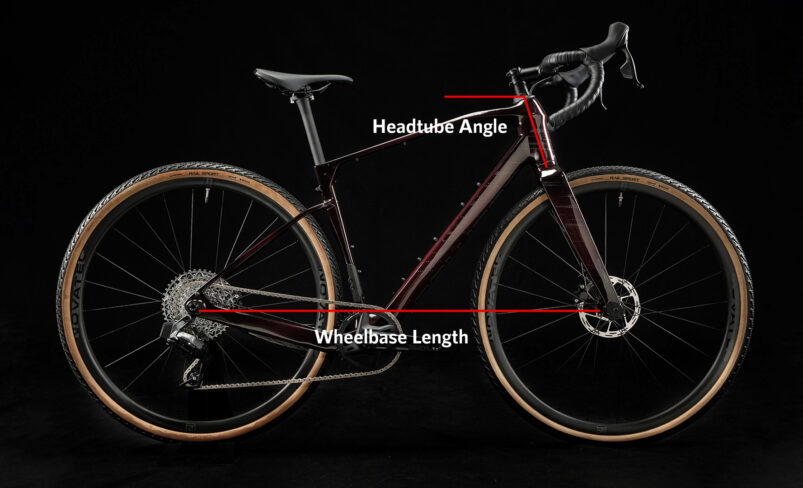

Powerful Speed and Unwavering Stability
No need to compromise between speed, stability, and confidence. The wheelbase length ensures stability, while the precise head tube angle instills confidence in your steering and control.
-

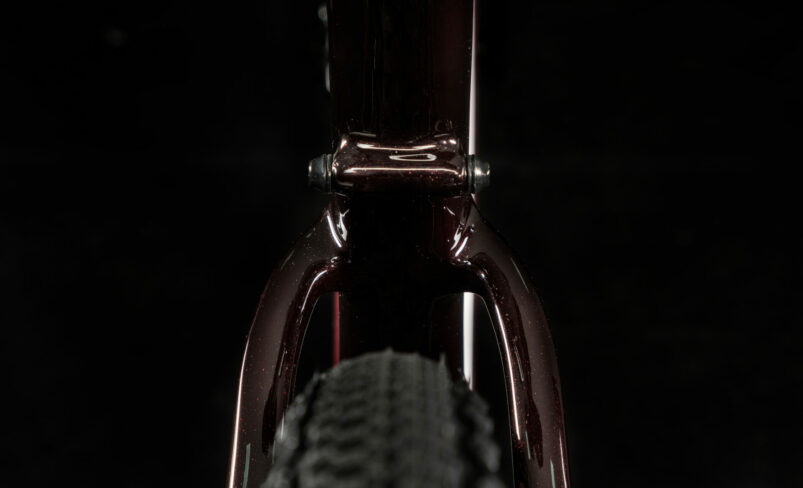

Conquer Diverse Terrains with Ample Tire Clearance
Accomodating up to 45c of tire for a long position flip chip and 35c for a short position flip chip.
-

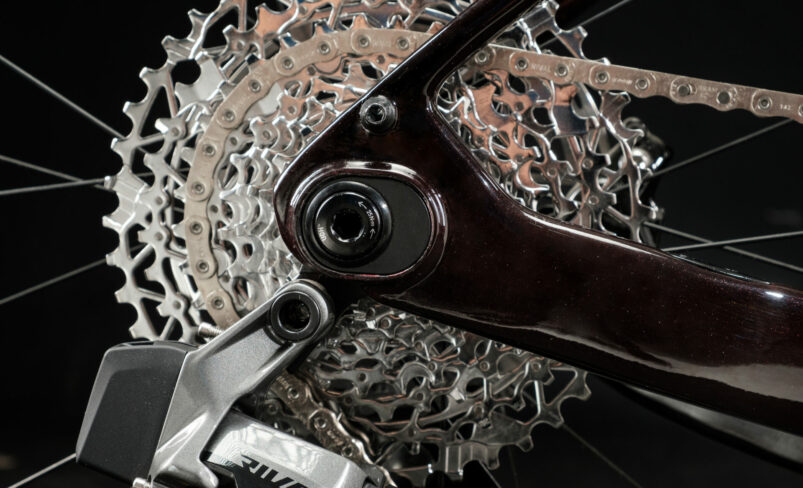

Free to Choose in a Flip of a Switch
Where you can switch between stability and control from a long position flip chip or speed and agility from a short position flip chip.
-
Enjoy our first carbon gravel bike!
Introducing our first carbon gravel bike – Tambora G. Experience seamless power transfer at high speeds and become one with the ride.
-

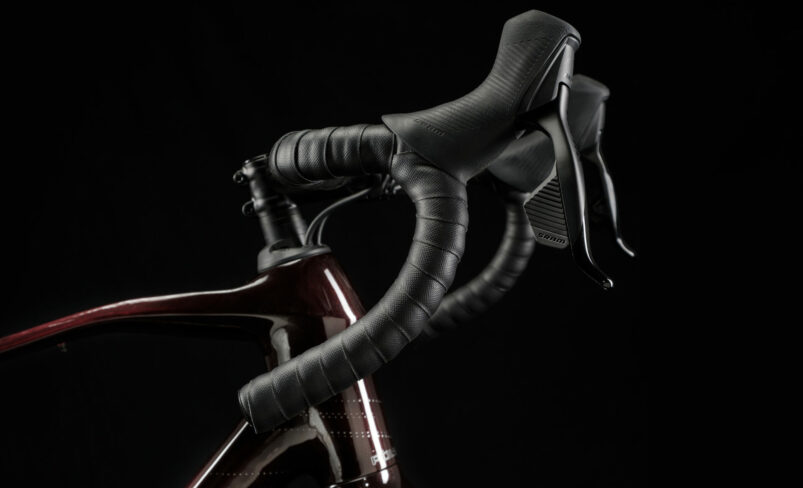

Wireless shifting
Experience the ultimate cycling pleasure with Polygon Tambora G8X’s new SRAM Rival 1 eTap AXS, ensuring a superior shifting experience.​
Specification
-
Frameset
FramesetForkFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChain
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 150-163 | 163-175 | 175-188 | 188-195 |
| Seat Tube Length (A) | 404 15.91 | 448 17.64 | 492 19.37 | 535 21.06 |
| Seat Tube Angle (B) | 74.5 2.93 | 74 2.91 | 73.5 2.89 | 73 2.87 |
| Effective Seat Tube Angle (C) | 74.5 2.93 | 74 2.91 | 73.5 2.89 | 73 2.87 |
| Head Tube Length (D) | 143 5.63 | 163 6.42 | 193 7.6 | 221 8.7 |
| Head Tube Angle (E) | 70 2.76 | 71.5 2.81 | 71.8 2.83 | 72 2.83 |
| Effective Top Tube (F) | 526 20.71 | 551 21.69 | 581 22.87 | 611 24.06 |
| Bb Height (G) | 280 11.02 | 280 11.02 | 280 11.02 | 280 11.02 |
| Bb Offset (H) | 78 3.07 | 78 3.07 | 78 3.07 | 78 3.07 |
| Chainstay Length (I) | 425 16.73 | 425 16.73 | 425 16.73 | 425 16.73 |
| Wheelbase (J) | 1017 40.04 | 1022 40.24 | 1045 41.14 | 1067 42.01 |
| Frame Reach (K) | 369 14.53 | 381 15 | 397 15.63 | 412 16.22 |
| Frame Stack (L) | 568 22.36 | 593 23.35 | 622 24.49 | 650 25.59 |
| Standover Height (M) | 716 28.19 | 755 29.72 | 798 31.42 | 833 32.8 |
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 150-163 | 163-175 | 175-188 | 188-195 |
| Seat Tube Length (A) | 404 15.91 | 448 17.64 | 492 19.37 | 535 21.06 |
| Seat Tube Angle (B) | 74.75 2.94 | 74.26 2.92 | 73.76 2.9 | 73.26 2.88 |
| Effective Seat Tube Angle (C) | 74.75 2.94 | 74.26 2.92 | 73.76 2.9 | 73.26 2.88 |
| Head Tube Length (D) | 143 5.63 | 163 6.42 | 193 7.6 | 221 8.7 |
| Head Tube Angle (E) | 70.25 2.77 | 71.77 2.83 | 72.06 2.84 | 72.26 2.84 |
| Effective Top Tube (F) | 526 20.71 | 550 21.65 | 581 22.87 | 610 24.02 |
| Bb Height (G) | 265 10.43 | 265 10.43 | 265 10.43 | 265 10.43 |
| Bb Offset (H) | 79 3.11 | 79 3.11 | 79 3.11 | 79 3.11 |
| Chainstay Length (I) | 415 16.34 | 415 16.34 | 415 16.34 | 415 16.34 |
| Wheelbase (J) | 997 39.25 | 1003 39.49 | 1026 40.39 | 1048 41.26 |
| Frame Reach (K) | 371 14.61 | 383 15.08 | 400 15.75 | 415 16.34 |
| Frame Stack (L) | 566 22.28 | 591 23.27 | 621 24.45 | 648 25.51 |
| Standover Height (M) | 701 27.6 | 741 29.17 | 784 30.87 | 819 32.24 |
Related Products
​The mixture of urban bike and gravel bike has never been so rightfully deserved by a bike
​The mixture of urban bike and gravel bike has never been so rightfully deserved by a bike. The adventurous version of urban bike — Path, Path X, will take your…
Polygon Tambora A a perfect fusion of all-road and gravel capabilities.
Polygon Tambora A – a perfect fusion of all-road and gravel capabilities.​
Polygon Tambora A – a perfect fusion of all-road and gravel capabilities.​
FAQ
-
Where are the mounts to hold gear? If I wanted to buy a bolted bag, what are the specifications? For full frame and half frame
There are 14 mounts on the Polygon Tambora series; 3 on the top tube, 7 on the down tube, 2 on the seat tube, and a pair of rear carrier mounts. We're using universal-size mounts, so there are no special specifications for the compatible bolted bag. You can freely choose the bolted bag that fits you best.​
-
What is the biggest chainring I can fit?​
The maximum chainring of Tambora series is 42T​
-
What are the biggest rotors I can fit?​
The biggest rotors for the Tambora series are 160 mm​
-
Can you fit mudguards, pannier racks front and back?​
Of course! Tambora Series can be equipped with a rear pannier or rear mudguard.
-
How do you change the flip chip?
The Tambora has flip chips located at the rear dropouts and the base of the fork, allowing you to easily switch between gravel and all-road configurations. Watch the full video here.
-
Can I fit a dropper post?
Yes! But it should be a gravel bike dropper post which commonly designed from 50mm to 125mm of travel.​
-
Is it possible to upgrade a road bike to a gravel bike?​
This should not be possible because of the small tire clearance and its fixed aggressive geometry.​
-
What is the best configuration for bikepacking gear?​
The best configuration of bikepacking typically is a lightweight and compact gear that can bring all of your needs. But it can vary depending on the individual's preferences, the specific trip's requirements, and the terrain being covered.​
-
How does the geometry of Tambora bikes differ from gravel bikes and other road bikes?
The gravel bike has a higher stack, slacker head angle, and longer wheelbase for stability.​
-
What are the gearing differences on gravel vs road bikes?​
A gravel bike is using a bigger sprocket than a road bike.​
