XC, Reimagined.

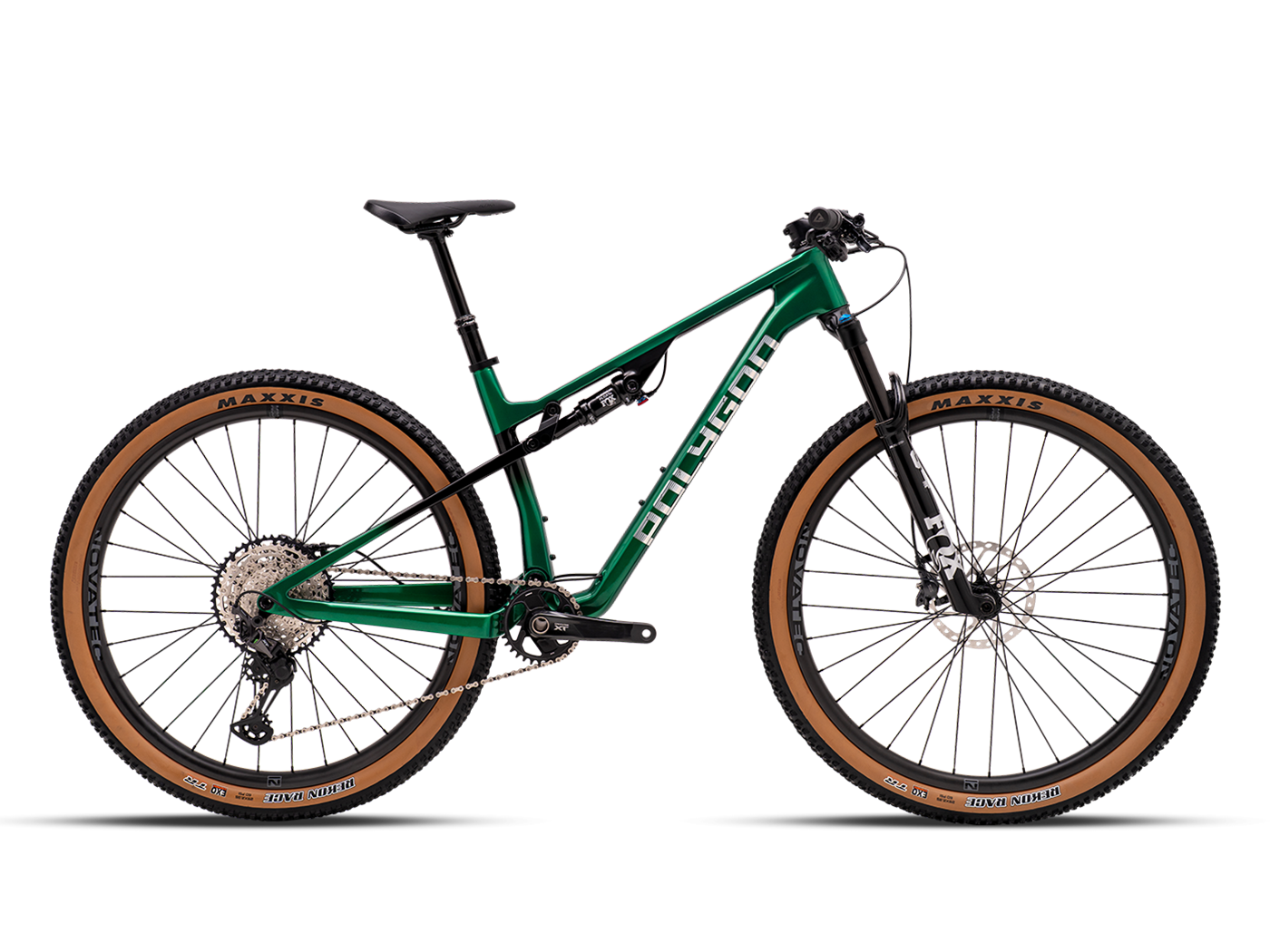

SYNCLINE DR8
Features
-
Fast but Composed
With 110mm of efficient rear travel and 120mm up front, the Syncline DR’s single-pivot suspension balances speed with control — staying smooth through roots, planted in rock gardens, and precise in switchbacks.
-
No Watt Wasted
Every pedal stroke drives straight into forward momentum through a lightweight carbon chassis and a threaded BSA73 bottom bracket for maximum stiffness and easy service.
-
Locked in Precision
Sleek internal routing keeps things quiet, while a 12x148mm Boost thru-axle and UDH hanger deliver rock-solid drivetrain stability when you’re battling for position and precise shifting under pressure.
-
Traction, Wherever You Need It
From rocky climbs to muddy sprints, with 29x2.35 tires, the Syncline DR delivers added grip, smoother comfort, and confident control.
-
Geometry Made for Modern XC
With modern geometry and a 4-bar flex-stay suspension platform, the Syncline DR is built to take on today’s increasingly demanding XC courses.
Specification
-
Frameset
FramesetForkRear ShockSizeFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor

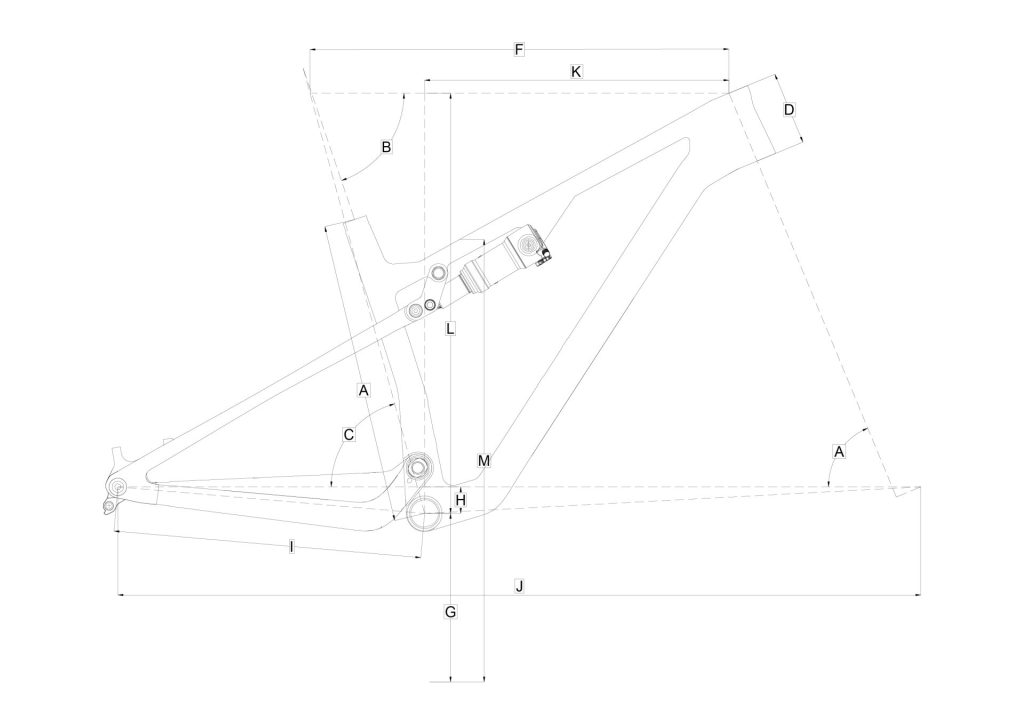

Geometry & Size
| S | M | L | XL | |
|---|---|---|---|---|
| Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
| Seat Tube Length (A) | 384 15.12 | 432 17.01 | 470 18.5 | 510 20.08 |
| Seat Tube Angle (B) | 74.75 2.94 | 74.75 2.94 | 74.75 2.94 | 74.75 2.94 |
| Effective Seat Tube Angle (C) | 71.2 2.8 | 71.2 2.8 | 71.2 2.8 | 71.2 2.8 |
| Head Tube Length (D) | 95 3.74 | 105 4.13 | 115 4.53 | 125 4.92 |
| Head Tube Angle (E) | 67.5 2.66 | 67.5 2.66 | 67.5 2.66 | 67.5 2.66 |
| Effective Top Tube (F) | 570 22.44 | 599 23.58 | 625 24.61 | 653 25.71 |
| Bb Height (G) | 334.5 13.17 | 334.5 13.17 | 334.5 13.17 | 334.5 13.17 |
| Bb Offset (H) | 38 1.5 | 38 1.5 | 38 1.5 | 38 1.5 |
| Chainstay Length (I) | 440 17.32 | 440 17.32 | 440 17.32 | 440 17.32 |
| Wheelbase (J) | 1217.7 47.94 | 1188.9 46.81 | 1160 45.67 | 1131 44.53 |
| Frame Reach (K) | 410 16.14 | 435 17.13 | 460 18.11 | 485 19.09 |
| Frame Stack (L) | 587 23.11 | 601 23.66 | 606 23.86 | 615 24.21 |
| Standover Height (M) | 725 28.54 | 726 28.58 | 725 28.54 | 725 28.54 |
Related Products
Big thanks to modern geometry; a slacker head angle, longer reach, and steeper seat make the Polygon Siskiu D5 XC Trail MTB unbelievably capable for riders looking to tackle XC…
Big thanks to modern geometry; a slacker head angle, longer reach, and steeper seat make the Polygon Siskiu D6 XC Trail MTB unbelievably capable for riders looking to tackle XC…
All-round XC trail bike that can handle everything from your fun local trail
Big thanks to modern geometry; a slacker head angle, longer reach, and steeper seat make the Polygon Siskiu DSE XC Trail MTB unbelievably capable for riders looking to tackle XC…
Created for pro cross-country racers climbing to seize a world-cup podium to racers who are enthusiastic about off road riding.
Created for pro cross-country racers climbing to seize a world-cup podium to racers who are enthusiastic about off road riding.
Created for pro cross-country racers climbing to seize a world-cup podium to racers who are enthusiastic about off road riding.
Designed for riders who want to ride on a wide variety of terrain.
Created to be versatile bikes for riders who are looking for a bike to commute to work during the weekdays.
Our all-time sorcerer — Cascade 2, born for you who are planning to go for recreational riding on the weekends and feel the mountains. The Cascade 2 MTB is built…
Created to be versatile bikes for riders who are looking for a bike to commute to work during the weekdays.
Created to be versatile bikes for riders who are looking for a bike to commute to work during the weekdays.
Our all-time sorcerer — Cascade 4, born for you who are planning to go for recreational riding on the weekends and feel the mountains. The Cascade 4 MTB is built…
Our all-time sorcerer — Cascade 5, born for you who are planning to go for recreational riding on the weekends and feel the mountains. The Cascade 5 MTB is built…
Created for riders who want a versatile mountain bike. Built with a lightweight and durable AL6 frame with modern geometry for a more comfortable leisure ride, the Premier 4 mountain…
FAQ
-
So, what’s the difference between Syncline DR and Syncline C?
First, the frame: DR is full-sus with modern geometry built for today’s gnarlier XC tracks. The setup is different too, and yes - it’s UDH-ready.
-
Why the names Syncline C and DR?
It’s in the name: “C” stands for Carbon XC/Trail, while “DR” means Dual-sus Race. Easy to remember, easy to get the vibe.
-
How about compared to the Siskiu D?
On paper the travel looks similar, but the ride intention is worlds apart. The DR is a pure-bred XC racer - full carbon and speed-focused. The Siskiu D leans more into trail fun, off-road exploring, and leisure rides. That’s why the geometry and spec are tuned differently.
-
Can I run a 36T chainring?
Yep, up to 36T no problem. You’ve got the freedom to pick the gear ratio that fits your riding style.
-
Is the Syncline DR efficient for climbing compared to a hardtail?
Yes. Even with rear suspension, the lightweight carbon frame and efficient single-pivot design keep it sharp on climbs, giving you traction without losing power transfer.
-
How much does it weigh?
DR9: 11.68 Kg (size M)
DR8: 12.9 Kg (size M)
DR6: 13.38 Kg (size M) -
What’s the travel and why?
110mm rear / 120mm front. Enough to handle modern XC courses (which are rougher and steeper than ever).
-
Can it fit two water bottles?
Yes!
