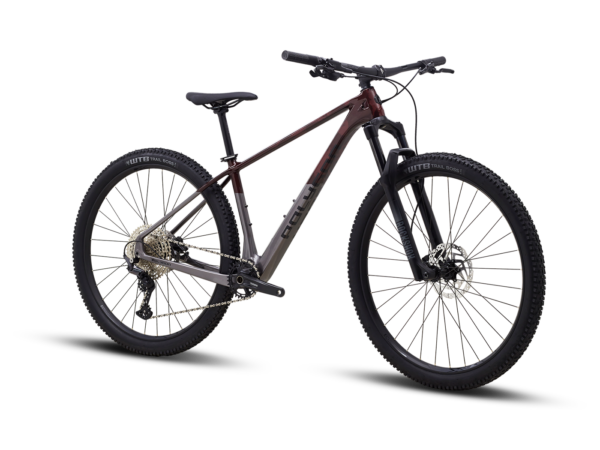

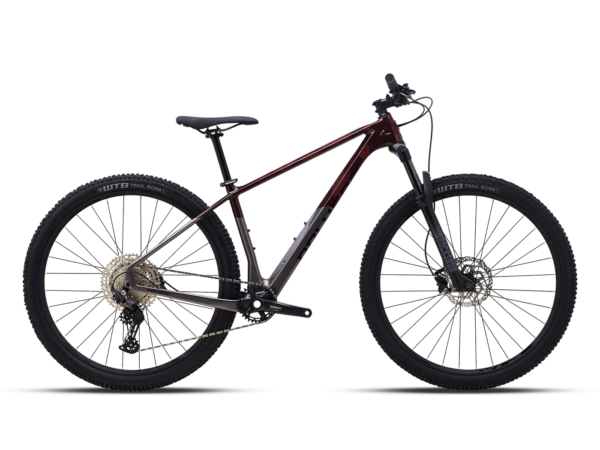

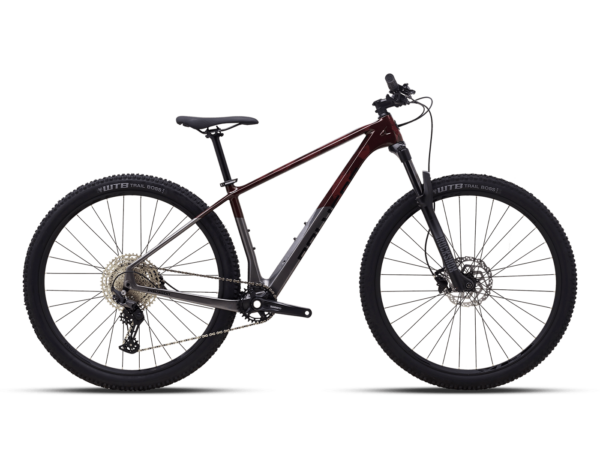

SYNCLINE C3
SYNCLINE C3 2022

-
502804
-
CROSS COUNTRY ?CROSS COUNTRY ?We understand how mesmerizing mountains are and everything in it; the scents through the wind, the rocky climbs and descents, and the singletracks. So we built you bikes that keep you rolling on cross country to technical tracks. Faster to feel the wind and smoother to beat trails. Are you ready to be mesmerized more? See more...
La cible de notre série SYNCLINE est axée 100% rendement grâce à un châssis carbone rigide et léger. Pur-sang Cross-Country, nos vélos vous permettrons de rouler entre douceur et agressivité sur chaque trace empruntée.
Specification
-
Frameset
FramesetForkRear Shock
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHub
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
A brief explanation of geometry is placed here. The geometry image below will stay / freeze.
S (27.5”) | M (27.5”) | M (29”) | L (29”) | XL (29”) | |
---|---|---|---|---|---|
Hauteur (cm) | 155-165 | 165-175 | 165-175 | 175-185 | 185-195 |
Seat Tube Length (A) | 380 14.96 | 420 16.54 | 420 16.54 | 460 18.11 | 500 19.69 |
Seat Tube Angle (B) | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 | 73 2.87 |
Effective Seat Tube Angle (C) | 75.3 2.96 | 75.3 2.96 | 75.3 2.96 | 75.3 2.96 | 75.3 2.96 |
Head Tube Length (D) | 100 3.94 | 120 4.72 | 100 3.94 | 120 4.72 | 140 5.51 |
Head Tube Angle (E) | 67 2.64 | 67 2.64 | 67 2.64 | 67 2.64 | 67 2.64 |
Effective Top Tube (F) | 569 22.4 | 594.6 23.41 | 597.7 23.53 | 621 24.45 | 649.15 25.56 |
Bb Height (G) | 308.5 12.15 | 308.5 12.15 | 307.5 12.11 | 307.5 12.11 | 307.5 12.11 |
Bb Offset (H) | 45 1.77 | 45 1.77 | 64 2.52 | 65 2.56 | 65 2.56 |
Chainstay Length (I) | 425 16.73 | 425 16.73 | 435 17.13 | 435 17.13 | 435 17.13 |
Wheelbase (J) | 1106.94 43.58 | 1134.8 44.68 | 1149.5 45.26 | 1176.9 46.33 | 1204.76 47.43 |
Frame Reach (K) | 410 16.14 | 430 16.93 | 430 16.93 | 450 17.72 | 470 18.5 |
Frame Stack (L) | 596.6 23.49 | 615 24.21 | 633.2 24.93 | 651.6 25.65 | 670 26.38 |
Standover Height (M) | 690.9 27.2 | 729.2 28.71 | 730.8 28.77 | 763.7 30.07 | 779.2 30.68 |
