CASCADE 4
CASCADE 4 2026
-
503441
-
LEISURE ?LEISURE ?It's all about the pleasure of riding around; exploring and comfortness. Here's for you who wants to spend days and holidays with little off-roads, climbs, and descents. So, cheers for life full of the joy of spring! See more...

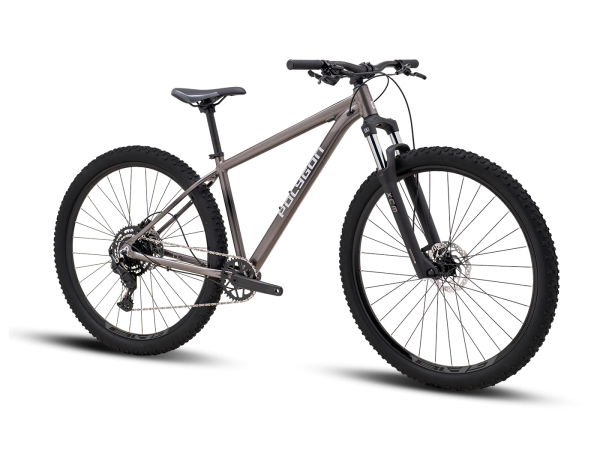

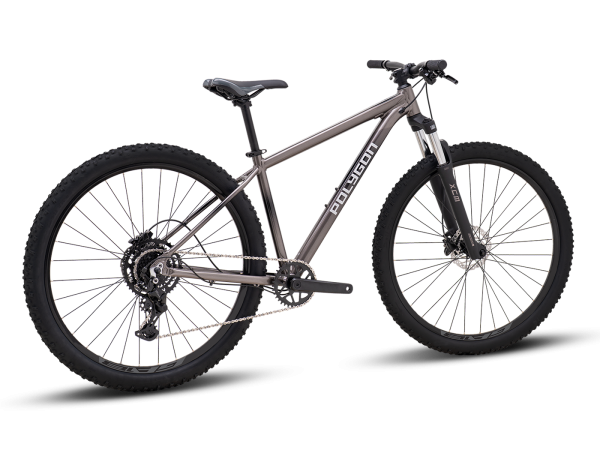

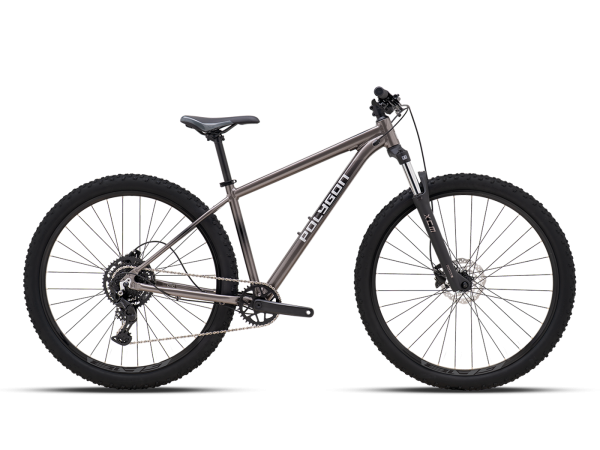

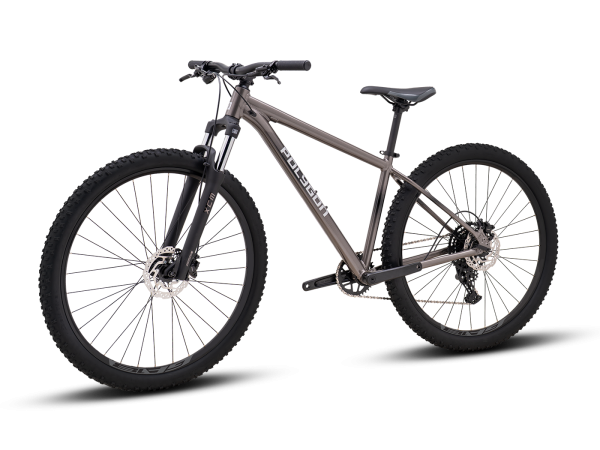

Our all-time sorcerer -- Cascade 4, born for you who are planning to go for recreational riding on the weekends and feel the mountains. The Cascade 4 VTT is built with a lightweight and durable AL6 frame with modern geometry for a more comfortable ride. The component spec includes: 27.5” wheels for less rolling resistance, a 100mm travel suspension fork to smooth out the bumps while riding down fire roads, and disc brakes to keep riders in control. Be ready to be enchanted by our sorcerer and start loving mountains even more.
Specification
-
Frameset
FramesetForkFrame ColorDecal Color
-
Drivetrain
ShifterCrankCassetteRear DerailleurBBChainPedal
-
Cockpit
SaddleSeatpostHandlebarHandlestemHeadset
-
Wheel & Tire
Wheel SetWheel SizeTireRimHubSpokes
-
Brake
Brake LeverBrake CaliperRotor
Geometry & Size
| XS (27.5") | S (27.5") | M (27.5") | L (27.5") | S (29") | M (29") | L (29") | |
|---|---|---|---|---|---|---|---|
| Hauteur (cm) | 145-155 | 155-165 | 165-175 | 175-185 | 155-165 | 165-175 | 175-185 |
| Seat Tube Length (A) | 360 14.17 | 390 15.35 | 430 16.93 | 460 18.11 | 390 15.35 | 430 16.93 | 460 18.11 |
| Seat Tube Angle (B) | 75 2.95 | 75 2.95 | 75 2.95 | 75 2.95 | 75 2.95 | 75 2.95 | 75 2.95 |
| Effective Seat Tube Angle (C) | 75 2.95 | 74 2.91 | 74 2.91 | 74 2.91 | 75 2.95 | 75 2.95 | 74 2.91 |
| Head Tube Length (D) | 110 4.33 | 115 4.53 | 120 4.72 | 125 4.92 | 90 3.54 | 95 3.74 | 100 3.94 |
| Head Tube Angle (E) | 68 2.68 | 67 2.64 | 68 2.68 | 68 2.68 | 67 2.64 | 68 2.68 | 68 2.68 |
| Effective Top Tube (F) | 538 21.18 | 561 22.09 | 582 22.91 | 603 23.74 | 566 22.28 | 585 23.03 | 604 23.78 |
| Bb Height (G) | 310 12.2 | 310 12.2 | 310 12.2 | 310 12.2 | 304 11.97 | 303 11.93 | 303 11.93 |
| Bb Offset (H) | -45 -1.77 | -45 -1.77 | -45 -1.77 | -45 -1.77 | -69 -2.72 | -69 -2.72 | -69 -2.72 |
| Chainstay Length (I) | 440 17.32 | 439 17.28 | 439 17.28 | 439 17.28 | 455 17.91 | 454 17.87 | 454 17.87 |
| Wheelbase (J) | 1085 42.72 | 1108 43.62 | 1129 44.45 | 1151 45.31 | 1122 44.17 | 1142 44.96 | 1161 45.71 |
| Frame Reach (K) | 380 14.96 | 400 15.75 | 420 16.54 | 440 17.32 | 400 15.75 | 420 16.54 | 440 17.32 |
| Frame Stack (L) | 596 23.46 | 601 23.66 | 606 23.86 | 610 24.02 | 620 24.41 | 624 24.57 | 629 24.76 |
| Standover Height (M) | 684 26.93 | 703 27.68 | 734 28.9 | 755 29.72 | 709 27.91 | 736 28.98 | 759 29.88 |
